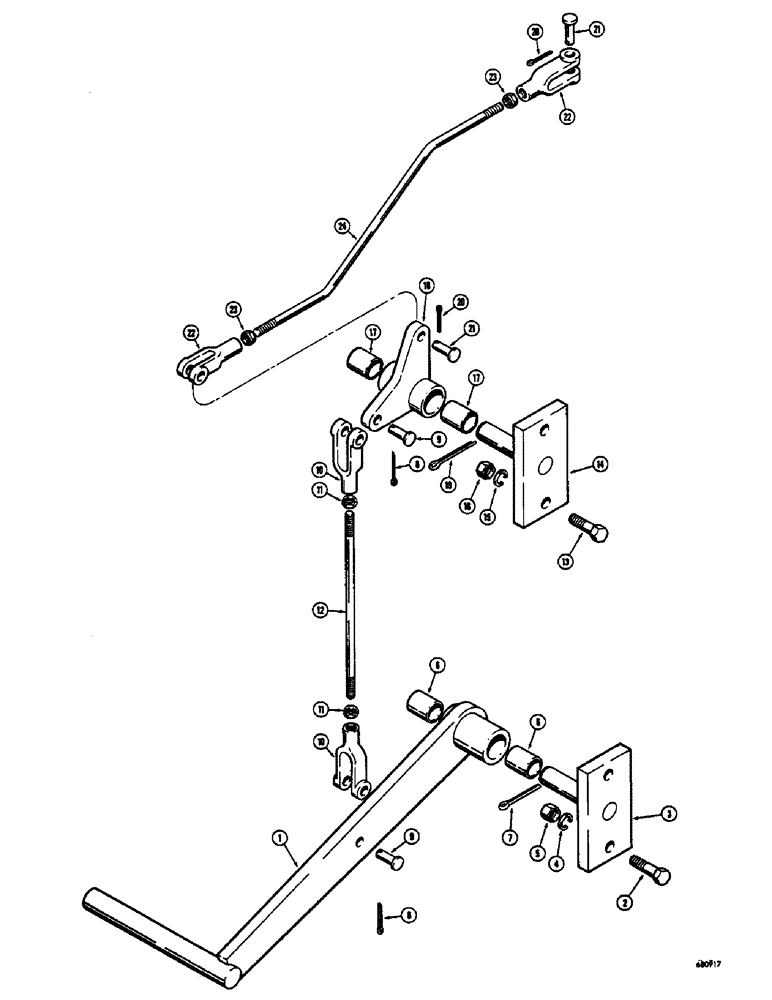

Запчасти Case 400 (010) - THROTTLE CONTROL LINKAGE (01) - ENGINE

1

D47292

PEDAL - engine speed control, foot throttle

1шт.

2

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

3

D47294

BRACKET AND SHAFT - foot throttle pivot

1шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

6

D45164

BUSHING - nylon type

2шт.

7

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

8

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

9

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

2шт.

10

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - rod end

2шт.

11

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex., jam (5/16" - 24 NF)

2шт.

12

D47296

ROD - control, foot, Serial Range: throttle-bellcrank

1шт.

13

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

14

D47294

BRACKET AND SHAFT - bellcrank pivot

1шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

17

D45164

BUSHING - nylon type

2шт.

18

D47295

BELLCRANK - throttle linkage

1шт.

19

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

20

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

21

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

2шт.

22

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - rod end

2шт.

23

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex., jam (5/16" - 24 NF)

2шт.

24

D47293

ROD - control, Serial Range: bellcrank-engine

1шт.
