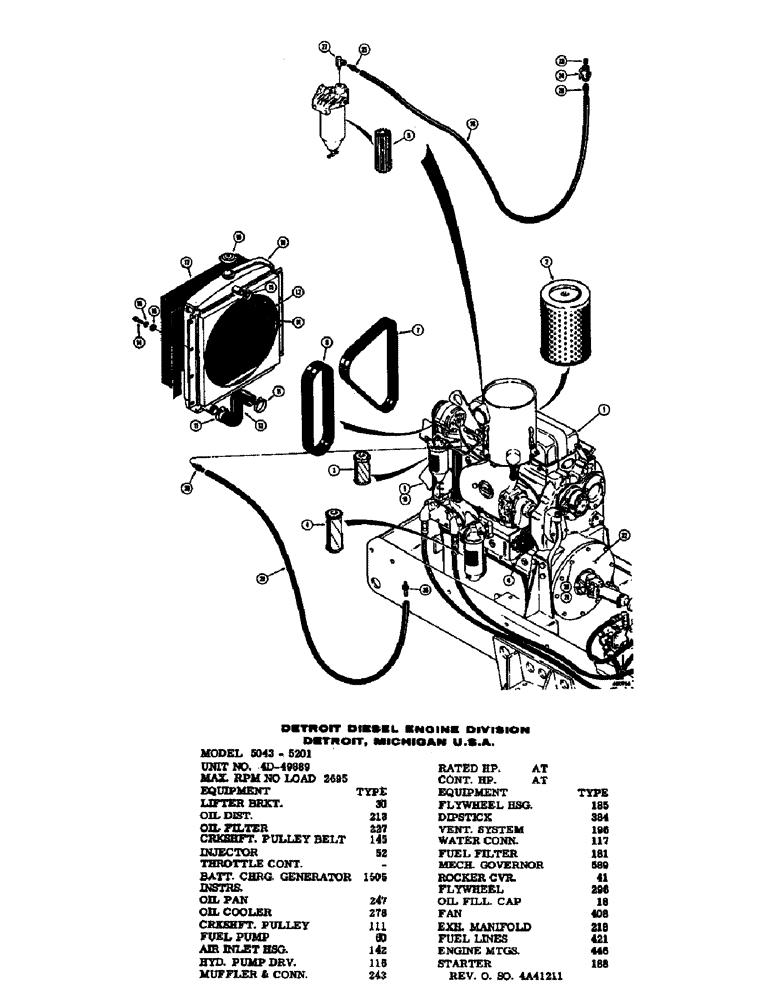

Запчасти Case 400 (008) - ENGINE AND RELATED PARTS, ENGINE, FAN AND RELATED PARTS (01) - ENGINE

1

REF

INSTRUCTION

ENGINE ASSEMBLY - complete, Detroit diesel (When engine parts other than those indented under this assembly are required see Detroit diesel parts book "In-line 53 Engine" for parts list), Includes: Ref. 2 - 9

1шт.

2

D46062

AIR CLEANER ELEMENT - engine, dry type

1шт.

3

A19579

ELEMENT

FILTER ELEMENT - engine fuel

1шт.

4

L31230

ELEMENT

FILTER ELEMENT - engine oil

1шт.

5

A19578

ELEMENT

STRAINER ELEMENT - engine fuel

1шт.

6

D45158

REGULATOR

- voltage, 12 volt

1шт.

7

D51451

BELT - fan

2шт.

8

D45153

BELT - water pump and alternator

2шт.

9

D47647

FAN - radiator cooling, pusher type (Standard)

1шт.

10

D45690

FAN - radiator cooling, suction type (Optional)

1шт.

11

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- radiator hose #28, 1.31/2.25 Type F Worm

4шт.

12

D45686

HOSE - radiator, top

1шт.

13

D45685

HOSE - radiator, bottom

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

15

92-6

LOCK WASHER,3/8"

8шт.

16

95-6

WASHER,3/8"

- standard wrot () 3/8"

8шт.

17

D47301

SCREEN - radiator, guard

1шт.

18

D45652

RADIATOR ASSEMBLY - engine cooling, Includes: Ref. 19

1шт.

19

D25826

CAP

- radiator, 7 P.S.I.

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

12шт.

21

92-6

LOCK WASHER,3/8"

12шт.

22

L12418

COVER - flywheel housing

1шт.

23

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - pipe, close (1/4" NPT x 7/8") fuel lines

1шт.

24

T10487

VALVE - fuel shut-off lines

1шт.

25

220-2

FITTING

- hose end (1/4" I.D. hose) fuel lines

2шт.

26

A21561

HOSE,0.25" ID x 25.00"

0.25" ID x 25.00' - Fuel from fuel tank (130" long) cut as required (25 ft. lengths) lines

1шт.

27

221-811

ELBOW - swivel, 90 degrees (1/4" NPT) fuel lines

1шт.

28

221-23

PLUG

FITTING - hose end (1/4" I.D. hose) fuel lines

1шт.

29

A21561

HOSE,0.25" ID x 25.00"

0.25" ID x 25.00' - Fuel return (120" long) cut as required (25 ft. lengths) lines

1шт.

30

220-2

FITTING

- hose end (1/4" I.D. hose) fuel lines

1шт.
