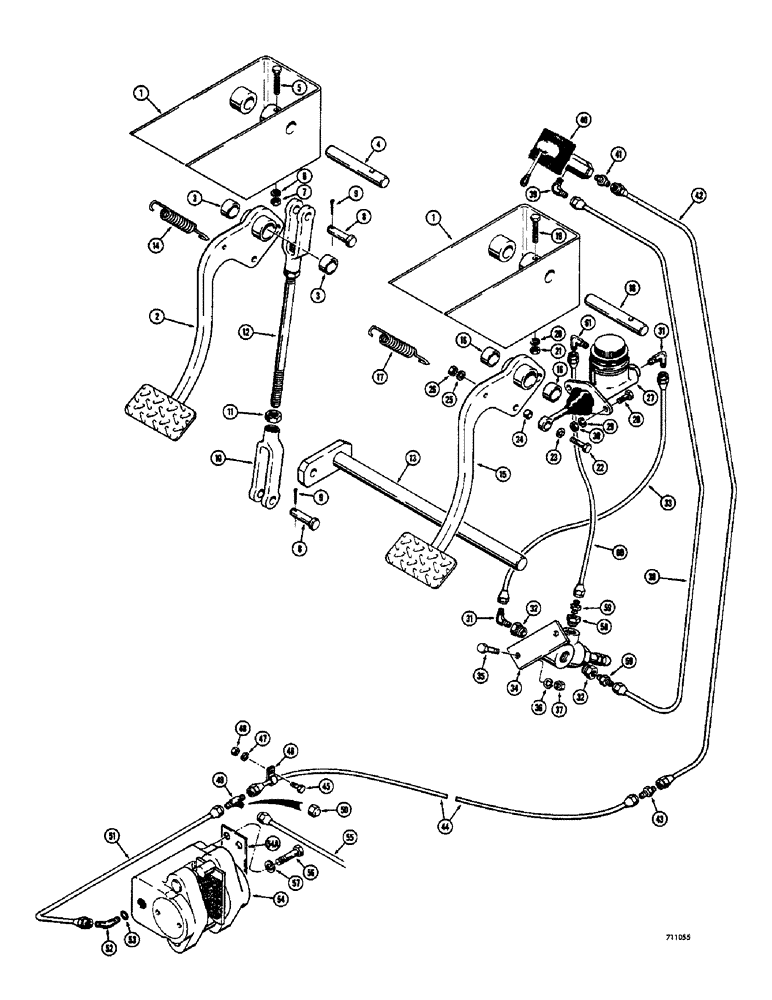

Запчасти Case 300C (126) - SYNCHROMESH TRANSMISSION, HYDRAULIC BRAKES, BRAKE PEDALS AND CLUTCH PEDAL, CLUTCH PEDAL LINKAGE (06) - POWER TRAIN

1

D50875

HOOD - engine (See Figure 192 for related parts)

1шт.

2

D50644

PEDAL - clutch

1шт.

3

D45164

BUSHING - clutch pedal

2шт.

4

D50929

PIN - clutch pivot

1шт.

5

13-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"-20 x 1 1/2", G5

1шт.

6

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

7

25-104

NUT,1/4"-20, G5

1шт.

8

141-7

CLEVIS PIN,5/8" x 1.610"

PIN - yoke (5/8")

2шт.

9

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

10

213-7

YOKE - rod end

2шт.

11

25-1110

NUT,5/8"-18, G5

- hex. (5/8" - 18 NF)

2шт.

12

D50645

ROD - clutch control

1шт.

13

D50273

SHAFT - clutch release (See Figure 76 for related parts)

1шт.

14

D45789

SPRING - clutch pedal return

1шт.

15

D50644

PEDAL - brake control, LINKAGE AND HYDRAULICS

1шт.

16

D45164

BUSHING - brake pedal linkage and hydraulics

2шт.

17

D45789

SPRING - return, brake pedal linkage and hydraulics

1шт.

18

D50929

SHAFT - brake pedal pivot, LINKAGE AND HYDRAULICS

1шт.

19

13-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"-20 x 1 1/2", G5, Brake pedal linkage and hydraulics

1шт.

20

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Brake pedal linkage and hydraulics 1/4"

1шт.

21

25-104

NUT,1/4"-20, G5

Brake pedal linkage and hydraulics 1/4"-20, G5

1шт.

22

14-724

SCREW,Hex, 7/16" - 20 x 1 1/2", Gr 5

HHCS - 7/16" - 24 NF x 1-1/2", BRAKE PEDAL LINKAGE AND HYDRAULICS

1шт.

23

95-7

WASHER,7/16"

- plain (), BRAKE PEDAL LINKAGE AND HYDRAULICS 7/16"

1шт.

24

D47291

ELECTRICAL WIRE

BUSHING - master cylinder push rod, BRAKE PEDAL LINKAGE AND HYDRAULICS

1шт.

25

92-7

LOCK WASHER,7/16"

BRAKE PEDAL LINKAGE AND HYDRAULICS 7/16"

1шт.

26

25-117

NUT,7/16"-20, G5

- hex. (7/16" - 24 NF), BRAKE PEDAL LINKAGE AND HYDRAULICS

1шт.

27

D51206

MASTER CYLINDER - brake (Parts list Figure 138), PEDAL LINKAGE AND HYDRAULICS

1шт.

28

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Brake pedal linkage and hydraulics Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

29

92-6

LOCK WASHER,3/8"

brake pedal linkage and hydraulics 3/8"

2шт.

30

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), BRAKE PEDAL LINKAGE AND HYDRAULICS

2шт.

31

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

male, BRAKE PEDAL LINKAGE AND HYDRAULICS 90º, 7/16"-20, 45º Fl x 1/8" NPT

2шт.

32

221-54

BUSHING

- reducing (1/2" NPT x 1/8" NPT), BRAKE PEDAL LINKAGE AND HYDRAULICS

2шт.

SHOULD READ 221-1054

1шт.

33

D51232

TUBE - master cylinder to relief valve (Bend to fit), BRAKE PEDAL LINKAGE AND HYDRAULICS

1шт.

34

D45165

VALVE - relief (Parts list Figure 118), BRAKE PEDAL LINKAGE AND HYDRAULICS

1шт.

35

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Brake pedal linkage and hydraulics Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

36

92-6

LOCK WASHER,3/8"

brake pedal linkage and hydraulics 3/8"

2шт.

37

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), BRAKE PEDAL LINKAGE AND HYDRAULICS

2шт.

38

D51234

TUBE - relief valve to brake lock, PEDAL LINKAGE AND HYDRAULICS

1шт.

39

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

male, BRAKE PEDAL LINKAGE AND HYDRAULICS 90º, 7/16"-20, 45º Fl x 1/8" NPT

1шт.

40

D51221

LOCK ASSY

MICO LOCK - brake locking (Parts list Figure 130), PEDAL LINKAGE AND HYDRAULICS

1шт.

41

222-802

HYD CONNECTOR,7/16"-20, 45 Degree Fl x 1/8" NPT

CONNECTOR - straight male, BRAKE PEDAL LINKAGE AND HYDRAULICS

1шт.

42

D51235

TUBE - brake lock to brake head (Front section), PEDAL LINKAGE AND HYDRAULICS

1шт.

43

218-381

FITTING

UNION - tube, front to center tube, BRAKE PEDAL LINKAGE AND HYDRAULICS

1шт.

SHOULD READ 218-431

1шт.

44

D51236

TUBE - brake lock to brake head (Center section), PEDAL LINKAGE AND HYDRAULICS

1шт.

45

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Brake pedal linkage and hydraulics Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

46

D45802

CLAMP - tube, BRAKE PEDAL LINKAGE AND HYDRAULICS

4шт.

47

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Brake pedal linkage and hydraulics 1/4"

4шт.

48

25-104

NUT,1/4"-20, G5

Brake pedal linkage and hydraulics 1/4"-20, G5

4шт.

49

222-735

TEE - male, BRAKE PEDAL LINKAGE AND HYDRAULICS

1шт.

50

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP NUT - 222-735 tee (If used), BRAKE PEDAL LINKAGE AND HYDRAULICS

1шт.

51

D51236

TUBE - brake lock to brake head (Rear section), PEDAL LINKAGE AND HYDRAULICS

1шт.

52

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degrees male, BRAKE PEDAL LINKAGE AND HYDRAULICS, Includes: Ref. 53

1-2шт.

53

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

SEAL - "O"ring, 218-5103 elbow, BRAKE PEDAL LINKAGE AND HYDRAULICS

1шт.

54

D45169

BRAKE HEAD - drive shaft, skidder (Disc type) Parts list Figure 130, PEDAL LINKAGE AND HYDRAULICS

1-2шт.

55a

D53591

SHIM - brake head, PEDAL LINKAGE AND HYDRAULICS

1шт.

55

D48327

TUBE - R.H. brake head to L.H. brake head (If dual brakes are used), PEDAL LINKAGE AND HYDRAULICS

1шт.

56

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2" - 20 NF x 1-3/4", BRAKE PEDAL LINKAGE AND HYDRAULICS

4-8шт.

57

92-8

LOCK WASHER,1/2"

Brake pedal linkage and hydraulics 1/2"

4-8шт.

58

221-54

BUSHING

- reducing (1/2" NPT x 1/8" NPT), BRAKE PEDAL LINKAGE AND HYDRAULICS

1шт.

59

222-802

HYD CONNECTOR,7/16"-20, 45 Degree Fl x 1/8" NPT

CONNECTOR - male, straight, BRAKE PEDAL LINKAGE AND HYDRAULICS

2шт.

60

D51232

TUBE - return, relief valve to master cylinder (Bend to fit), BRAKE PEDAL LINKAGE AND HYDRAULICS

1шт.

61

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

male, BRAKE PEDAL LINKAGE AND HYDRAULICS 90º, 7/16"-20, 45º Fl x 1/8" NPT

1шт.
