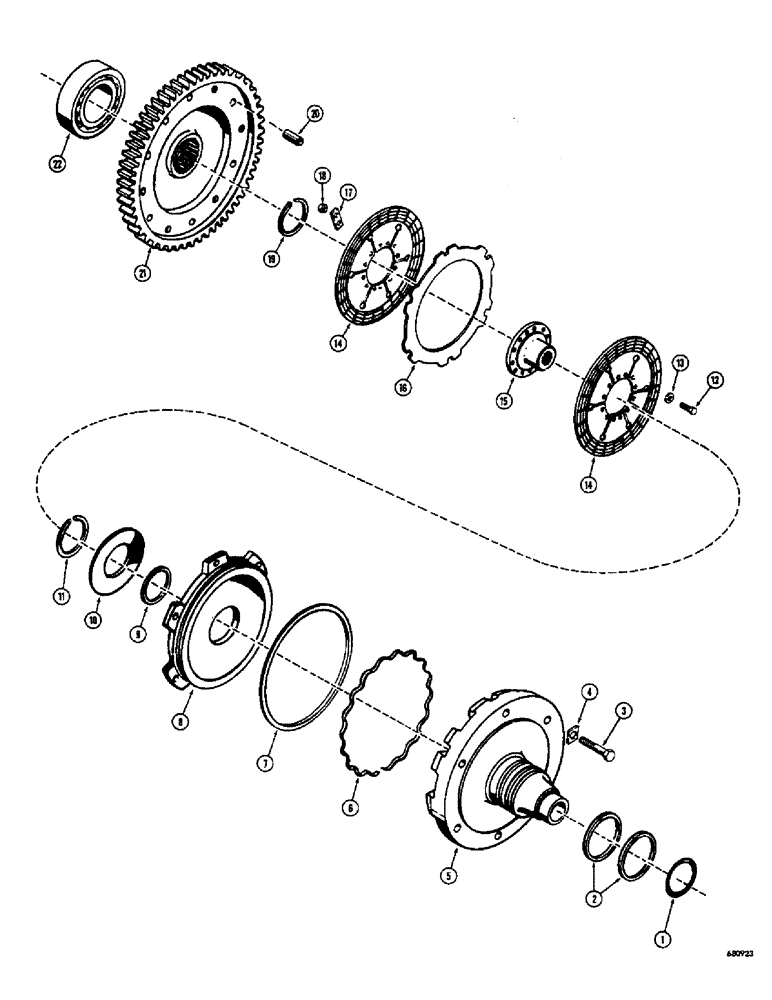

Запчасти Case 300C (112) - POWERSHIFT TRANSMISSION, HIGH RANGE CLUTCH AND TRANSFER GEAR (06) - POWER TRAIN

D50653

TRANSMISSION ASSEMBLY - power shift, complete (Used on 300 C models only), Includes: Ref. 1 - 22

1шт.

D50654

TRANSMISSION ASSEMBLY - power shift, complete (Used on 400 C models only), Includes: Ref. 1 - 22

1шт.

1

D47478

O-RING,2.355" ID

SEAL - "O"ring

1шт.

2

D47477

SEAL

- ring type, step joint

2шт.

3

14-844

BOLT,Hex, 1/2" - 20 x 2-3/4", Gr 5

HHCS - 1/2" - 20 NF x 2-3/4"

6шт.

4

D47476

LOCK

TAB - locking, high range clutch piston

6шт.

5

D47475

HOUSING - clutch piston, high range

1шт.

L31079

SEAL KIT

AND EXPANDER KIT - high range clutch, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

EXPANDER - high range clutch seal

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - high range clutch piston

1шт.

8

D47474

PISTON

- high range clutch

1шт.

9

L31017

RING

SEAL - ring type, high clutch piston

1шт.

10

L31020

SPRING

- washer type, piston return

1шт.

11

L31021

RING

SNAP RING - external type

1шт.

12

121-101

BOLT,Hex, Lock, 5/16"-24 x 7/8"

HHCS - 5/16" - 24 NF x 7/8"

12шт.

13

L31167

WASHER

- flat, special

12шт.

14

L31090

PLATE

- clutch, high range

2шт.

15

D47473

HUB - high range clutch

1шт.

16

L34015

PLATE

- clutch, external spline (When stock is exhausted, order L33958 plate for service)

1шт.

16

L33958

PLATE

- clutch, external spline

1шт.

17

L31128

PLATE

- locking, clutch plate

6шт.

18

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

12шт.

19

A12663

RING

SNAP RING - rear retaining

1шт.

D49396

GEAR

ASSEMBLY - transfer drive, Includes: Ref. 20 and 21

1шт.

20

L31036

PIN

- clutch plate guide

6шт.

21

NSS

NOT SOLD SEPARAT

GEAR - transfer drive

1шт.

22

D47575

BALL BEARING

BEARING - ball type

1шт.
