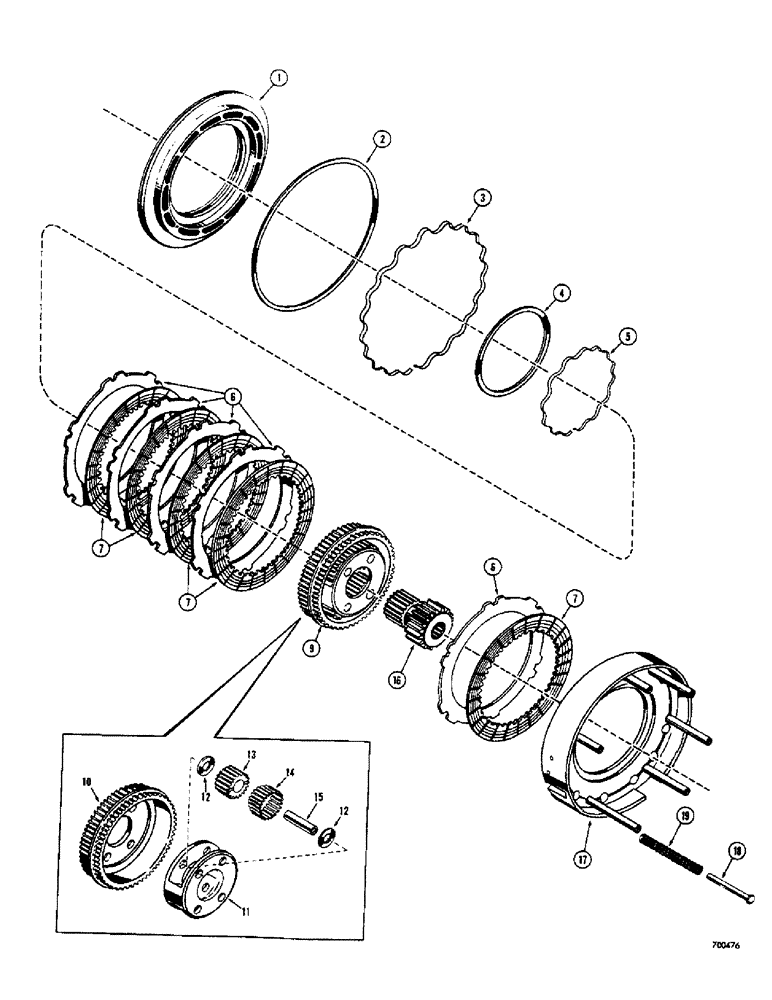

Запчасти Case 300C (110) - POWERSHIFT TRANSMISSION, REVERSE CLUTCH AND PLANETARY (06) - POWER TRAIN

D50653

TRANSMISSION ASSEMBLY - power shift, complete (Used on 300 C models only), Includes: Ref. 1 - 19

1шт.

D50654

TRANSMISSION ASSEMBLY - power shift, complete (Used on 400 C models only), Includes: Ref. 1 - 19

1шт.

1

L30353

PISTON - reverse clutch

1шт.

A40021

KIT

SEAL AND EXPANDER KIT - reverse clutch, large, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - ring type, large

1шт.

3

NSS

NOT SOLD SEPARAT

EXPANDER - reverse, clutch seal, large

1шт.

A40023

SEAL

AND EXPANDER KIT - reverse clutch, small, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - ring type, small

1шт.

5

NSS

NOT SOLD SEPARAT

EXPANDER - reverse clutch seal, small

1шт.

6

L34015

PLATE

- clutch, external spline (When stock is exhausted, order L33958 plate for service)

5шт.

6

L33958

PLATE

- clutch, external spline

5шт.

7

A19993

PLATE

- clutch, internal spline

5шт.

9

L33941

CARRIER

ASSEMBLY - reverse clutch planetary (When stock is exhausted, order L33971 carrier assembly for service)

1шт.

9

L33971

CARRIER

ASSEMBLY - reverse clutch planetary, Includes: Ref. 10 - 15

1шт.

10

L33942

HUB - reverse clutch planetary (Used with L33941 carrier assembly only)

1шт.

10

L33972

CARRIER

HUB - reverse clutch planetary (Used with L33971 carrier assembly only)

1шт.

11

NSS

NOT SOLD SEPARAT

CARRIER - reverse clutch planetary

1шт.

12

A12700

WASHER

- thrust

8шт.

13

A16369

PINION

SET - planetary, matched set of 4

1шт.

14

A12659

NEEDLE

ROLLER - planetary pinion

88шт.

15

A12705

SPINDLE

- pinion

4шт.

16

L32404

GEAR

- sun, forward and reverse clutch

1шт.

17

D47467

ANCHOR

AND PIN ASSEMBLY - forward and reverse clutch

1шт.

18

D47468

PIN

- spring guide

12шт.

19

A55806

SPRING

- clutch piston return

12шт.
