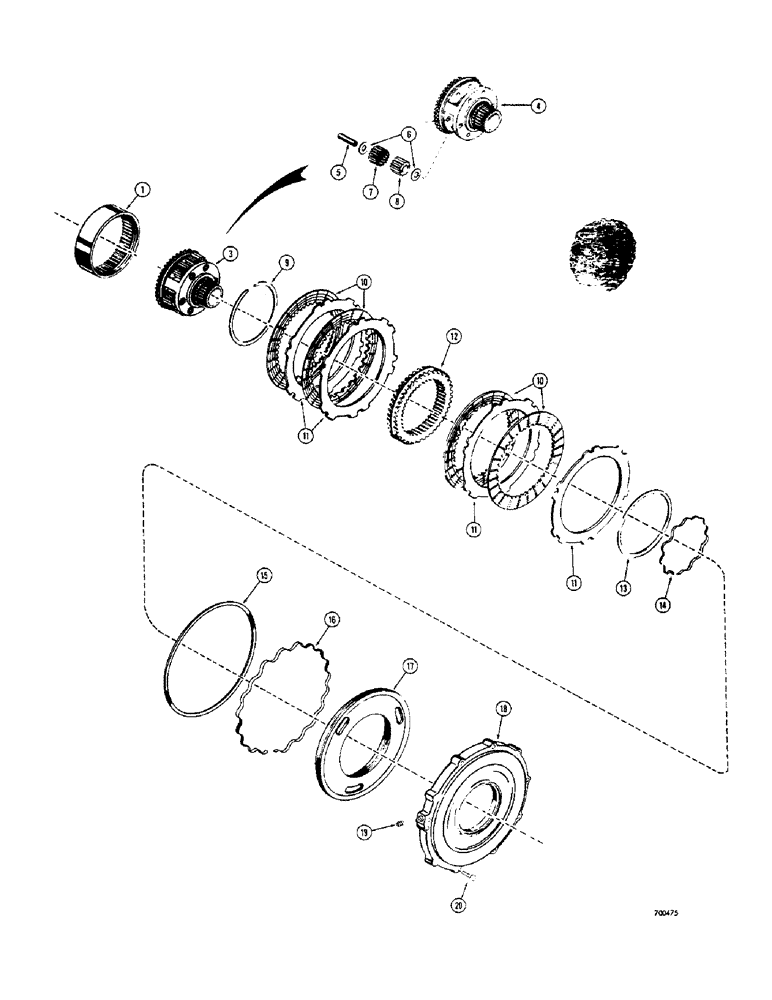

Запчасти Case 300C (108) - POWERSHIFT TRANSMISSION, FORWARD CLUTCH AND PLANETARY (06) - POWER TRAIN

D50653

TRANSMISSION ASSEMBLY - power shift, complete (Used on 300 C models only), Includes: Ref. 1 - 20

1шт.

D50654

TRANSMISSION ASSEMBLY - power shift, complete (Used on 400 C models only), Includes: Ref. 1 - 20

1шт.

1

A12712

GEAR

- reverse ring

1шт.

3

L32405

CARRIER

ASSEMBLY - forward clutch planetary (When stock is exhausted, order L35533 carrier assembly for service)

1шт.

3

L35533

CARRIER

ASSEMBLY - forward clutch planetary, Includes: Ref. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

CARRIER - forward clutch planetary

1шт.

5

A12705

SPINDLE

- pinion

4шт.

6

A12700

WASHER

- thrust

8шт.

7

A12659

NEEDLE

ROLLER - planetary pinion

88шт.

8

A16369

PINION

SET - planetary, matched set of 4

1шт.

9

A12687

RING

SNAP RING - retaining

1шт.

10

A19993

PLATE

- clutch, internal spline

4шт.

11

L34015

PLATE

- clutch, external spline (When stock is exhausted, order L33958 plate for service)

4шт.

12

L33976

GEAR

- ring, forward clutch (When stock is exhausted, order L35535 gear for service)

1шт.

12

L35535

GEAR

- ring, forward clutch

1шт.

A40023

SEAL

AND EXPANDER KIT - forward clutch, small, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - ring type, small

1шт.

14

NSS

NOT SOLD SEPARAT

EXPANDER - forward clutch seal, small

1шт.

A40021

KIT

SEAL AND EXPANDER KIT - forward clutch, large, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - ring type, large

1шт.

16

NSS

NOT SOLD SEPARAT

EXPANDER - forward clutch seal, large

1шт.

17

L30354

PISTON ASSY.

PISTON - forward clutch

1шт.

18

D47471

HOUSING

- forward clutch piston

1шт.

19

221-31

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - pipe, square socket head (1/4" NPT)

1шт.

20

121-207

SCREW,Lock Place, Hex, 3/8" - 16 x 1 1/2", Gr 8

HHCS - 3/8" - 16 NC x 1-1/2"

10шт.
