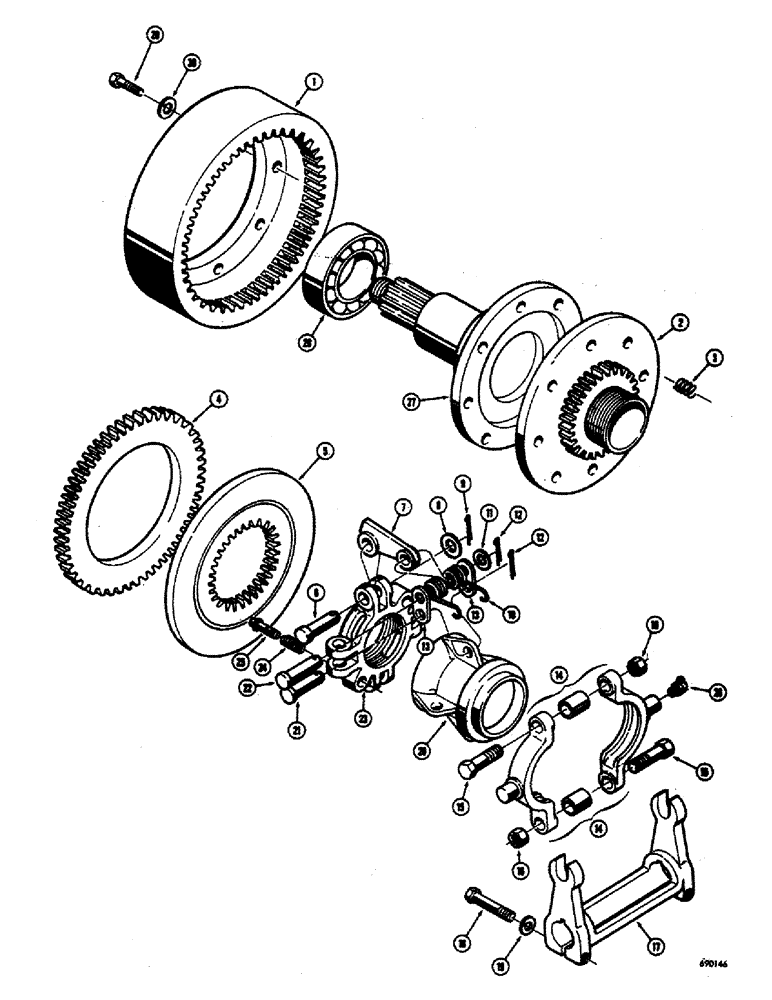

Запчасти Case 300 (190) - DRIVE SHAFT CLUTCH, SWEED WINCH (18) - ATTACHMENT ACCESSORIES

D48127

CLUTCH ASSEMBLY - drive shaft (Not illustrated assembled), Includes: Ref. 1 - 25

1шт.

1

D48338

FLANGE - spider

1шт.

2

D48339

HUB

- clutch

1шт.

3

F14639

DETENT

SPRING - release

6шт.

4

D48340

PLATE

- driving

1шт.

5

A40198

PLATE ASSY.

PLATE - floating

1шт.

6

A40254

PIN

- lever

4шт.

7

A31134

LEVER

- finger

4шт.

8

D48341

WASHER

- special, A40254 pin

4шт.

9

132-66

COTTER PIN

PIN - cotter, 5/32" dia. x 5/8"

4шт.

10

D48343

SPRING - finger

4шт.

11

195-2026

WASHER,.328" x 5/8" x .065"

- special, D48344 pin

4шт.

12

138-44

LOCK PIN,3/32" x 15/16", Slotted

PIN - cotter, 1/8" dia. x 1/2"

8шт.

13

A31137

DRAG LINK

LINK - lever

8шт.

A31140

COLLAR

ASSEMBLY - sleeve, Includes: Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

COLLAR - sleeve

1шт.

15

O7129A

BOLT - special, collar assembly

2шт.

16

230-4616

LOCK NUT,3/8"-24, GA

NUT - hex., lock (3/8" - 24 NF)

2шт.

B50820

FORK

YOKE ASSEMBLY - clutch throw out, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

YOKE - clutch throw out

1шт.

18

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

A10445

SLEEVE - sliding

1шт.

21

A40192

AXLE PIN,8mm OD x 26.16mm L

PIN - lever link, outside

4шт.

22

D48344

PIN - lever link, inside

4шт.

23

F3160

YOKE - adjusting

1шт.

24

A40197

SPRING

- adjusting lock pin

1шт.

25

A42077

PIN

- adjusting lock

1шт.

26

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

27

D48128

FLANGE AND SHAFT - input

1шт.

28

D46527

BEARING, BALL

BEARING - ball type

1шт.

29

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS - 3/8" - 24 NF x 1-1/4"

8шт.

30

92-6

LOCK WASHER,3/8"

8шт.
