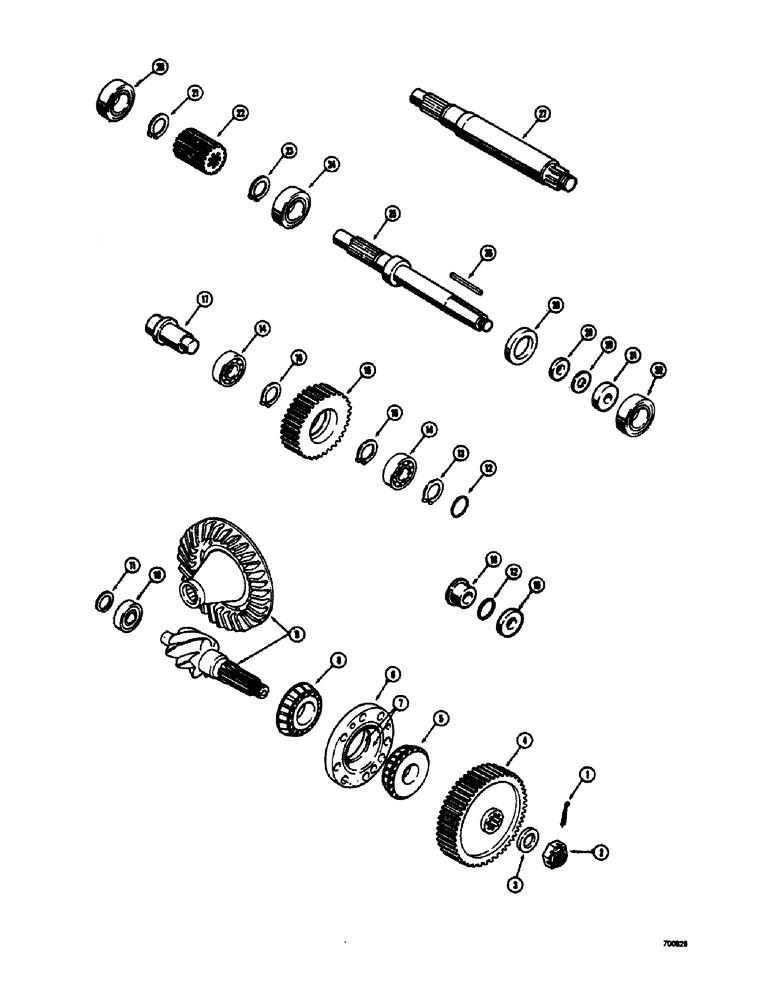

Запчасти Case 300 (184) - GEARS AND SHAFTS, SWEED WINCH (18) - ATTACHMENT ACCESSORIES

1

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

2

D46524

NUT - hex., castle (Special)

1шт.

3

D48148

SPACER - gear

1шт.

4

D46520

GEAR - pinion drive (52 tooth)

1шт.

5

A12950

ROLLER BEARING,1.75" ID x 1.0594"

BEARING - tapered roller type

1шт.

6

D46522

HOUSING - bearing, Includes: Ref. 7

1шт.

7

A12949

BEARING CUP

CUP - housing

2шт.

8

A9841

ROLLER BEARING,1.875" ID x 1.0594"

BEARING - tapered roller type

1шт.

9

D46521

GEAR SET - bevel and pinion

1шт.

10

D46533

KIT

BEARING - roller type

1шт.

11

A8218

SNAP RING,#118, Ext

Ring, Snap, , bearing #118, Ext

1шт.

12

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

SEAL - "O" ring

3шт.

13

A7147

SNAP RING,#177, Ext

Ring, Snap, , idler gear bearing #177, Ext

2шт.

14

G13075

BEARING, BALL

BEARING - ball type

4шт.

15

D48149

GEAR - idler

2шт.

16

D38743

SNAP RING,3.00", Int, #300

gland, inside gear 3.00", Int, #300

4шт.

17

D48150

SHAFT - idler

2шт.

18

D48154

PLUG - front cover

1шт.

19

D48155

WASHER - special

1шт.

20

D46528

BEARING - ball type

1шт.

21

R13338

SNAP RING,#150, Ext

Ring, Snap, , input gear #150, Ext

1шт.

22

D48153

GEAR - input

1шт.

23

A7147

SNAP RING,#177, Ext

Ring, Snap, , D46527 bearing #177, Ext

1шт.

24

D46527

BEARING, BALL

BEARING - ball type

1шт.

25

D48151

SHAFT - input (Used on models with external clutch only)

1шт.

26

D46564

KEY - D48151 shaft

1шт.

27

D48152

SHAFT - input (Used on models without external clutch only)

1шт.

28

D46486

SEAL - input shaft

1шт.

29

192-307

LOCK WASHER,Type W-07

WASHER - special (Used with D48151 shaft only)

1шт.

30

D48346

NUT

- special (Used with D48151 shaft only)

1шт.

31

A42075

BEARING ASSY,0.9839" ID x 2.0472" OD x 0.5906"

BEARING - ball type (Used with D48151 shaft only)

1шт.

32

D46527

BEARING, BALL

BEARING - ball type, front

1шт.
