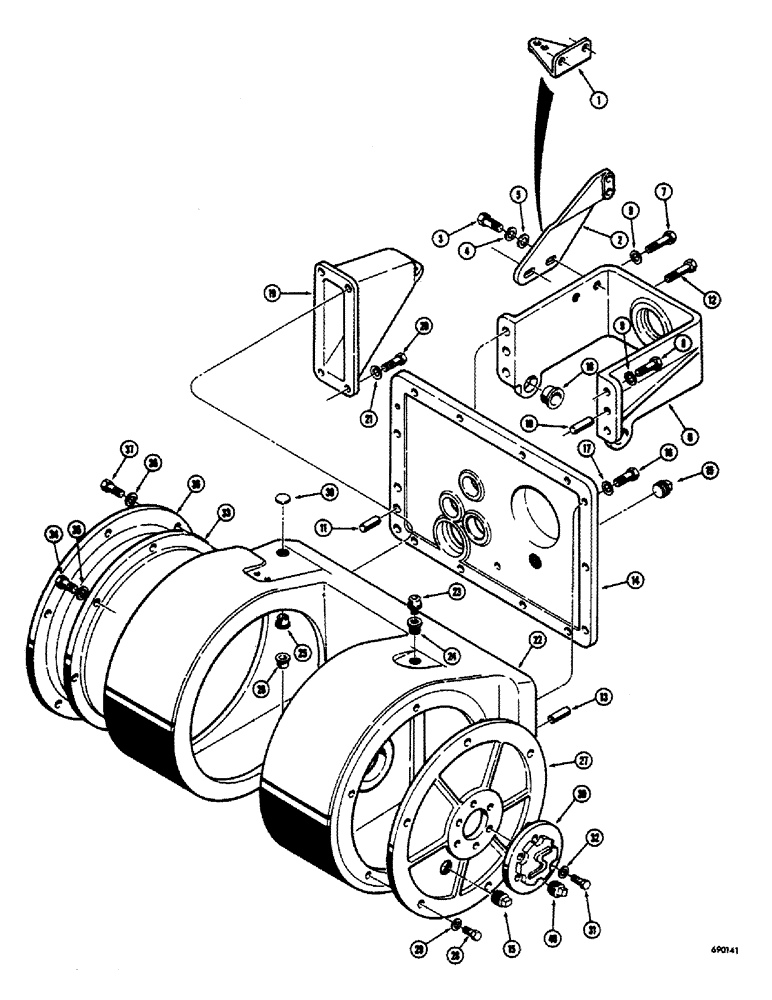

Запчасти Case 300 (180) - WINCH HOUSING AND COVERS, SWEED WINCH (18) - ATTACHMENT ACCESSORIES

1

D48139

BRACKET - clutch control cable (Used on winches not having external drive shaft clutch)

1шт.

2

D48129

BRACKET - clutch control cable (Used on winches with external drive shaft clutch)

1шт.

3

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

2шт.

4

92-7

LOCK WASHER,7/16"

2шт.

5

95-7

WASHER,7/16"

- standard wrot () 7/16"

2шт.

6

D48138

BRACKET - clutch

1шт.

7

13-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

1шт.

8

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

2шт.

9

92-7

LOCK WASHER,7/16"

3шт.

10

D48142

BOTTOM

DOWEL - 1/2" dia. x 1"

1шт.

11

D48141

DOWEL - 1/2" dia. x 2"

1шт.

12

113-326

HHCS - 7/16" - 14 NC x 2" (Self locking)

1шт.

13

70205

PIN

DOWEL - 1/2" dia. x 1-1/2"

1шт.

14

D48136

COVER - winch, front

1шт.

15

221-15

PLUG,Sq Hd, 3/4"-14

- sq. hd. (3/4" NPT)

2шт.

16

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

14шт.

17

92-7

LOCK WASHER,7/16"

14шт.

18

D46493

BUSHING - clutch shaft (Used on winches with external drive shaft clutch only)

2шт.

19

D48137

BRACKET - brake control

1шт.

20

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

4шт.

21

92-7

LOCK WASHER,7/16"

4шт.

22

D48132

HOUSING - winch

1шт.

23

D40582

X

FITTING - vent type, located on front cover on some winches

1шт.

24

221-57

REDUCING BUSHING - pipe, 3/4" NPT x 1/8" NPT (If used)

1шт.

25

D46493

BUSHING - internal clutch shaft, top

1шт.

26

D46492

BUSHING - internal clutch shaft, bottom

1шт.

27

D48133

COVER - gear

1шт.

28

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

6шт.

29

92-7

LOCK WASHER,7/16"

6шт.

30

D48146

CAP - gear cover

1шт.

31

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

6шт.

32

92-7

LOCK WASHER,7/16"

6шт.

33

D48135

CARRIER - spool

1шт.

34

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

6шт.

35

92-7

LOCK WASHER,7/16"

6шт.

36

D48134

COVER - brake

1шт.

37

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

6шт.

38

92-7

LOCK WASHER,7/16"

6шт.

39

41-20

PLUG,Exp, 1 1/4"

- expansion type, 1-1/4" (If used)

1шт.

40

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square head (1/2" NPT) Drain

1шт.
