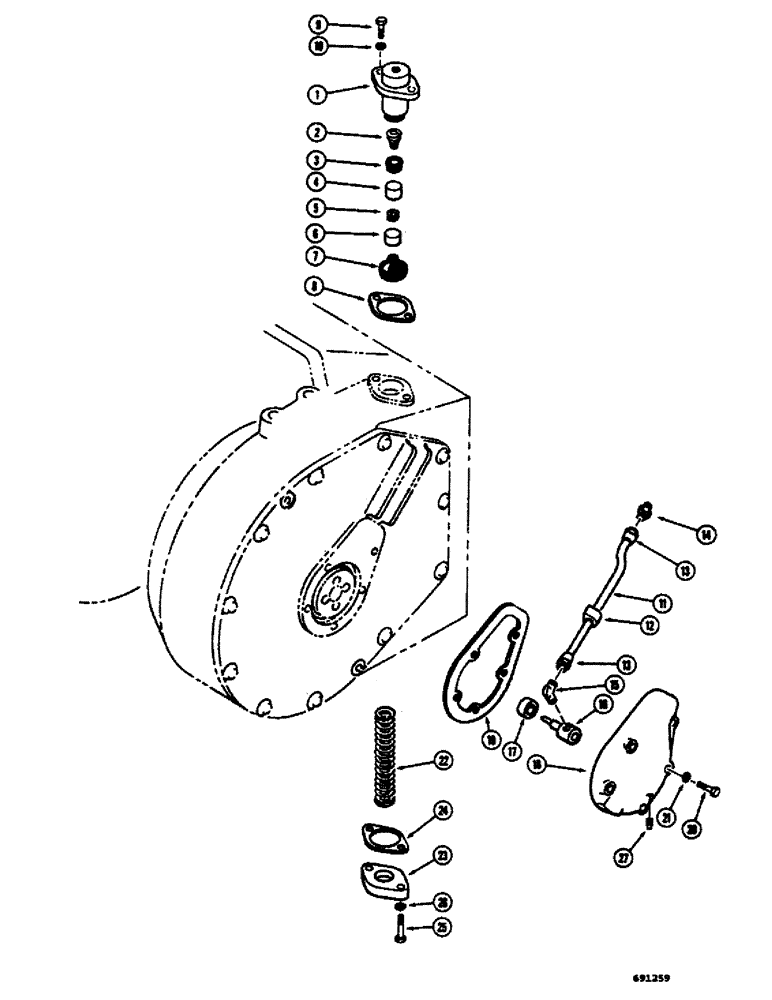

Запчасти Case 300 (170) - BRAKE CYLINDER AND TUBE, GEARMATIC WINCH (18) - ATTACHMENT ACCESSORIES

D37962

CYLINDER

ASSEMBLY - brake, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

CYLINDER - brake

1шт.

2

D37893

SPRING

- cap

1шт.

Available in D46763 repair kit.

1шт.

3

D37876

CUP

"U" CUP - piston

1шт.

Available in D46763 repair kit.

1шт.

4

D37877

PISTON

- primary

1шт.

Available in D46763 repair kit.

1шт.

5

D37878

SPRING

- piston

1шт.

Available in D46763 repair kit.

1шт.

6

D37879

PISTON

- push rod

1шт.

Available in D46763 repair kit.

1шт.

7

D37884

BOOT

- brake cylinder

1шт.

Available in D46763 repair kit.

1шт.

8

D37874

GASKET

- brake cylinder

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

D38181

TUBE ASSEMBLY - brake cylinder, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

TUBE - copper

1шт.

12

D37906

GROMMET

- rubber

1шт.

13

218-301

NUT - tube (1/4")

2шт.

14

222-712

FITTING

ADAPTER

1шт.

15

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

1шт.

16

D38180

TUBE

- hydraulic

1шт.

17

D38346

BALL BEARING,10 mm ID x 30 mm OD x 9 mm

BEARING - ball

1шт.

18

D38182

CAP - end

1шт.

19

D38176

GASKET - cap, end

1шт.

20

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

5шт.

21

92-7

LOCK WASHER,7/16"

5шт.

22

D37896

SPRING

- brake

1шт.

23

D37895

CAP

- spring

1шт.

24

D37874

GASKET

- brake cyl.

1шт.

25

D38200

HHCS - special, 7/16" - 14 NC x 2-1/2"

2шт.

26

92-7

LOCK WASHER,7/16"

2шт.

27

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, sq. hd. (1/8" NPT) If used

1шт.
