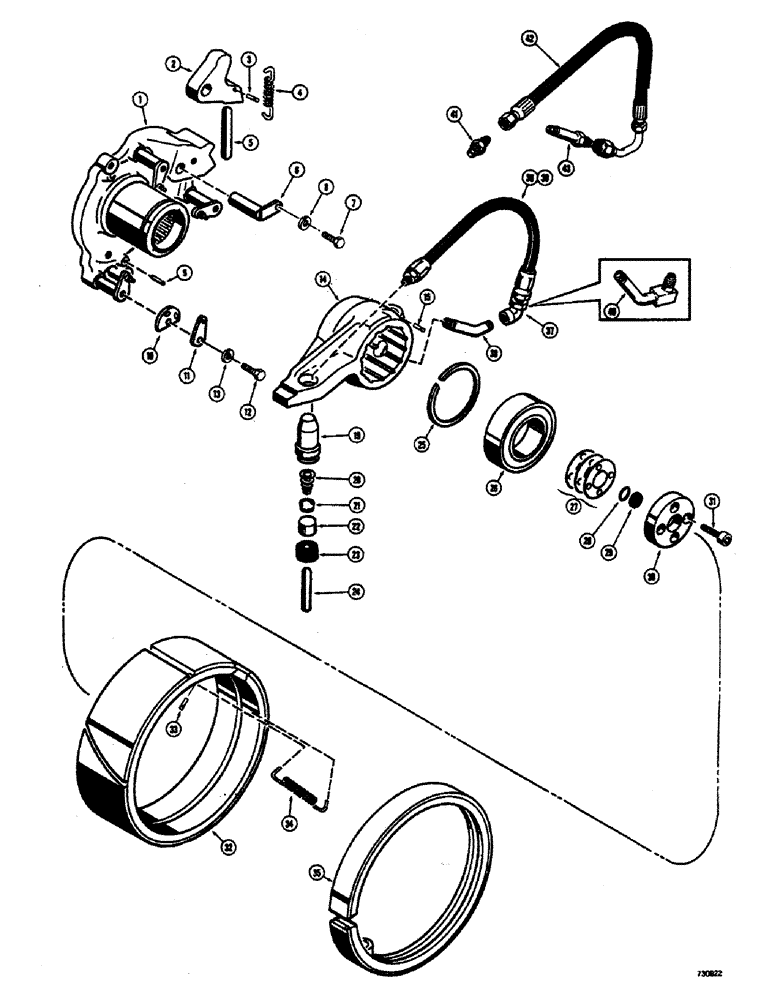

Запчасти Case 300 (167A) - CLUTCH ASSEMBLY, GEARMATIC WINCH, EARLY PRODUCTION, INTERMEDIATE PRODUCTION, LATE PRODUCTION (18) - ATTACHMENT ACCESSORIES

36

D38194

HOSE

- clutch

1шт.

37

222-851

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT, Fem

- 90 degrees (Used with D40601 nipple only)

1шт.

38

D40601

NIPPLE - pipe, bent (When stock is exhausted, use R24122 hose and fitting kit for service)

1шт.

39

D38194

HOSE

- clutch, intermediate production

1шт.

40

D48849

FITTING - specail (When stock is exhausted, use R24122 hose and fitting kit for service) intermediate production

1шт.

R24122

HOSE

KIT - hose and fitting, clutch, late production, Includes: Ref. 41 - 43

1шт.

41

R24126

CONNECTOR, ELEC

CONNECTOR - 1/8" NPT x 1/4" tube at cylinder, late production

1шт.

42

R24124

HOSE

- to clutch cylinder, late production

1шт.

43

R24125

FITTING

- clutch hub, late production

1шт.
