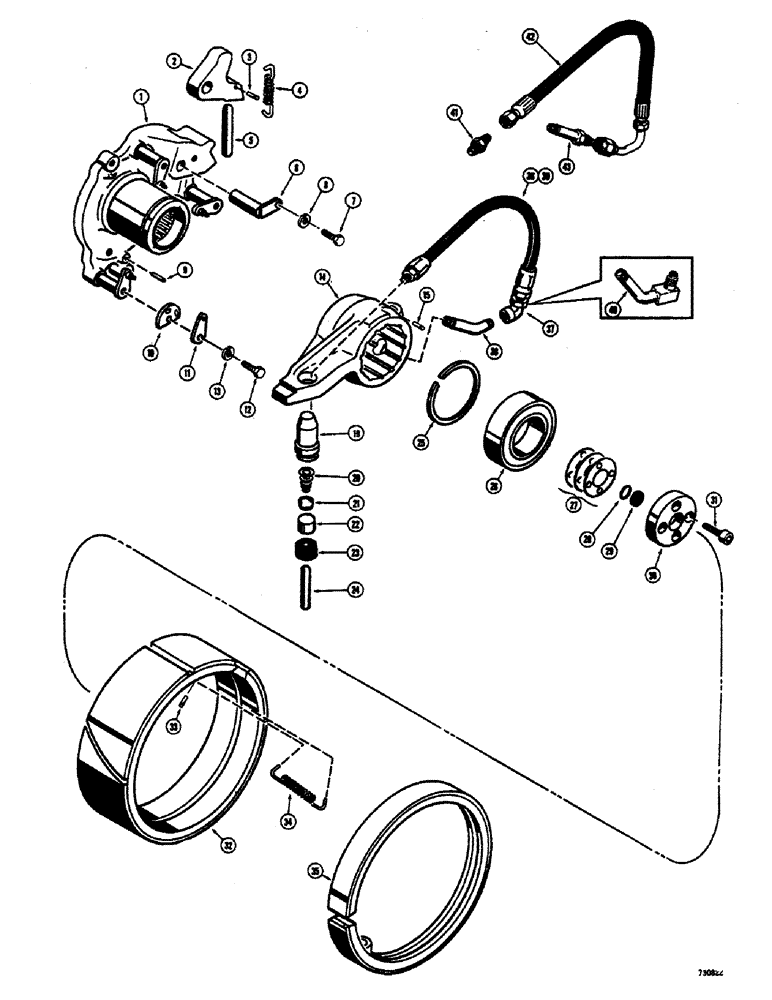

Запчасти Case 300 (166) - CLUTCH ASSEMBLY, GEARMATIC WINCH (18) - ATTACHMENT ACCESSORIES

1

D38170

HUB

- clutch

1шт.

2

D42861

LEVER

ARM - lever, Includes: Ref. 3

1шт.

3

135-1145

PIN - spring retaining

1шт.

4

D42858

SPRING

- lever arm

1шт.

5

D38199

PUSH ROD

ROD - push, secondary

1шт.

6

D38184

PIN

- pivot

1шт.

7

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

1шт.

8

92-6

LOCK WASHER,3/8"

1шт.

9

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

3шт.

10

D37854

CAM

- adjusting (Used before Winch SN 19-8421)

6шт.

10

R24240

CAM

- adjusting (Used after Winch SN 19-8421 as production item or as service replacement on prior machines having original equipment clutch bands replaced by R24239 or R24238 bands)

6шт.

11

D37855

PLATE

- lock

6шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

13

92-6

LOCK WASHER,3/8"

6шт.

14

D42860

LEVER

- clutch

1шт.

15

135-1145

PIN - spring retaining

1шт.

D37963

CYLINDER

ASSEMBLY - clutch, Includes: Ref. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

CYLINDER - clutch

1шт.

20

D37893

SPRING

1шт.

21

D37892

CUP

SEAL - "U" cup

1шт.

22

D37891

PISTON

1шт.

23

D37889

BOOT

1шт.

24

D38193

ROD

- push, clutch

1шт.

25

D38220

RING, SNAP

RING - snap

1шт.

26

D38347

BEARING, BALL,80 mm ID x 140 mm OD x 26 mm

BEARING - ball

1шт.

27

D38178

SHIM SET

1шт.

28

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

29

D37922

SEAL

- "U" cup

1шт.

30

D38179

CAP

- gland

1шт.

31

62-620

HEX SOC SCREW,3/8"-24 x 1 1/4"

SHCS - 3/8" - 24 NF x 1-1/4"

4шт.

32

D42859

BAND

- clutch, secondary (.148" to .155" wide grooves) Used before winch SN 19-8421 (When stock is exhausted, use R24239 band and (3) R24240 adjusting cams for service), Includes: Ref. 33

1шт.

32

R24239

BAND

- clutch, secondary (.200" to .210" wide grooves) Used on winch SN 19-8421 and after as production item and as service replacement on prior models, Includes: Ref. 33

1шт.

33

135-1145

PIN - spring retaining (If used)

2шт.

34

D42858

SPRING

- clutch (If used)

1шт.

35

D38173

BAND

- clutch, primary (.148" to .155" wide groove) Used before winch SN 19-8421 (When stock is exhausted, use R24238 band and (3) R24240 adjusting cams for service)

1шт.

35

R24238

BAND

- clutch, primary (.200" to .210" wide groove) Used on winch SN 19-8421 and after as production item and as service replacement on prior models

1шт.
