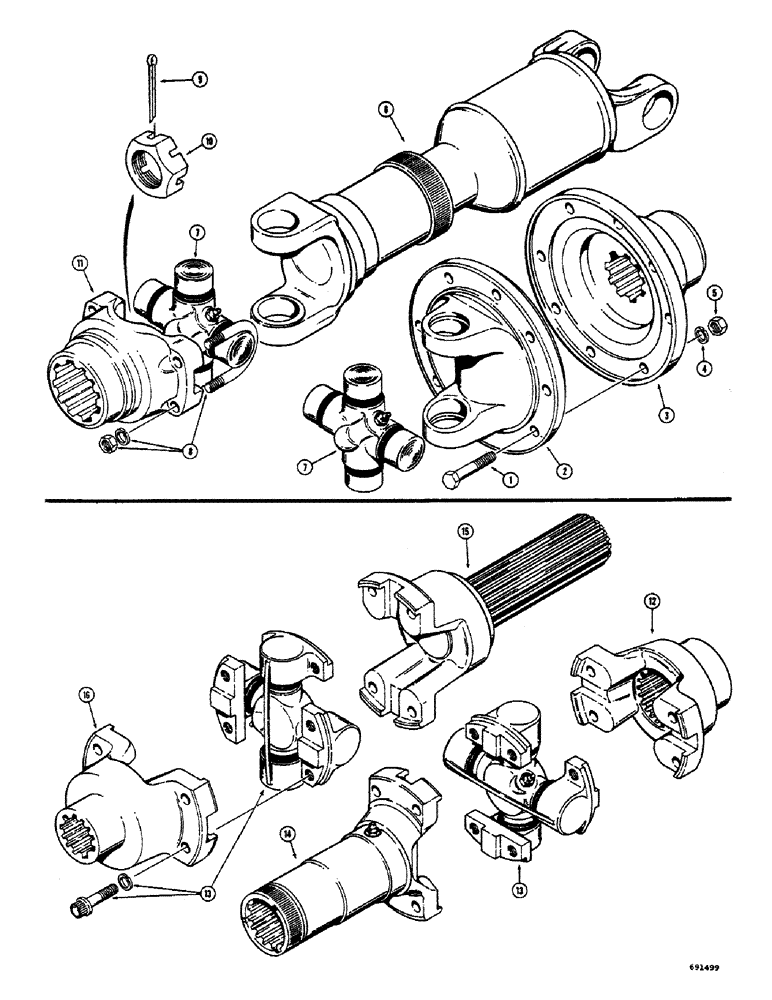

Запчасти Case 300 (158) - WINCH DRIVE SHAFT, GEARMATIC WINCH, USED BEFORE TRACTOR SN 5285, USED ON TRACTOR SN 5285 AND AFTER (18) - ATTACHMENT ACCESSORIES

D45245

SHAFT ASSY.

SHAFT ASSEMBLY - winch drive (Used before tractor serial no. 5285), Includes: Ref. 1 - 11

1шт.

1

D45968

BOLT

- flange mounting (Special)

8шт.

2

D45977

FLANGE

- drive shaft, rear (At drive shaft)

1шт.

3

D45976

FLANGE

- drive shaft, front (At transfer case)

1шт.

4

92-6

LOCK WASHER,3/8"

8шт.

5

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

8шт.

6

D45978

SHAFT

- winch drive, Includes: Ref. 7

1шт.

7

D45979

SPIDER ,U-JOINT

SPIDER AND BEARING ASSEMBLY - drive shaft

2шт.

8

D45971

BOLT

"U" BOLT - mounting (At winch)

2шт.

10

L30731

SLOTTED NUT

- hex., lock (Special)

1шт.

11

D45981

YOKE

- drive shaft (At winch)

1шт.

D45246

SHAFT ASSEMBLY - winch drive (Used on tractor serial no. 5285 and after), used on tractor serial no. 5285 and after, Includes: Ref. 12 - 16

1шт.

12

D45986

YOKE - splined (At transfer case), used on tractor serial no. 5285 and after

1шт.

13

D45982

SPIDER AND BEARING ASSEMBLY - drive shaft, used on tractor serial no. 5285 and after

2шт.

14

D45985

TUBE AND YOKE ASSEMBLY - drive shaft, used on tractor serial no. 5285 andafter

1шт.

15

D45984

SHAFT AND YOKE ASSEMBLY - drive shaft, used on tractor serial no. 5285 and after

1шт.

16

D45983

YOKE - drive shaft (At winch), used on tractor serial no. 5285 and after

1шт.

9

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.
