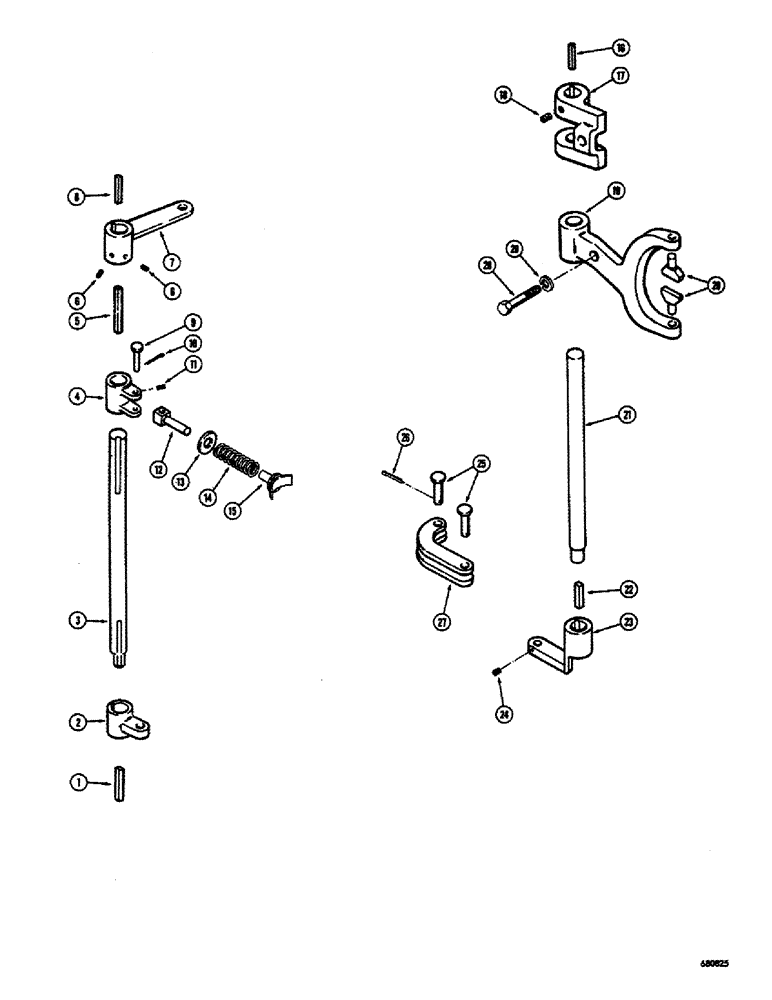

Запчасти Case 300 (152) - CLUTCH LINKAGE, HOLT WINCH (18) - ATTACHMENT ACCESSORIES

1

D46564

KEY - lower lever to secondary shaft

1шт.

2

D46575

LEVER - secondary shaft, lower

1шт.

3

D46569

SHAFT - clutch, secondary

1шт.

4

D46579

LEVER - secondary shaft, center (Free spool)

1шт.

5

T25070

KEY

- center lever to secondary shaft

1шт.

6

83-56

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, hex. socket head (5/16" - 18 NC x 3/8")

2шт.

7

D46583

LEVER - secondary shaft, upper (Free spool)

1шт.

8

D46558

KEY - upper lever to secondary shaft

1шт.

9

D46582

PIN -, Serial Range: lever-rod

1шт.

10

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

1

83-56

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, hex. socket head (5/16" - 18 NC x 3/8")

1шт.

12

D46580

ROD - link

1шт.

13

95-8

WASHER,1/2"

- standard wrot 1/2"

1шт.

14

D46581

SPRING - rod

1шт.

15

D46577

GUIDE - spring

1шт.

16

D46558

KEY - clutch adjustment, Serial Range: collar-shaft

1шт.

17

D46568

COLLAR - clutch adjusting

1шт.

18

83-56

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, hex. socket head (5/16" - 18 NC x 3/8")

1шт.

19

D46576

FORK - winch clutch

1шт.

20

D46573

FINGER - winch clutch

2шт.

21

D46570

SHAFT - clutch, primary

1шт.

22

D46584

KEY - shaft to lower lever

1шт.

23

D46571

LEVER - primary shaft, lower

1шт.

24

83-56

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, hex. socket head (5/16" - 18 NC x 3/8")

1шт.

25

D46572

PIN - link

2шт.

26

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

27

D46574

LINK - clutch

1шт.

28

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

1шт.

29

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.
