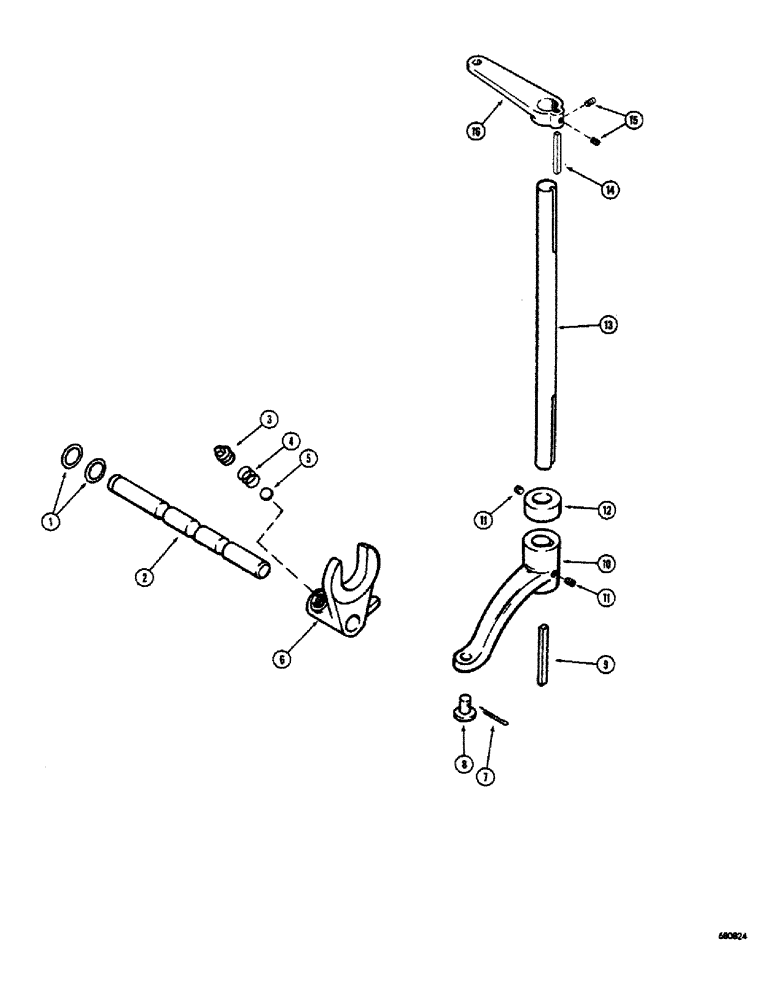

Запчасти Case 300 (150) - GEAR SHIFT LINKAGE, HOLT WINCH (18) - ATTACHMENT ACCESSORIES

1

D46557

SEAL - quad ring

2шт.

2

D46563

SHAFT - detent

1шт.

3

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, square head (1/4" NPT)

1шт.

4

D46562

SPRING - detent ball

1шт.

5

211-26

BALL,15/32" Dia

- detent (.) 15/32" Dia

1шт.

6

D46566

FORK - shifting

1шт.

7

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

8

D46561

GUIDE

PIN - shifting, Serial Range: fork-lever

1шт.

9

D46564

KEY - lower, Serial Range: lever-shaft

1шт.

10

D46567

LEVER - gear shift, lower

1шт.

11

83-56

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, hex. socket head (5/16" - 18 NC x 3/8")

2шт.

12

D46565

COLLAR - shaft

1шт.

13

D46560

SHAFT - gear shift

1шт.

14

D46558

KEY - upper, Serial Range: lever-shaft

1шт.

15

83-56

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, hex. socket head (5/16" - 18 NC x 3/8")

2шт.

16

D46559

LEVER - gear shift, upper

1шт.
