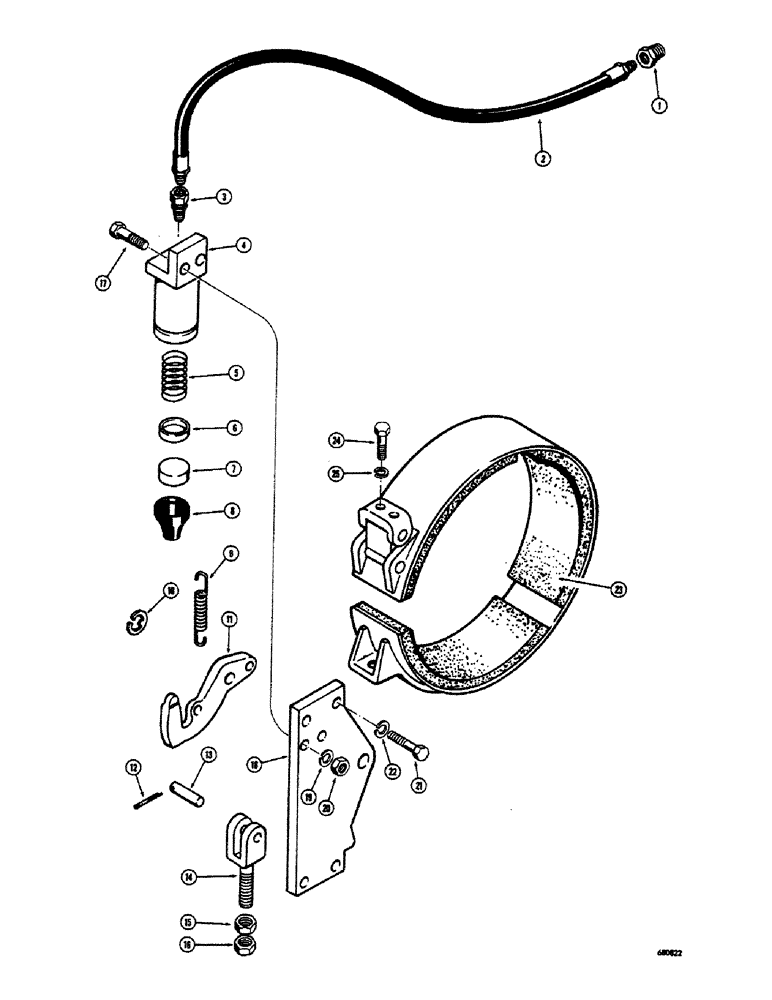

Запчасти Case 300 (148) - BRAKE BANDS AND BRAKE CYLINDERS, HOLT WINCH (18) - ATTACHMENT ACCESSORIES

1

D46597

ADAPTER - hose

1шт.

2

D46595

HOSE - brake line

1шт.

3

218-900

HYD CONNECTOR,1/8" NPT x 1/8" NPSM Fem

ADAPTER - hose

1шт.

4

D46591

BODY - brake cylinder

1шт.

5

A13043

SPRING

- brake cylinder

1шт.

6

D46592

CUP - brake cylinder

1шт.

7

D46593

PISTON - brake cylinder

1шт.

8

D46598

BOOT - brake cylinder

1шт.

9

D46586

SPRING - brake return

1шт.

10

A27811

CIRCLIP,#X74, .616" Dia, E-Type

Ring, Retaining, #X74, .616" Dia, E-Type

1шт.

11

D46588

LEVER - brake cylinder

1шт.

12

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

13

D46590

PIN - brake band yoke

1шт.

14

D46589

YOKE - brake band

1шт.

15

131-36

LOCK NUT,5/8"-18

NUT - hex., lock (5/8" - 18 NF)

1шт.

16

D46599

NUT - self-aligning

1шт.

17

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

18

D46587

PLATE - brake mounting

1шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

D46594

BAND ASSEMBLY - brake

1шт.

24

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

25

92-6

LOCK WASHER,3/8"

2шт.
