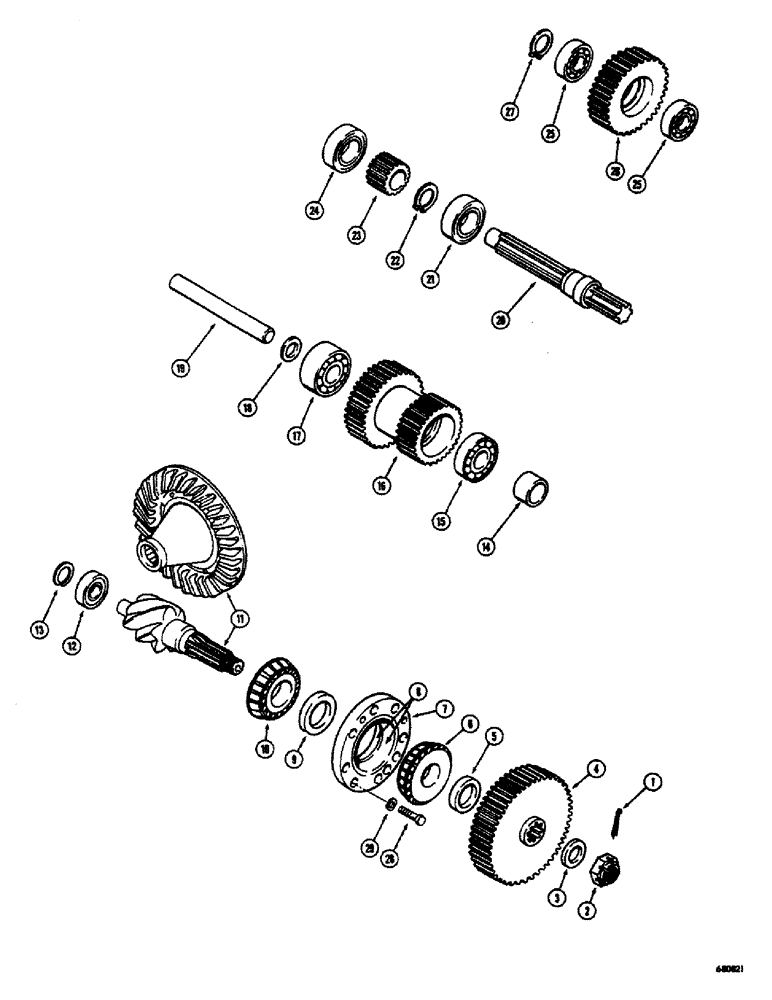

Запчасти Case 300 (146) - GEARS AND SHAFTS, HOLT WINCH (18) - ATTACHMENT ACCESSORIES

1

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

2

D46524

NUT - hex., castle (Special)

1шт.

3

D46523

WASHER - special

1шт.

4

D46520

GEAR - pinion drive (52 tooth)

1шт.

5

D46515

SPACER - bearing

1шт.

6

A12950

ROLLER BEARING,1.75" ID x 1.0594"

CONE - bearing, tapered roller type

1шт.

7

D46522

HOUSING - bearing, Includes: Ref. 8

1шт.

8

A12949

BEARING CUP

CUP - housing

2шт.

9

D46525

SPACER - bearing (If used)

1шт.

10

A9841

ROLLER BEARING,1.875" ID x 1.0594"

CONE - bearing, tapered roller type

1шт.

11

D46521

GEAR SET - bevel and pinion

1шт.

12

D46533

KIT

BEARING - roller type

1шт.

13

A8218

SNAP RING,#118, Ext

Ring, Snap, , bearing #118, Ext

1шт.

14

D46518

SPACER - bearing

1шт.

15

B18215

BALL BEARING,1.5748" ID x 3.1496" OD x 0.7087"

BEARING - ball type

1шт.

16

D46519

GEAR - cluster

1шт.

17

D46530

BEARING - ball type

1шт.

18

D46517

SPACER - bearing

1шт.

19

D46514

SHAFT - idler

1шт.

20

D46513

SHAFT - input

1шт.

21

D46527

BEARING, BALL

BEARING - ball type

1шт.

22

A7147

SNAP RING,#177, Ext

Ring, Snap, , bearing #177, Ext

1шт.

23

D46511

GEAR - selector (17 tooth)

1шт.

24

D46528

BEARING - ball type

1шт.

25

G13075

BEARING, BALL

BEARING - ball type

2шт.

26

D46512

GEAR - reverse idler (30 tooth)

1шт.

27

A7147

SNAP RING,#177, Ext

Ring, Snap, , bearing #177, Ext

1шт.

28

14-724

SCREW,Hex, 7/16" - 20 x 1 1/2", Gr 5

HHCS - 7/16" - 20 NF x 1-1/2"

8шт.

29

92-7

LOCK WASHER,7/16"

8шт.
