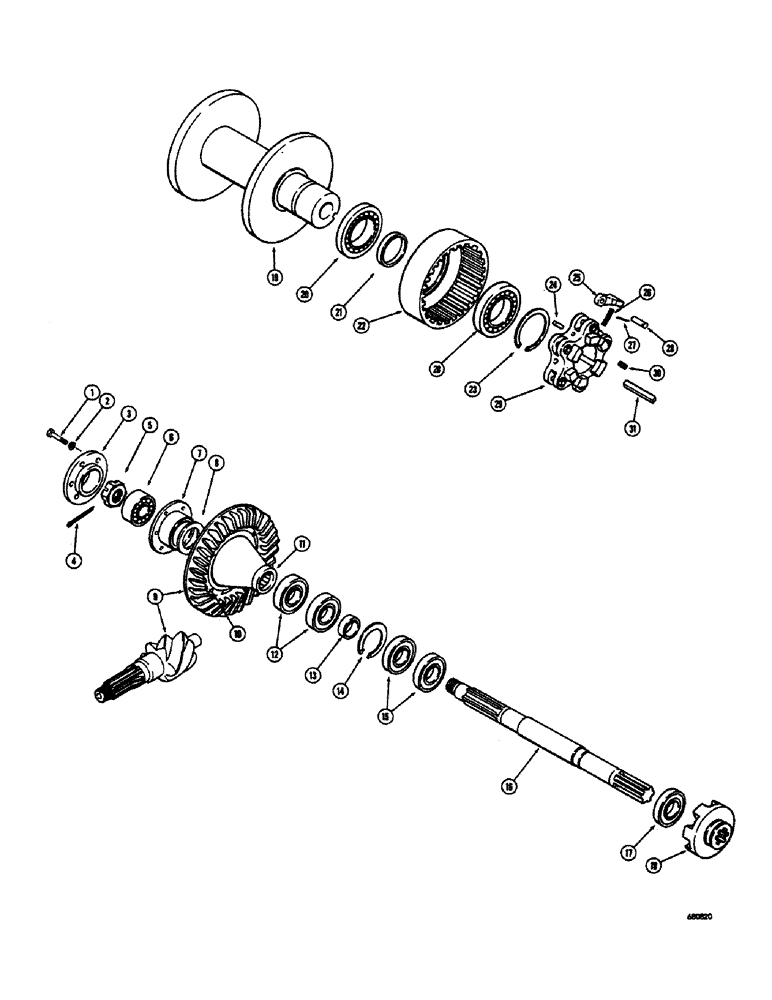

Запчасти Case 300 (144) - CABLE SPOOL AND MAIN DRIVE SHAFT, HOLT WINCH (18) - ATTACHMENT ACCESSORIES

1

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

6шт.

2

92-8

LOCK WASHER,1/2"

6шт.

3

D46535

COVER - winch housing

1шт.

4

132-159

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

1шт.

5

D46551

NUT - hex., slotted (Special)

1шт.

6

D46555

BEARING - ball type

1шт.

7

D46536

HOUSING - drive shaft

1шт.

8

D48176

SPACER - gear, .1875" thick

1шт.

8

D48177

SPACER - gear, .1250" thick

1шт.

8

D48178

SPACER - gear, .0938" thick

1шт.

8

D48179

SPACER - gear, .0781" thick

1шт.

8

D48180

SPACER - gear, .0625" thick

1шт.

8

D48181

SPACER - gear, .0469" thick

1шт.

9

D46521

GEAR SET - bevel and pinion

1шт.

10

D46550

RIVET - hypoid gear

10шт.

11

D46547

HUB - hypoid gear

1шт.

12

D46554

BEARING - ball type

2шт.

13

D46545

SPACER - bearing

1шт.

14

39325

SNAP RING,4.75", Int, #475

Ring, Snap, 4.75", Int, #475

1шт.

15

D46554

BEARING - ball type

2шт.

16

D46544

SHAFT - drive, drum

1шт.

17

D46553

BEARING - ball type

1шт.

18

D46541

CLUTCH THROW OUT - winch

1шт.

19

D46548

SPOOL - cable, winch

1шт.

20

D46552

BEARING - ball type

2шт.

21

D46546

SPACER - bearing

1шт.

22

D46537

DRUM - winch brake

1шт.

23

D46556

SNAP RING - retaining

1шт.

24

D46540

DOWEL - latch drum

1шт.

25

D46542

LATCH - cable drum brake

6шт.

26

D46549

SPRING - latch

6шт.

27

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

6шт.

28

D46543

PIN - latch retaining

6шт.

29

D46538

DRUM - latch, winch cable spool

1шт.

30

178-483

SCREW - set, hex. socket head (1/2" - 13 NC x 3/4")

3шт.

31

D46539

KEY - drum latch

1шт.
