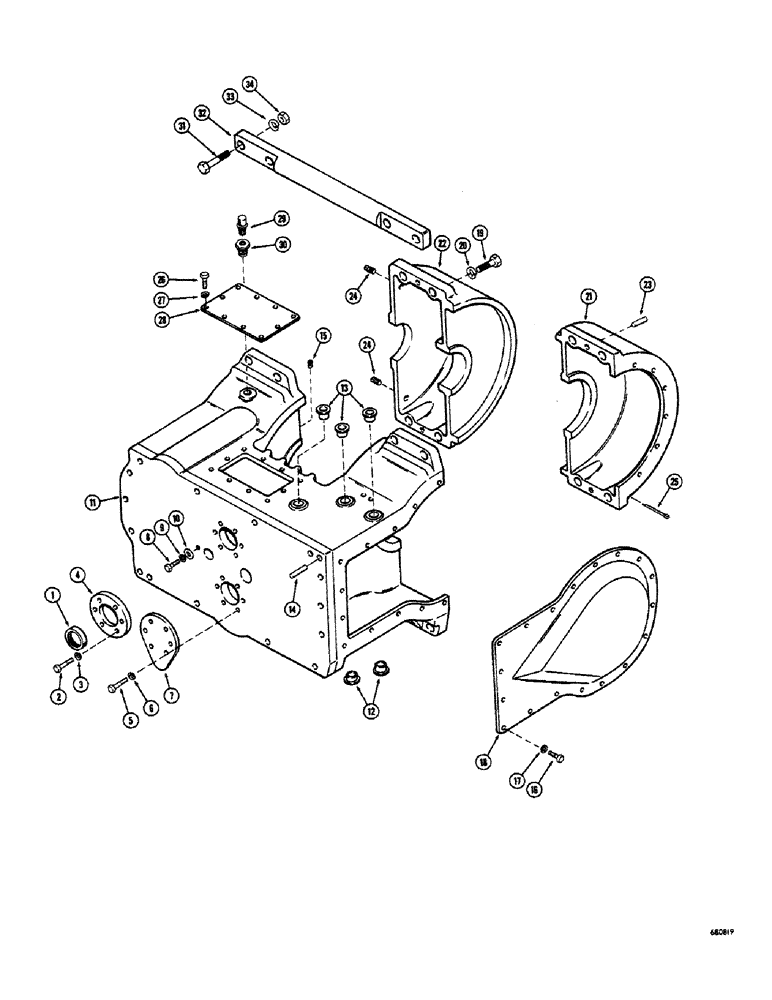

Запчасти Case 300 (142) - WINCH HOUSING AND COVERS, HOLT WINCH (18) - ATTACHMENT ACCESSORIES

1

D46486

SEAL - input shaft

1шт.

2

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS - 3/8" - 24 NF x 1-1/2"

6шт.

3

92-6

LOCK WASHER,3/8"

6шт.

4

D46485

CAP - input shaft bearing

1шт.

5

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS - 3/8" - 24 NF x 1-1/2"

6шт.

6

92-6

LOCK WASHER,3/8"

6шт.

7

D46494

PLATE - cover

1шт.

8

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8" - 24 NF x 1"

1шт.

9

92-6

LOCK WASHER,3/8"

1шт.

10

95-6

WASHER,3/8"

- standard wrot () 3/8"

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - winch

1шт.

12

D46492

BUSHING - housing

2шт.

13

D46493

BUSHING - housing

3шт.

14

70205

PIN

DOWEL - 1/2" dia. x 1-1/2"

2шт.

15

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, 3/8" - 16 NC x 3/8"

2шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

18шт.

17

92-6

LOCK WASHER,3/8"

18шт.

18

D46491

COVER - winch, side

1шт.

19

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

8шт.

20

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

21

NSS

NOT SOLD SEPARAT

COVER - gear

1шт.

22

NSS

NOT SOLD SEPARAT

COVER - brake

1шт.

23

70205

PIN

DOWEL - 1/2" dia. x 1-1/2"

4шт.

24

221-14

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, square head (1/2" NPT)

2шт.

25

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

10шт.

27

92-6

LOCK WASHER,3/8"

10шт.

28

D46487

COVER - inspection

1шт.

29

D40582

X

FITTING - vent type

1шт.

30

221-57

REDUCING BUSHING - pipe (3/4" NPT x 1/8" NPT)

1шт.

31

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

32

D46495

BAR - winch drum

1шт.

33

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

34

25-1012

NUT,3/4"-10, G5

4шт.
