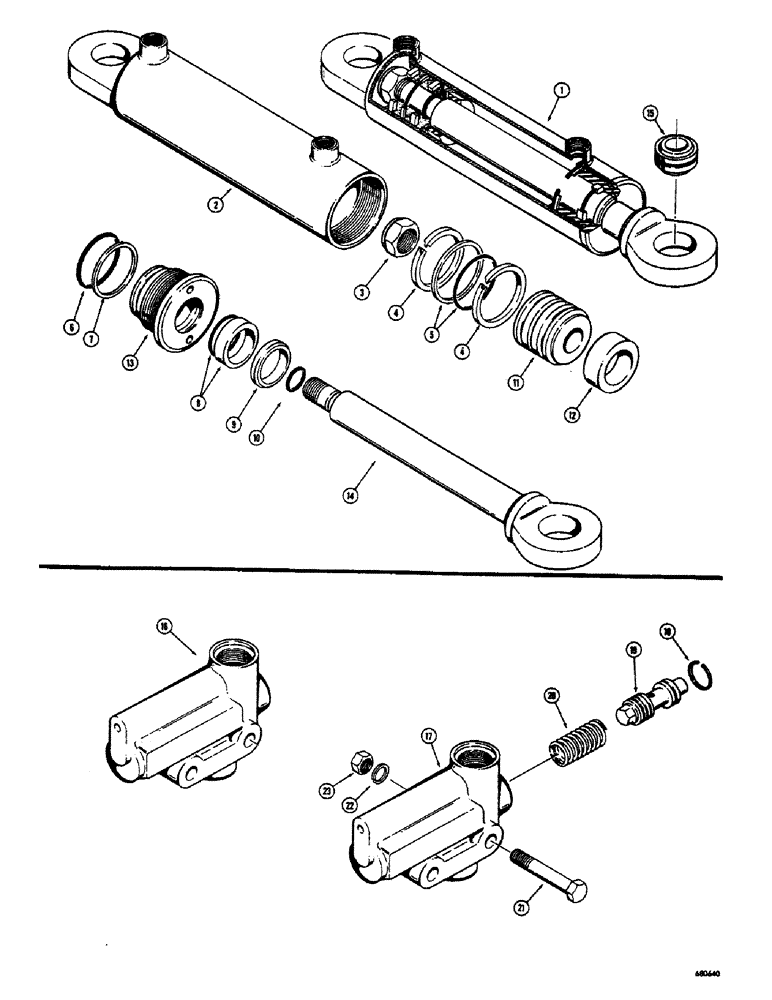

Запчасти Case 300 (106) - D45175 STEERING CYLINDER, D45168 FLOW CONTROL VALVE (13) - STEERING SYSTEM

1

D45175

CYLINDER - hydraulic, steering (3-1/2" I.D. x 9-1/8" stroke), D451175 steering cylinder, Includes: Ref. 2 - 14

2шт.

2

D46055

TUBE - cylinder, D45175 steering cylinder

1шт.

3

D48144

NUT - hex., lock (1-1/4" - 12 NF), D45175 steering cylinder

1шт.

D45174

KIT - packing, gland type cylinder, D45175 steering cylinder, Includes: Ref. 4 - 10

1шт.

4

D46051

RING - piston, D45175 steering cylinder

2шт.

5

D46049

SEAL

RING SET - teflon and "O" ring, D45175 steering cylinder

1шт.

6

T32305

O-RING,0.21" Thk x 3.1" ID, -338, Cl 5, 75 Duro

SEAL - "O" ring, gland, D45175 steering cylinder

1шт.

7

D38767

RING

- backup, gland seal, D45175 stering cylinder

1шт.

8

D46044

SEAL SET - "U" cup and ring, rod, D45175 steering cylinder

1шт.

9

D46043

SEAL - wiper, rod, D45175 steering cylinder

1шт.

10

D46047

SEAL - "O" ring, rod, D45175 steering cylinder

1шт.

11

D46061

PISTON - cylinder, D45175 steering cylinder

1шт.

12

D46059

SPACER - piston, D45175 steering cylinder

2шт.

13

D46053

GLAND - cylinder, D45175 steering cylinder

1шт.

14

D46057

ROD - piston (2" dia.), D45175 steering cylinder

1шт.

15

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

BUSHING - steering cylinder, D45175

4шт.

16

D45168

VALVE

- hydraulic, flow control, D45168 flow control valve, Includes: Ref. 17 - 20

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - flow control valve, D45168 flow control valve

1шт.

18

D46214

CIRCLIP

SNAP RING - spool retaining, D45168 flow control valve

1шт.

19

D46215

SPOOL

- flow control valve, D45168 flow control valve

1шт.

20

D46216

SPRING

- spool, D45168 flow control valve

1шт.

21

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

D45168 flow control valve Hex, 5/16"-18 x 2 1/4", G5

2шт.

2

92-5

LOCK WASHER,5/16"

D45168 flow control valve 5/16"

2шт.

23

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC), D45168 flow control valve

2шт.
