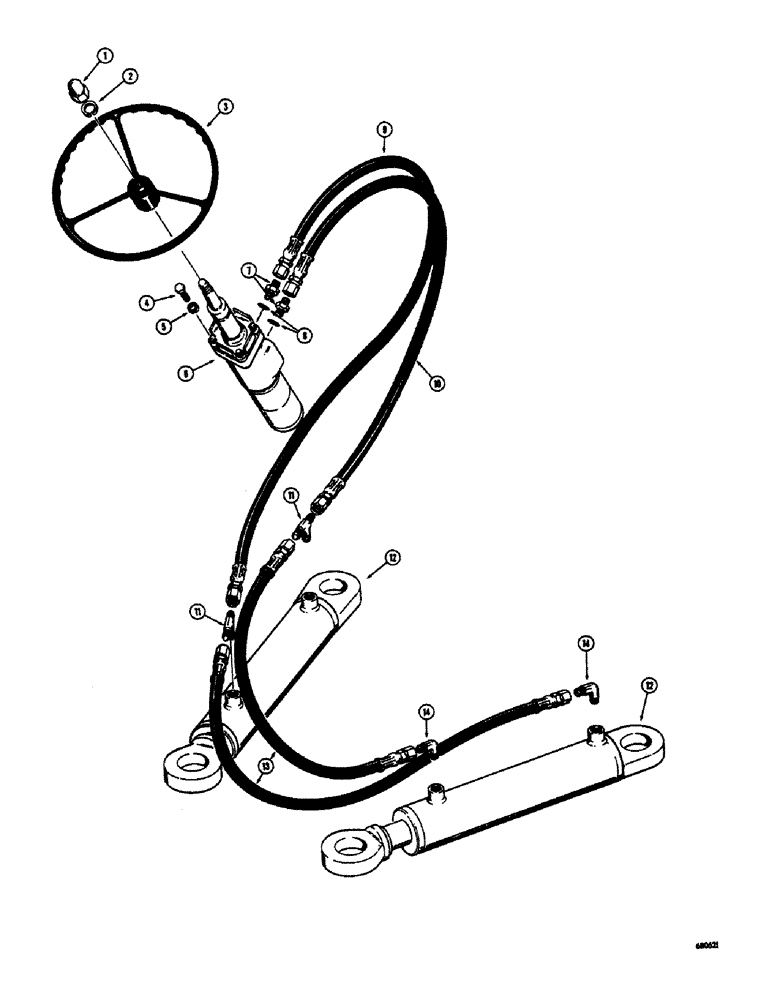

Запчасти Case 300 (104) - STEERING WHEEL AND STEERING HYDRAULICS (13) - STEERING SYSTEM

1

A8744

NUT

- acorn (Special)

1шт.

2

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

3

D45692

WHEEL - steering

1шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

D45167

PUMP ASSEMBLY - steering, manual (Parts list Figure 102)

1шт.

7

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , male, straight, Incl. Ref. 8 7/8"-14, 37º x 3/4"-16, O-Ring

2шт.

9

D47402

HOSE ASSY.

HOSE - manual pump to R.H. steering cylinder closed end, L.H. steering cylinder rod end (75" long)

1шт.

10

D45853

HOSE - manual pump to R.H. steering cylinder rod end, L.H. steering cylinder closed end (87" long)

1шт.

11

218-555

TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Br

- male (1/2" NPT x 5/8" JIC)

2шт.

12

D45175

CYLINDER - hydraulic, steering (3-1/2" I.D. x 9-1/8" stroke) Parts list Figure 106

2шт.

13

19178

HOSE

- R.H. steering cylinder to L.H. steering cylinder (33-1/2" long)

2шт.

14

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (1/2" NPT x 5/8" JIC)

2шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.
