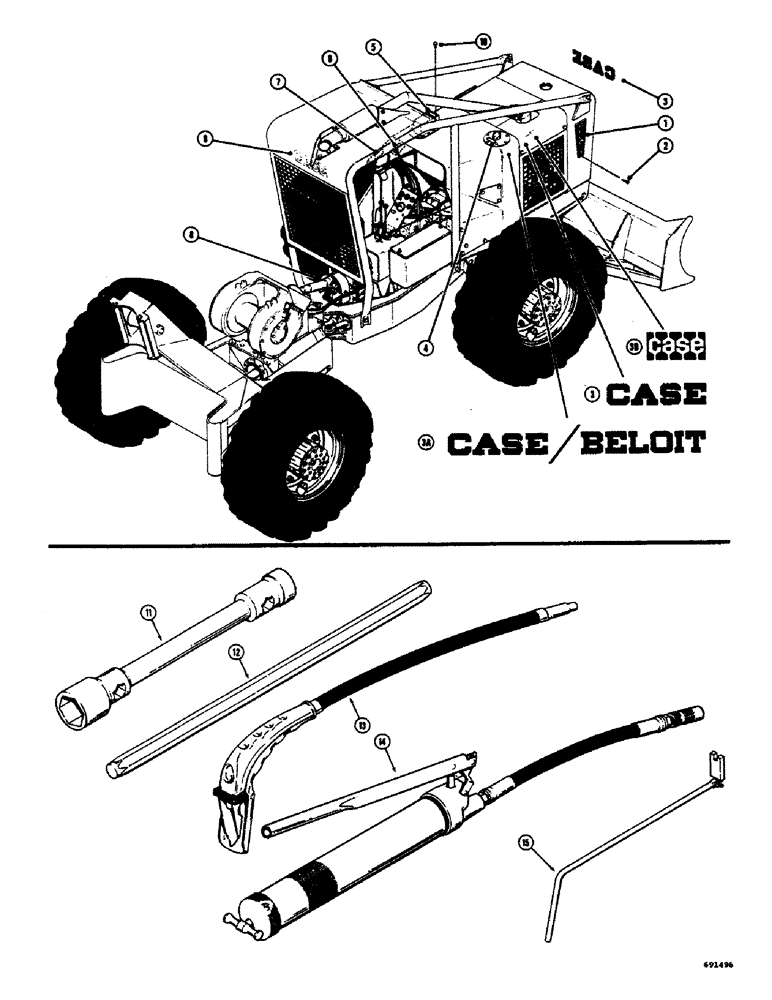

Запчасти Case 300 (206) - IDENTIFICATION PLATES, DECALS AND TOOLS, IDENTIFICATION PLATES AND DECALS, TOOLS (12) - Chassis/Attachments

1

NSS

NOT SOLD SEPARAT

NAME PLATE - Beloit (Used before tractor serial no. 5770)

2шт.

2

172-100

X

SCREW - machine, flat head (#10 - 32 NF x 3/4")

12шт.

3

321-1010

DECAL

- Case, at grille (And tank before tractor serial no. 5770) If used

1-3шт.

3a

D48320

DECAL - Case/Beloit, tank (Used on some tractors serial no. 5770 and after)

2шт.

3b

321-1440

DECAL

- Case, tank (Used on some tractors serial no. 5770 and after)

2шт.

4

D45942

PLATE - fuel

1шт.

5

D45941

PLATE - hydraulic oil

1шт.

6

D45944

PLATE - transmission shift pattern (Used before tractor serial no. 5255)

1шт.

D45945

PLATE - transmission shift pattern (Used on tractor serial no. 5255 through serial no. 5669)

1шт.

D48321

PLATE - transmission shift pattern (Used on tractor serial no. 5770 and after)

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE - model designation and serial number

1шт.

8

D45943

PLATE - lubrication instructions (Used before tractor serial no. 5770)

1шт.

D48322

PLATE - lubrication instructions (Used on tractor serial no. 5770 and after)

1шт.

9

321-996

DECAL

- Case, at rear of canopy (If used)

1шт.

10

168-62

DRIVE SCREW,Type U, Rnd Hd, #4 x 1/4"

- Drive, #4 x 1/4"

25шт.

D45214

KIT

TOOL KIT - skidder, Includes: Ref. 11 - 15

1шт.

This tool kit also includes (1) adjustable wrench and (1) planetary check and fill plug tool, which are not supplied individually.

1шт.

11

D46312

ADJUSTING WRENCH

WRENCH - wheel (1-1/4" - 1-1/2"), tools

1шт.

12

D46313

HANDLE

- wheel wrench (22" long), tools

1шт.

13

D46314

TOOL

SPOUT - oil, tools

1шт.

14

219-101

GUN, GREASE

GREASE GUN - lever type, tools

1шт.

15

D46311

TOOL

WRENCH - brake head bleeding, tools

1шт.
