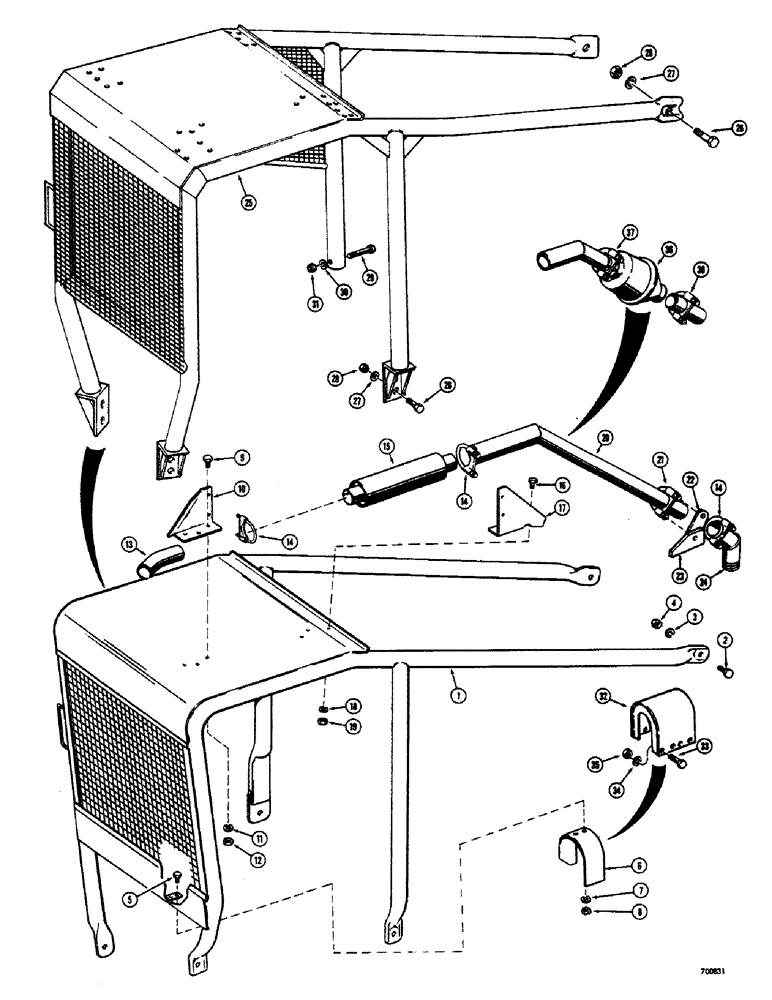

Запчасти Case 300 (132) - CANOPY AND EXHAUST SYSTEM (12) - Chassis/Attachments
№
Артикул
Название
Примечание
Количество
1
D45841
CANOPY - protective (Used before tractor serial no. 5771)
1шт.
3
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
6шт.
4
25-1012
NUT,3/4"-10, G5
6шт.
5
13-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
2шт.
6
D45844
GUARD - winch drive shaft (Used before tractor serial no. 5771)
1шт.
7
92-8
LOCK WASHER,1/2"
2шт.
8
25-108
NUT,1/2"-13, G5
- hex. (1/2" - 13 NC)
2шт.
9
13-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
3шт.
10
D45842
NIPPLE, LUBE
BRACKET - muffler, rear
1шт.
11
92-8
LOCK WASHER,1/2"
3шт.
12
25-108
NUT,1/2"-13, G5
- hex. (1/2" - 13 NC)
3шт.
13
D45845
PIPE - exhaust, rear
1шт.
14
L13781
CLAMP
- muffler and exhaust pipe
3шт.
15
L13782
MUFFLER
- exhaust
1шт.
16
13-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd
3шт.
17
D45843
BRACKET - muffler, front
1шт.
18
92-8
LOCK WASHER,1/2"
3шт.
19
25-108
NUT,1/2"-13, G5
- hex. (1/2" - 13 NC)
3шт.
20
D45840
PIPE - exhaust, intermediate
1шт.
21
L13781
CLAMP
- exhaust pipe
1шт.
22
D45715
BRACKET - upper
1шт.
23
D45714
BRACKET - lower
1шт.
24
D45846
PIPE - exhaust, lower (At exhaust manifold)
1шт.
25
D48825
CANOPY - protective (Used on tractor serial no. 5771 and after)
1шт.
26
13-656
BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5
HHCS - 1" - 8 NC x 3-1/2"
8шт.
27
92-16
LOCK WASHER,1"
WASHER, LOCK, 1"
8шт.
28
25-1016
NUT,1"-8, G5
8шт.
29
13-860
BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5
1шт.
30
92-8
LOCK WASHER,1/2"
1шт.
31
25-108
NUT,1/2"-13, G5
- hex. (1/2" - 13 NC)
1шт.
32
D49384
GUARD - winch drive shaft (Used on tractor serial no. 5771 and after)
1шт.
33
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
4шт.
34
92-6
LOCK WASHER,3/8"
4шт.
35
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC)
4шт.
D51187
SPARK ARRESTOR ASSEMBLY - engine exhaust (If used), Includes: Ref. 36 and 37
1шт.
36
NSS
NOT SOLD SEPARAT
ARRESTOR - spark
1шт.
37
D48824
CLAMP
- spark arrestor
1шт.
38
D48824
CLAMP
- spark arrestor to exhaust pipe
1шт.
Выбрано товаров: 39
