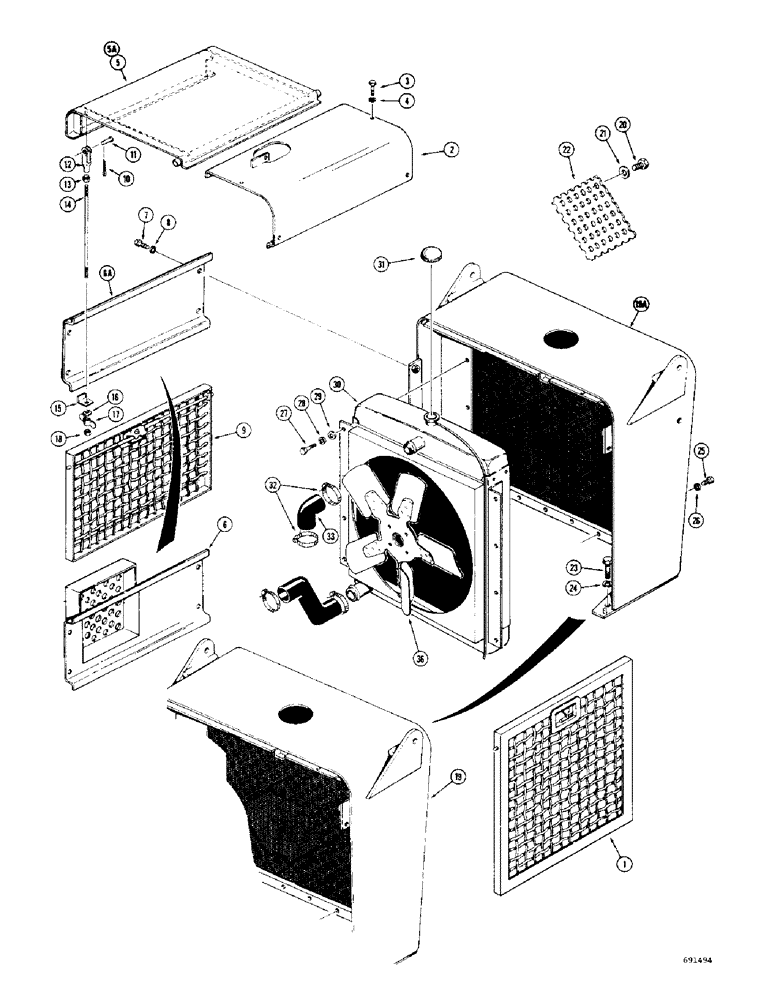

Запчасти Case 300 (128) - HOOD, SIDE SCREENS AND GRILLE (12) - Chassis/Attachments

1

D45805

SCREEN - engine, R.H. side

1шт.

2

D45809

HOOD - engine, split (R.H. side)

1шт.

3

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

D45716

HOOD - engine, split (L.H. side) Used before tractor serial no. 5770

1шт.

5a

D48805

HOOD - engine, split (L.H. side) Used on tractor serial no. 5770 and after

1шт.

6

D45807

PANEL - engine side, L.H. (Used before tractor serial no. 5770)

1шт.

6a

D48803

PANEL - engine side, L.H. (Used on tractor serial no. 5770 and after)

1шт.

7

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

8

92-8

LOCK WASHER,1/2"

4шт.

9

D45814

SCREEN - engine, L.H. side

1шт.

10

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

11

121-4

PIN - yoke

2шт.

12

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - rod end

2шт.

13

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

2шт.

14

D45717

ROD - hood holddown

2шт.

15

D45718

CATCH - hood holddown

2шт.

16

95-6

WASHER,3/8"

- standard wrot () 3/8"

2шт.

17

129-410

WING NUT,3/8"-16

NUT - winged (3/8" - 16 NC)

2шт.

18

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

19

D45806

GRILLE GUARD ASSEMBLY - radiator (Used before tractor serial no. 5771), Includes: Ref. 20 - 22

1шт.

19a

D48823

GRILLE GUARD ASSEMBLY - radiator (Used on tractor serial no. 5771 and after), Includes: Ref. 20 - 22

1шт.

20

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

2шт.

21

95-12

WASHER,3/4"

- standard wrot () 3/4"

2шт.

22

NSS

NOT SOLD SEPARAT

COVER - access

1шт.

23

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

2шт.

24

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

25

13-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5, Full Thd

6шт.

26

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

27

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

28

92-6

LOCK WASHER,3/8"

8шт.

29

95-6

WASHER,3/8"

- standard wrot () 3/8"

8шт.

30

D45652

RADIATOR - engine cooling, Includes: Ref. 31

1шт.

31

D25826

CAP

- radiator

1шт.

32

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

33

D45686

HOSE - radiator, upper

1шт.

34

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

35

D45685

HOSE - radiator, lower

1шт.

36

D45690

FAN - radiator cooling, suction type (Optional)

1шт.

36

D47647

FAN - radiator cooling, pusher type (Standard)

1шт.
