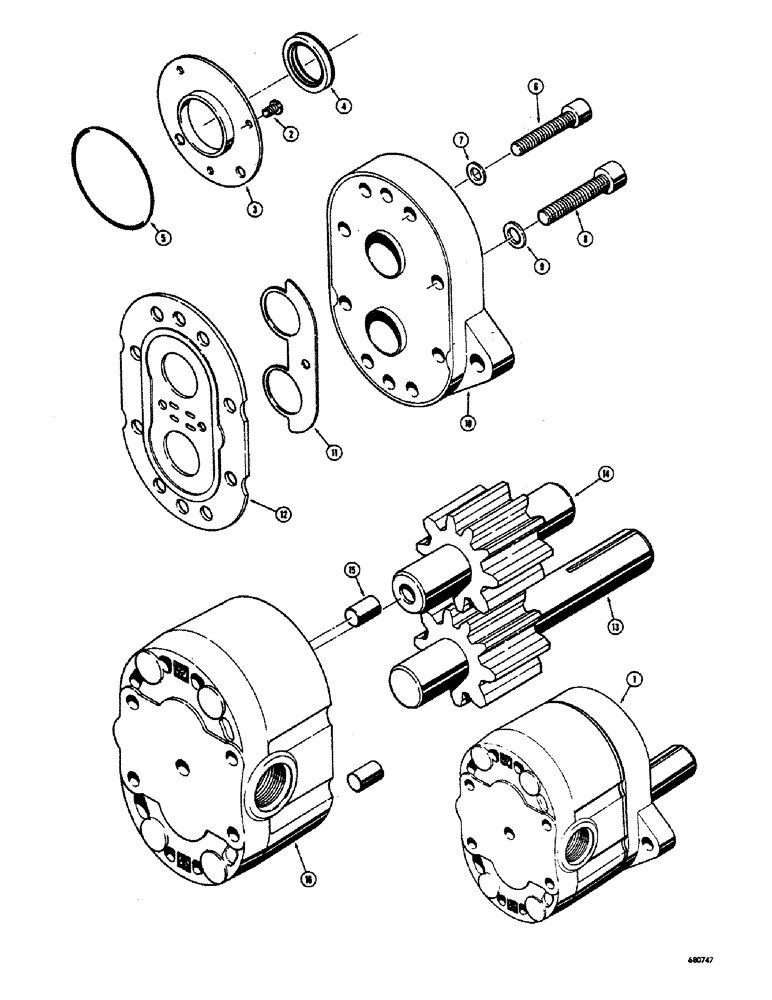

Запчасти Case 300 (204) - D45659 PUMP ASSEMBLY, USED ON TRACTOR SERIAL NO. 5258 AND AFTER (07) - HYDRAULIC SYSTEM

1

D45659

PUMP - hydraulic, gear type (20 G.P.M. at 2500 R.P.M. at 1500 P.S.I.) When replacing complete pump, order D54170 pump and related adapting parts. (See page 110 for adapting parts and Figure 205A for D54170 parts list), Includes: Ref. 2 - 16

1шт.

2

187-1049

SCREW - flat head, self-tapping (#10 - 24 NC x 3/8")

3шт.

D46322

PLATE ASSEMBLY - front seal, Includes: Ref. 3 - 14

1шт.

3

NSS

NOT SOLD SEPARAT

PLATE - front seal

1шт.

4

R22149

SEAL

- drive shaft

1шт.

Refs. preceded by an asterisk are available as a pump repair kit part no. D52315.

1шт.

5

D46323

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

Refs. preceded by an asterisk are available as a pump repair kit part no. D52315.

1шт.

6

61-520

HEX SOC SCREW,5/16"-18 x 1 1/4"

BOLT - hex. socket head (5/16" - 18 NC x 1-1/4")

4шт.

7

D46324

WASHER

- special

4шт.

8

61-624

HEX SOC SCREW,3/8"-16 x 1 1/2"

BOLT - hex. socket head (3/8" - 16 NC x 1-1/2"

4шт.

9

A32395

WASHER

- special

4шт.

10

D46326

COVER ASSEMBLY - shaft end

1шт.

11

D46327

LARGE PLATE

PLATE - backup

1шт.

Refs. preceded by an asterisk are available as a pump repair kit part no. D52315.

1шт.

12

D46328

LARGE PLATE

PLATE - wear

1шт.

Refs. preceded by an asterisk are available as a pump repair kit part no. D52315.

1шт.

D46329

SHAFT AND GEAR SET - drive and driven, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

SHAFT AND GEAR - drive

1шт.

14

NSS

NOT SOLD SEPARAT

SHAFT AND GEAR - driven

1шт.

15

D46332

PIN - dowel

2шт.

16

D46333

COVER ASSEMBLY - port end

1шт.
