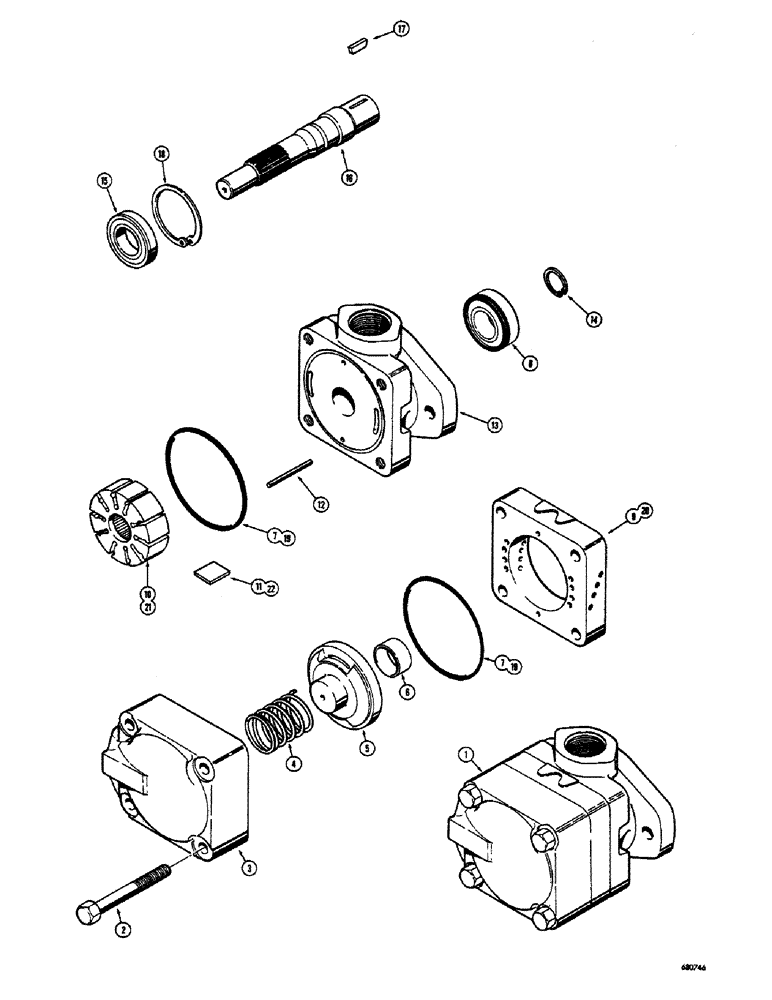

Запчасти Case 300 (202) - D45177 PUMP ASSEMBLY, USED BEFORE TRACTOR SERIAL NO. 5258, CARTRIDGE KIT (07) - HYDRAULIC SYSTEM

1

D45177

PUMP - hydraulic, vane type (19 G.P.M. at 2500 R.P.M. at 1500 P.S.I.), Includes: Ref. 2 - 18

1шт.

2

D46038

SCREW - special

4шт.

3

D46207

COVER - outlet port

1шт.

4

D46039

SPRING - pump

1шт.

D46019

PRESSURE PLATE ASSEMBLY - pump, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

PRESSURE PLATE - pump

1шт.

6

D46212

BUSHING - pressure plate

1шт.

D45178

SEAL KIT - pump, Includes: Ref. 7 and 8

1шт.

7

16238

BAR

SEAL - "O" ring

2шт.

8

D46213

SEAL

- shaft

1шт.

9

D46028

WEAR RING - pump center plate

1шт.

10

D46029

ROTOR - pump

1шт.

11

D46205

VANE KIT - pump (Includes 12 vanes)

1шт.

12

D46206

PIN - dowel

2шт.

13

D46208

COVER AND FLANGE - inlet port

1шт.

14

D46211

SNAP RING,#78, Ext

Ring, Snap, #78, Ext

1шт.

15

D46209

BEARING

- shaft

1шт.

16

D46219

SHAFT - pump drive

1шт.

17

D46210

KEY - shaft

1шт.

18

16242

SNAP RING,1.852", Int, #185

Ring, Snap, 1.852", Int, #185

1шт.

D45179

CARTRIDGE KIT - pump, cartridge kit, Includes: Ref. 19 - 22

1шт.

19

16238

BAR

SEAL - "O" ring, cartridge kit

2шт.

20

D46028

WEAR RING - pump center plate, cartridge kit

1шт.

21

D46029

ROTOR - pump, cartridge kit

1шт.

22

D46205

VANE KIT - pump (Includes 12 vanes), cartridge kit

1шт.
