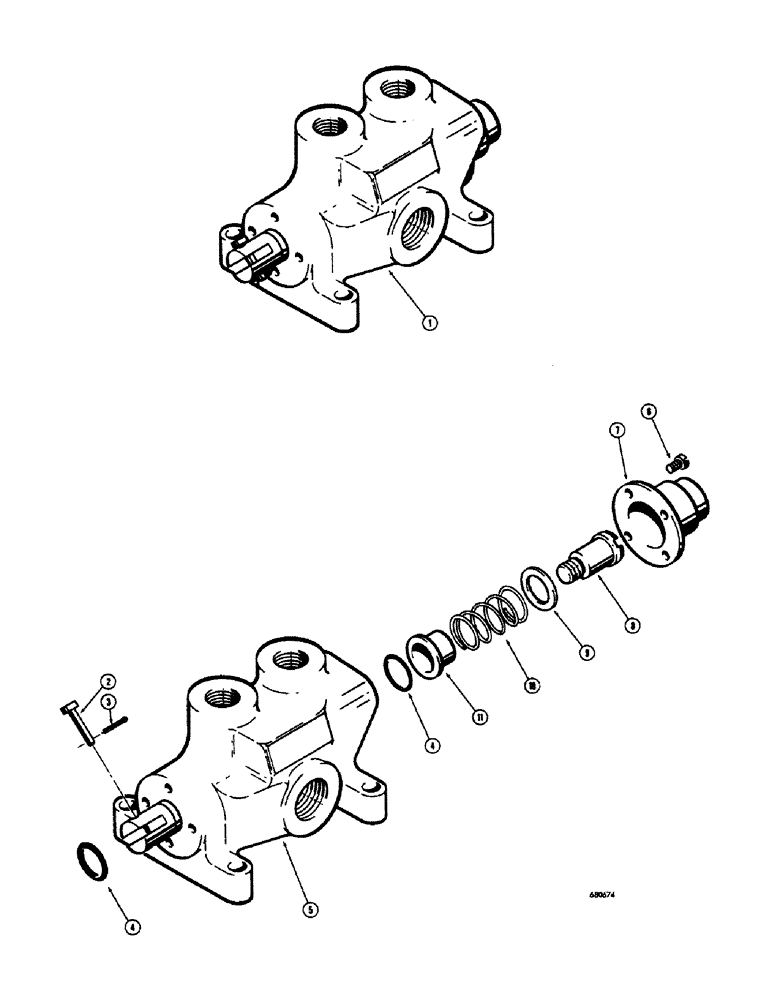

Запчасти Case 300 (198) - D45649 DOZER CONTROL VALVE (07) - HYDRAULIC SYSTEM

1

D45649

VALVE - hydraulic, dozer control, Includes: Ref. 2 - 11

1шт.

2

C12740

PIN

- valve control rod

1шт.

3

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

4

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

SEAL - "O" ring, spool

2шт.

5

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - valve

1шт.

6

169-75

SCREW - fillister head, #8 - 32 NC x 3/8"

4шт.

7

D46369

CAP - valve

1шт.

8

D46370

SPOOL END - valve

1шт.

9

D46371

WASHER - return spring

1шт.

10

D46372

SPRING - spool return

1шт.

11

D46373

SPACER - spring

1шт.
