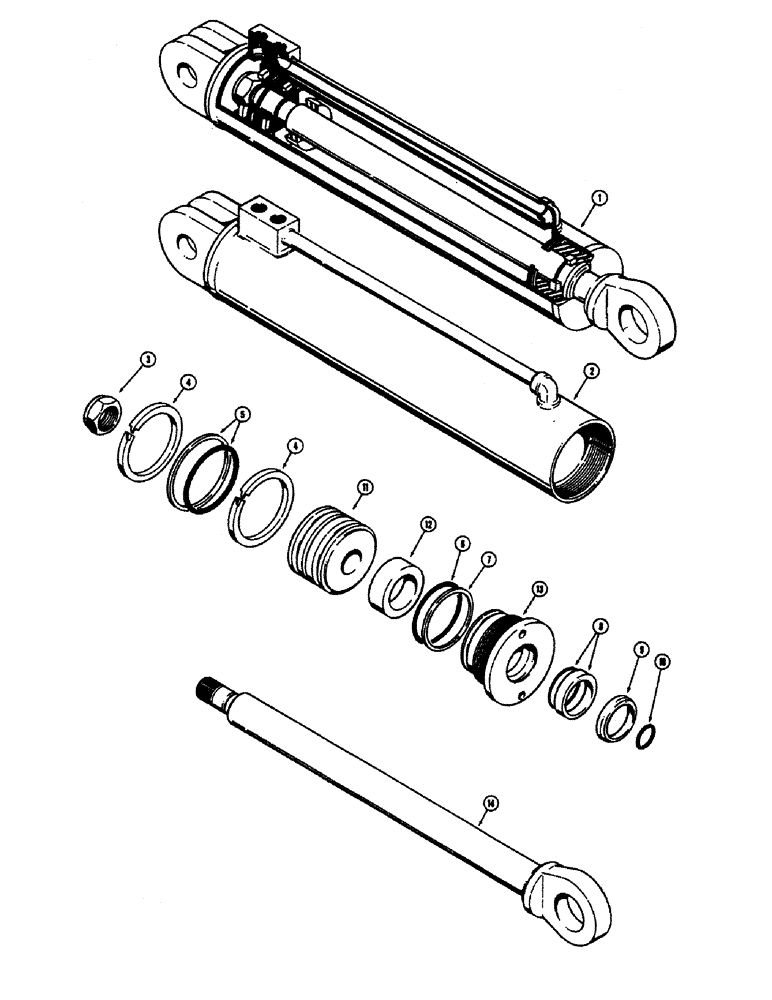

Запчасти Case 300 (196) - D45641 DOZER LIFT CYLINDER (07) - HYDRAULIC SYSTEM

1

D45641

CYLINDER - hydraulic, dozer lift (4" I.D. x 16" stroke), Includes: Ref. 2 - 14

2шт.

2

D46054

TUBE - cylinder

1шт.

3

D48144

NUT - hex., lock (1-1/4" - 12 NF)

1шт.

D45173

REPAIR KIT

KIT - packing, gland type cylinder, Includes: Ref. 4 - 10

1шт.

4

D46050

RING, PISTON

RING - piston

2шт.

5

D46048

RING SET - teflon and "O" ring

1шт.

6

A30895

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

7

D46046

RING - backup, gland seal

1шт.

8

D46044

SEAL SET - "U" cup and ring, rod

1шт.

9

D46043

SEAL - wiper

1шт.

10

D46047

SEAL - "O" ring, rod

1шт.

11

D46060

PISTON - cylinder

1шт.

12

D46058

SPACER - piston

1шт.

13

D46052

GLAND - cylinder

1шт.

14

D46056

ROD - piston (2" dia.)

1шт.
