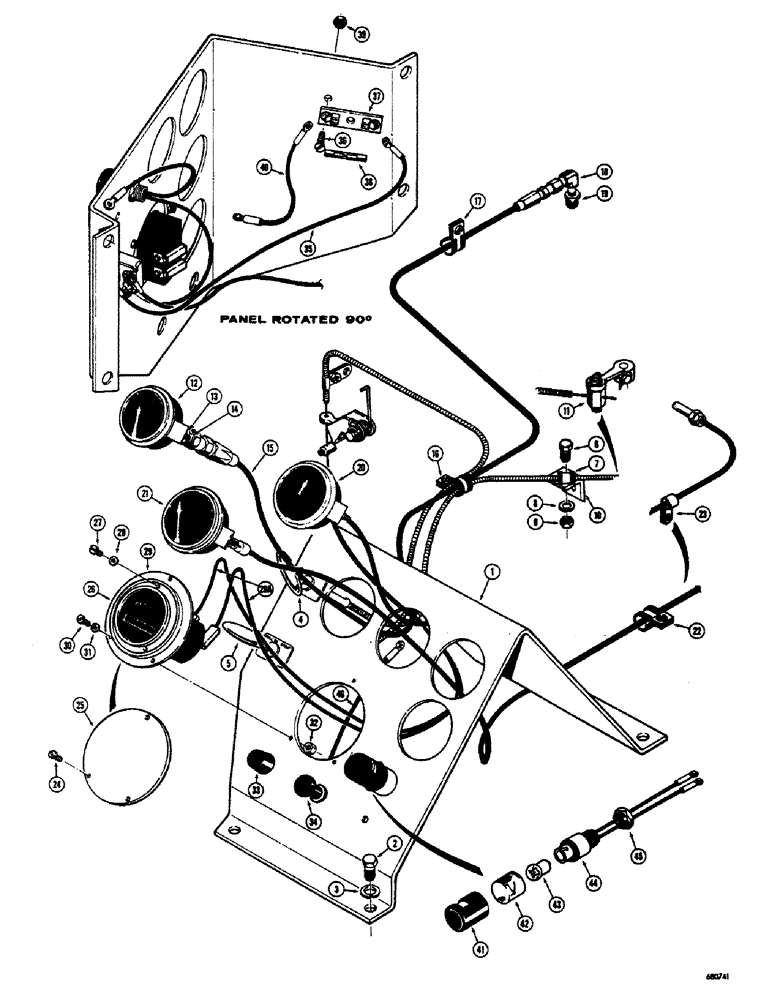

Запчасти Case 300 (018) - INSTRUMENT PANEL, USED ON MODELS WITHOUT TORQUE CONVERTER (06) - ELECTRICAL SYSTEMS

1

D45825

PANEL - instrument

1шт.

2

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

REF

INSTRUCTION

STOP CABLE - emergency, engine air (Parts available thru Detroit Diesel Parts Book)

1шт.

5

D45999

SPARE PART FUEL - engine

1шт.

6

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

1шт.

7

D45836

CLAMP - mounting

1шт.

8

92-6

LOCK WASHER,3/8"

1шт.

9

25-116

NUT,Hex, 3/8"-24, G5

1шт.

10

D45835

BRACKET - clamp mounting

1шт.

11

D45833

SPARE PART Engine shutoff, swivel

1шт.

12

D45832

SPARE PART Engine oil pressure

1шт.

13

221-326

COUPLING,Pipe, 1/8" NPT

Female

1шт.

14

218-1021

HYD CONNECTOR,3/8" - 24 Male JIC x 1/8" - 27 Male NPTF

Male, straight

1шт.

15

D45834

SPARE PART Engine oil pressure gauge (48" long)

1шт.

16

D45849

SPARE PART Mounting

1шт.

17

D45836

CLAMP - mounting

1шт.

18

218-1051

ELBOW,90 Degree, 3/8"-24, 37 Degree x 1/8"-27, NPTF

Male

1шт.

19

221-1051

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING - pipe

1шт.

20

D45831

AMMETER

GAUGE, alternator amperage

1шт.

21

D45827

SPARE PART Engine water temperature

1шт.

22

49885

CLAMP

Mounting

1шт.

23

D45837

CLAMP - mounting

1шт.

24

187-1003

SPARE PART Self-tapping, Shakeproof (#8-32 NC x 5/16")

3шт.

25

D45839

COVER - hourmeter cutout (If used)

1шт.

D39286

GAUGE

KIT - engine hourmeter (Optional), Includes Ref. 26 - 28A

1шт.

26

NSS

NOT SOLD SEPARAT

METER - engine hours

1шт.

D39284

KIT

PACKET - mounting hardware, Includes Ref. 27 and 28

1шт.

27

173-61

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS - #6 - 32 NC x 1/2"

3шт.

28

193-24

LOCK WASHER,Int Tooth, #6

3шт.

28a

D39285

ELECTRICAL WIRE

WIRE Hourmeter, 36" long (Cut as required)

2шт.

29

D35079

DAMPER

Vibration

1шт.

30

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

RHMS

3шт.

31

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

3шт.

32

129-640

NUT,#6-32, Brass

Hex

3шт.

33

A30858

SWITCH

STARTING SWITCH - push button type

1шт.

34

D45953

SWITCH - light

1шт.

35

D47342

WIRE ASSEMBLY - light, Serial Range: switch-fuse

1шт.

36

171-44

SCREW - flat head maching (#5-40 NC x 1/2")

2шт.

D45954

FUSE ASSEMBLY - 30 amp., Includes Ref. 37 and 38

1шт.

37

NSS

NOT SOLD SEPARAT

HOLDER - fuse

1шт.

38

223-30

FUSE

30 amp.

1шт.

39

129-630

NUT,#5-40, Brass

Hex

2шт.

40

D47341

SPARE PART ASSEMBLY -, Serial Range: fuse-ammeter

1шт.

D45656

SPARE PART Includes Ref. 41 - 45

1шт.

41

D46255

COVER - lamp

1шт.

42

D37919

LENS

Lamp

1шт.

43

T33472

SPARE PART

1шт.

44

NSS

NOT SOLD SEPARAT

SOCKET - lamp

1шт.

45

D39095

NUT

Hex (Special)

1шт.

46

D45822

WIRE - starter, Serial Range: switch-ammeter

1шт.
