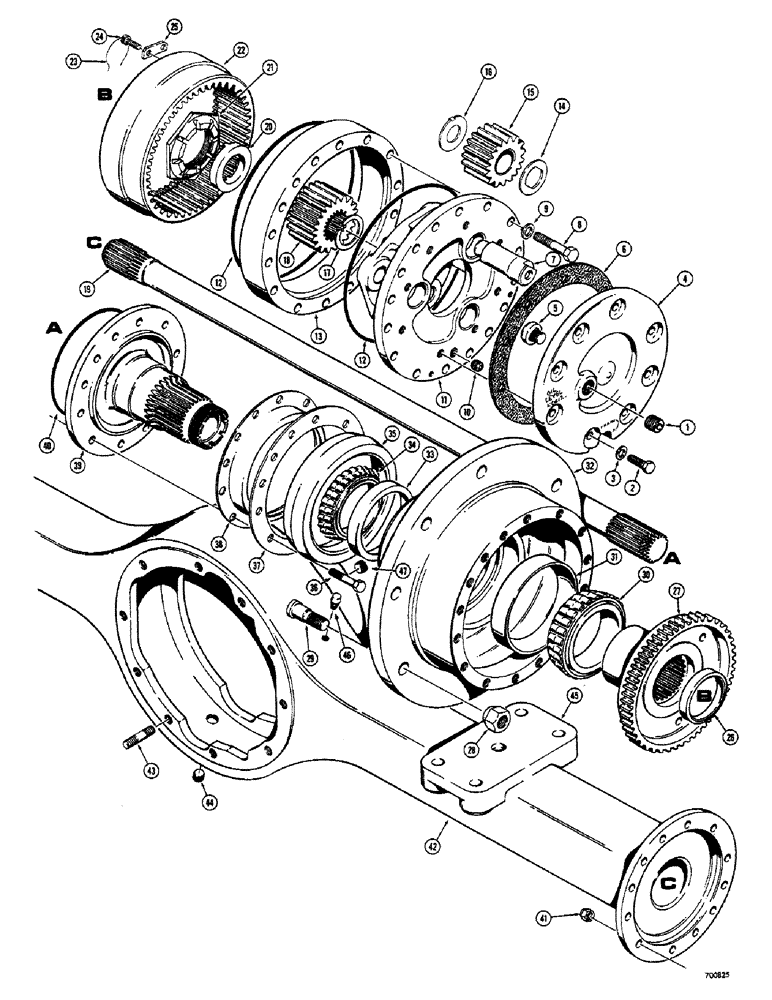

Запчасти Case 300 (094) - PR 67 AXLE AND PLANETARY (04) - UNDERCARRIAGE

D45642

AXLE ASSEMBLY - complete, PR 67 (Hi-Traction), Includes: Ref. 1 - 47

1шт.

D45643

AXLE ASSEMBLY - complete, PR 67 (No-Spin), Includes: Ref. 1 - 47

1шт.

1

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- filler, square socket head (3/4" NPT)

2шт.

2

113-307

X

HHCS - 7/16" - 14 NC x 1-1/8"

16шт.

3

D47367

WASHER

- special

16шт.

D47359

COVER ASSEMBLY - planetary, Includes: Ref. 4 and 5

2шт.

4

NSS

NOT SOLD SEPARAT

COVER - planetary

1шт.

5

A12980

BUTTON

- thrust

1шт.

6

A12910

GASKET,0.4mm Thk

- cover

2шт.

7

A40146

SHAFT

- planetary pinion gear

6шт.

8

113-453

X

HHCS - 1/2" - 13 NC x 3-1/4"

32шт.

9

D47366

WASHER

- special

32шт.

10

221-675

PLUG

- drain, magnetic (1/2" NPT)

2шт.

11

D47363

SPIDER - planetary

2шт.

12

A18218

O-RING,10.125" ID x 10.312" OD x 0.103"

SEAL - "O" ring, spacer

4шт.

13

D47356

SPACER -, Serial Range: spider-hub

2шт.

14

A12904

WASHER

- thrust, outer

6шт.

15

D47364

GEAR - pinion, planetary

6шт.

16

A40145

WASHER

- thrust, inner

6шт.

17

A18241

RING

SNAP RING - sun gear

2шт.

18

D47362

GEAR - sun, planetary

2шт.

19

D47361

SHAFT - axle, PR67

2шт.

20

D47365

LOCK - bearing nut

2шт.

21

A18284

NUT

- bearing adjusting

2шт.

22

D47358

GEAR - ring, planetary

2шт.

23

391-614

LOCK WIRE - bolt, #16 (6" long) Cut as required

8шт.

24

G49000

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Drilled

- special, drilled head

16шт.

25

A12914

LOCK ASSY

LOCK - ring gear hub

8шт.

D47357

HUB ASSEMBLY - planetary ring gear, Includes: Ref. 26 and 27

2шт.

26

A18287

SLEEVE

- hub

1шт.

27

NSS

NOT SOLD SEPARAT

HUB - planetary ring gear

1шт.

28

A12522

WHEEL NUT

- stud, wheel mounting

16шт.

29

A13112

STUD

STUD - wheel, Serial Range: rim-hub

16шт.

30

A18281

ROLLER BEARING

CONE - bearing, tapered roller type (Outer)

2шт.

D47352

HUB ASSEMBLY - rim, Includes: Ref. 31 - 33

2шт.

31

A28184

BEARING CUP

CUP - bearing, tapered roller type (Outer)

1шт.

32

NSS

NOT SOLD SEPARAT

HUB - rim

1шт.

33

A27146

BEARING, CUP,125.41mm OD x 19.84mm W

CUP - bearing, tapered roller type (Inner)

1шт.

34

L30658

ROLLER BEARING

CONE - bearing, tapered roller type (Inner)

2шт.

35

D47354

GUARD - oil seal

2шт.

36

114-502

X

HHCS - 9/16" - 18 NF x 2-1/2"

24шт.

37

D47353

COVER PLATE

SPACER - seal

2шт.

38

L30659

OIL SEAL

- oil, rim hub

2шт.

39

D47355

SPINDLE - planetary

2шт.

40

A18280

O-RING,0.139" Thk x 6.734" ID, -261, Cl 5, 75 Duro

SEAL - "O" ring, spindle to axle housing

2шт.

41

131-11

NUT,9/16"-18, GB

LOCK, 9/16"-18, GB

24шт.

D47346

HOUSING ASSEMBLY - axle, Includes: Ref. 42 - 45

1шт.

42

NSS

NOT SOLD SEPARAT

HOUSING - axle

1шт.

43

A18207

STUD

- carrier to axle housing

10шт.

44

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- drain, square socket head (3/4" NPT)

1шт.

45

D51199

PAD - axle mounting

2шт.

46

A12928

BREATHER

- axle housing

1шт.

47

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- filler, square socket head (3/4" NPT)

1шт.
