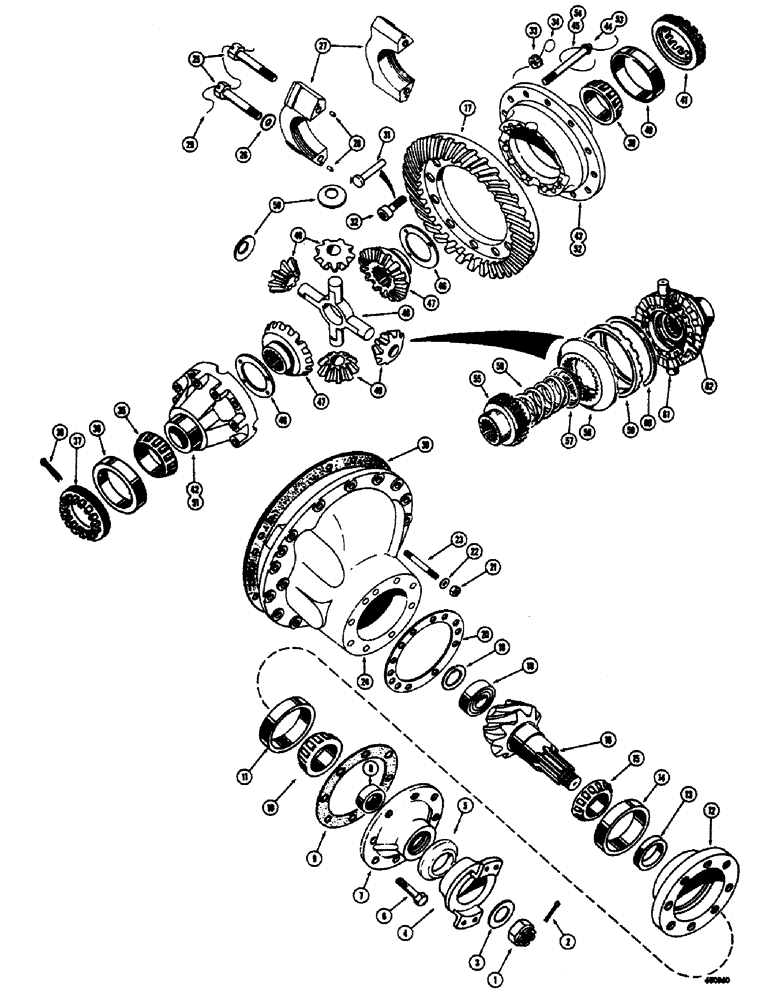

Запчасти Case 300 (090) - DIFFERENTIAL (04) - UNDERCARRIAGE

D45631

AXLE ASSEMBLY - complete, PR75 (Hi-Traction) Used before tractor serial no. 5770, Includes: Ref. 1 - 28

1шт.

D45632

AXLE ASSEMBLY - complete, PR75 (No-Spin) Used before tractor serial no. 5770, Includes: Ref. 1 - 28

1шт.

D48290

AXLE ASSEMBLY - complete, PR75 (Hi-Traction) Used on tractor serial no. 5770 and after, Includes: Ref. 1 - 28

1шт.

D48291

AXLE ASSEMBLY - complete, PR75 (No-Spin) Used on tractor serial no. 5770 and after, Includes: Ref. 1 - 28

1шт.

D45642

AXLE ASSEMBLY - complete, PR67 (Hi-Traction), Includes: Ref. 1 - 28

1шт.

D45643

AXLE ASSEMBLY - complete, PR67 (No-Spin), Includes: Ref. 1 - 28

1шт.

1

L30731

SLOTTED NUT

- yoke to pinion shaft

1шт.

3

A13124

WASHER

- special

1шт.

D47349

YOKE ASSEMBLY - drive shaft, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

YOKE - drive shaft

1шт.

5

A18189

SLINGER

- oil

1шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

A18184

COVER

ASSEMBLY - pinion shaft, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

COVER - pinion shaft

1шт.

8

A18185

OIL SEAL

- oil

1шт.

9

A18190

GASKET

-, Serial Range: cover-cage

1шт.

L30333

CAGE

ASSEMBLY - pinion shaft bearing, Includes: Ref. 10 - 15

1шт.

10

A13160

ROLLER BEARING,1.4375" ID x 0.933"

CONE - bearing, tapered roller type

1шт.

11

A13161

BEARING CUP,88.5mm OD x 17.46mm W

CUP - bearing, tapered roller type

1шт.

12

NSS

NOT SOLD SEPARAT

CAGE - pinion shaft bearing

1шт.

13

A18358

SPACER

- bearing, .172" thick

1шт.

13

A18359

SPACER

- bearing, .173" thick

1шт.

13

A18360

SPACER

- bearing, .174" thick

1шт.

13

A18361

SPACER

- bearing, .175" thick

1шт.

13

A18362

RING

SPACER - bearing, .176" thick

1шт.

13

A18363

SPACER

- bearing, .177" thick

1шт.

13

A18364

SPACER

- bearing, .183" thick

1шт.

13

A18365

SPACER

- bearing, .189" thick

1шт.

13

A18366

SPACER

- bearing, .195" thick

1шт.

13

A18367

SPACER

- bearing, .201" thick

1шт.

L30395

BEARING

CUP AND CONE - bearing, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

CUP - bearing, tapered roller type

1шт.

15

NSS

NOT SOLD SEPARAT

CONE - bearing, tapered roller type

1шт.

D47348

GEAR

SET - drive and pinion, matched set (Before tractor serial no. 5770), Includes: Ref. 16 and 17

1шт.

D48292

GEAR SET

- drive and pinion, matched set (Tractor serial no. 5770 and after), Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

GEAR - pinion

1шт.

17

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

18

A18182

BALL BEARING,27.75mm ID x 62mm OD x 18mm W

BEARING - inner, drive pinion (Ball type)

1шт.

19

A18199

SNAP RING,#106, Ext

Ring, Snap, , bearing #106, Ext

1шт.

20

A18197

SHIM,.003" Thk

Bearing cage .003" Thk

1шт.

20

A18198

SHIM,.005" Thk

Bearing cage .005" Thk

1шт.

21

129-530

NUT,7/16"-20, G8

10шт.

22

D47367

WASHER

- special (7/16")

10шт.

23

A18207

STUD

- carrier to axle housing

10шт.

A18168

CARRIER AND CAP ASSEMBLY - differential, Includes: Ref. 24 - 28

1шт.

24

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

25

A18171

CAP

BOLT - special

4шт.

26

L30737

WASHER

- special

4шт.

27

NSS

NOT SOLD SEPARAT

CAP - bearing

2шт.

28

NSS

NOT SOLD SEPARAT

DOWEL - cap

4шт.

29

391-625

LOCK WIRE - bolt, #16 (18" long) Cut as required

2шт.

30

A18210

X

GASKET - carrier to axle housing

1шт.

31

NSS

NOT SOLD SEPARAT

RIVET - drive gear to differential case (Use Refs. 32-34)

12шт.

32

D47597

BOLT

- special, drive gear to differential case

12шт.

33

129-282

SLOTTED NUT

- hex., slotted (1/2" - 20 NF)

12шт.

34

391-618

ELECTRICAL WIRE

LOCK WIRE - bolt, #16 (10" long) Cut as required

6шт.

35

A26847

ROLLER BEARING,2.5" ID x 0.866"

CONE - bearing, tapered roller type (R.H. rear - L.H. front)

1шт.

36

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, tapered roller type (R.H. rear - L.H. front)

1шт.

37

A18194

RING

- bearing adjusting (R.H. rear - L.H. front)_

1шт.

38

A18196

HARDWARE

PIN - cotter, special

2шт.

39

A18173

ROLLER BEARING

CONE - bearing, tapered roller type (L.H. rear - R.H. front)

1шт.

40

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP - bearing, tapered roller type (L.H. rear - R.H. front)

1шт.

41

A18195

RING

- bearing adjusting (L.H. rear - R.H. front)

1шт.

L34022

TRANSMISSION

DIFFERENTIAL CASE AND GEAR ASSEMBLY - Hi-Traction, hi-traction differential only, Includes: Ref. 42 - 50

1шт.

D47347

CASE ASSY.

CASE ASSEMBLY - differential, hi-traction differential only, Includes: Ref. 42 - 44

1шт.

42

NSS

NOT SOLD SEPARAT

CASE - differential, plain half, hi-traction differential only

1шт.

2

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

43

NSS

NOT SOLD SEPARAT

CASE - differential, flange half, hi-traction differntial only

1шт.

44

L30668

SCREW

BOLT - special, drilled head, hi-traction differential only

8шт.

45

391-627

ELECTRICAL WIRE

LOCK WIRE - bolt, #16 (22" long) Cut as required, hi-traction differential only

1шт.

46

F9740

WASHER,60.68mm ID x 90.42mm OD x 1.58mm Thk

- thrust, side gear, hi-traction differential only

2шт.

47

A18179

GEAR

- differential, side, hi-traction differential only

2шт.

48

A18181

U-JOINT SPIDER

SPIDER - differential, hi-traction differential only

1шт.

49

A18175

PINION

GEAR - differential, pinion, hi-tracton differential only

4шт.

50

A18176

DISC

WASHER - thrust, hi-traction differnetil only

4шт.

D47420

DIFFERENTIAL CASE AND GEAR ASSEMBLY - No-Spin, no-spin differential only, Includes: Ref. 51 - 62

1шт.

D47347

CASE ASSY.

CASE ASSEMBLY - differential, no-sppin differnetil only, Includes: Ref. 51 - 53

1шт.

51

NSS

NOT SOLD SEPARAT

CASE - differential, plain half, no-spin differential only

1шт.

52

NSS

NOT SOLD SEPARAT

CASE - differential, flange half, no-spin differential only

1шт.

53

L30668

SCREW

BOLT - special, drilled head, no-spin differential only

8шт.

54

391-627

ELECTRICAL WIRE

LOCKWIRE - bolt, #16 (22" long) Cut as required, no-spin differential only

1шт.

D47380

DIFFERENTIAL ASSY

NO-SPIN ASSEMBLY - differential, no-spin differential only, Includes: Ref. 55 - 62

1шт.

55

D47381

GEAR - differential, side, no-spin differential only

2шт.

56

D47382

SPRING - differential, no-spin differential only

2шт.

57

D47383

RETAINER - spring, no-spin differential only

2шт.

58

D47384

CLUTCH - driven, no-spin differential only

2шт.

59

D47385

RING - holdout, no-spin differential only

2шт.

D48207

SPIDER AND CAM ASSEMBLY - differential, no-spin differential only, Includes: Ref. 60 - 62

1шт.

60

NSS

NOT SOLD SEPARAT

SNAP RING - differential, no -spin differential only

1шт.

61

NSS

NOT SOLD SEPARAT

SPIDER - differential, no-spin differential only

1шт.

62

NSS

NOT SOLD SEPARAT

CAM - differential, no-spin differential only

1шт.
