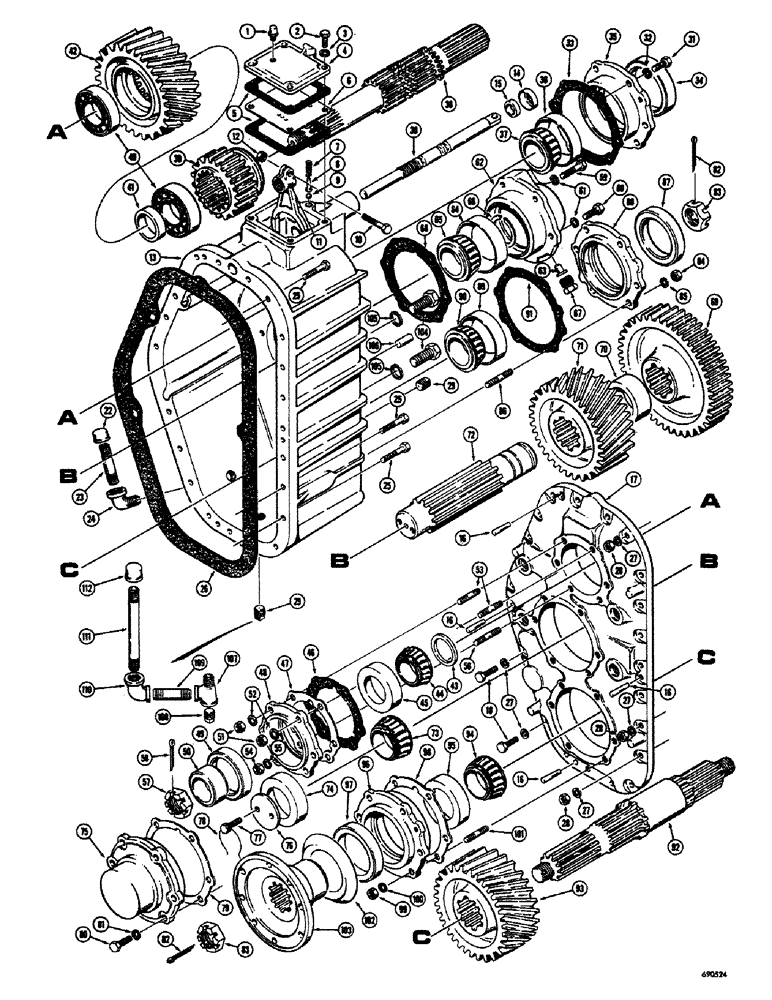

Запчасти Case 300 (080) - TRANSFER CASE (03) - TRANSMISSION

D45634

TRANSFER CASE ASSEMBLY - Used before tractor S/N 5770, Includes: Ref. 1 - 103

1шт.

D48293

TRANSFER CASE ASSEMBLY - Used on tractor S/N 5770 and after, Includes: Ref. 1 - 103

1шт.

1

T25082

BREATHER - transfer case

1шт.

2

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

D46720

COVER - gear shift

1шт.

5

D46722

GASKET - shift cover

2шт.

6

D46721

PLATE - breather, shift cover

1шт.

7

D46718

SPRING - shift detent

1шт.

8

D46719

PLUNGER - shift detent

1шт.

9

211-7

BALL,1/4" Dia

- shift detent 1/4" Dia

1шт.

10

114-239

X

HHCS - 3/8" - 24 NF x 1-3/4"

1шт.

11

D46723

FORK - range shift (High, neutral or low)

1шт.

12

131-5

LOCK NUT,3/8"-16, GB

NUT - hex. (3/8" - 24 NF)

1шт.

D46704

CASE ASSEMBLY - transfer, Includes: Ref. 13 - 24

1шт.

13

NSS

NOT SOLD SEPARAT

CASE - transfer

1шт.

14

D46754

RETAINER

- shifter shaft packing

1шт.

15

D46753

PACKING

- shifter shaft

1шт.

16

139-107

PIN - taper, #7 x 1-1/2"

4шт.

17

NSS

NOT SOLD SEPARAT

COVER - transfer case, rear

1шт.

18

113-245

X

HHCS - 3/8" - 16 NC x 1"

2шт.

22

221-526

CAP

- (3/4" NPT) If used

1шт.

23

221-217

PIPE,Nipple, 3/4" NPT x 3"

NIPPLE - pipe (3/4" NPT x 3") Used on early models without parking brake

1шт.

24

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street, Used on early models without parking brake 90º, 3/4"-14, NPT

1шт.

25

25774R1

BOLT,Hex, 3/8" - 24 x 2", Gr 8

HHCS - 3/8" - 24 NF x 2"

21шт.

26

D46744

GASKET -, Serial Range: case-cover

1шт.

27

92-6

LOCK WASHER,3/8"

23шт.

28

129-524

NUT,3/8"-24, G8

21шт.

29

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - drain, square head (3/4" NPT)

1-2шт.

30

D46716

SHAFT - gear shift (High, neutral or low)

1шт.

31

113-307

X

HHCS - 7/16" - 14 NC x 1-1/8"

6шт.

32

92-7

LOCK WASHER,7/16"

6шт.

33

D46711

GASKET - mainshaft cover, front

1шт.

D46706

COVER ASSEMBLY - mainshaft, front, Includes: Ref. 34 - 36

1шт.

34

D46757

SEAL - oil

1шт.

35

NSS

NOT SOLD SEPARAT

COVER - mainshaft, front

1шт.

36

A7876

GASKET

CUP - bearing, tapered roller type

1шт.

37

D48115

CONE - bearing, tapered roller type

1шт.

38

D46736

MAINSHAFT - transfer case

1шт.

39

D46724

GEAR - sliding (Before tractor S/N 5770)

1шт.

D48294

GEAR - sliding (Tractor S/N 5770 and after)

1шт.

40

F21219

BEARING

- drive gear, ball type

2шт.

41

D46726

SPACER - bearing

1шт.

42

D46725

GEAR - drive (Before tractor S/N 5770)

1шт.

D48295

GEAR - drive (Tractor S/N 5770 and after)

1шт.

43

D46750

SPACER - rear bearing, mainshaft

1шт.

44

A20301

CUP

CONE - bearing, tapered roller type

1шт.

45

F60825

CUP - bearing, tapered roller type

1шт.

46

D46731

GASKET - mainshaft cover, rear

1шт.

47

D46727

SHIM - mainshaft, .003" thick

1шт.

47

D46728

SHIM - mainshaft, .005" thick

1шт.

47

D46729

SHIM - mainshaft, .010" thick

1шт.

47

D46730

SHIM - mainshaft, .020" thick

1шт.

48

D46732

COVER - mainshaft, rear

1шт.

49

D46733

SEAL - mainshaft, rear

1шт.

50

D46737

SLEEVE - mainshaft, rear

1шт.

51

129-530

NUT,7/16"-20, G8

2шт.

52

193-86

LOCK WASHER,7/16"

WASHER - lock, internal Shakeproof () 7/16"

2шт.

53

D46751

STUD - mainshaft cover mounting, rear (Upper two)

2шт.

54

129-530

NUT,7/16"-20, G8

4шт.

55

92-7

LOCK WASHER,7/16"

4шт.

56

D46766

STUD - mainshaft cover mounting, rear (Center and lower two)

4шт.

57

F19657

NUT

- hex., slotted (1-1/4" - 18 NF)

1шт.

59

113-325

HHCS - 7/16" - 14 NC x 2-1/4"

2шт.

58

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

60

113-307

X

HHCS - 7/16" - 14 NC x 1-1/8"

3шт.

61

92-7

LOCK WASHER,7/16"

5шт.

D46705

COVER ASSEMBLY - idler shaft, front, Includes: Ref. 62 - 64

1шт.

62

NSS

NOT SOLD SEPARAT

COVER - idler shaft, front

1шт.

63

D46755

BUSHING - speedometer drive

1шт.

64

F60825

CUP - bearing, tapered roller type

1шт.

65

A10001

ROLLER BEARING,2.0625" ID x 1.193"

CONE - bearing, tapered roller type

1шт.

66

D46713

SNAP RING - idler shaft, front

1шт.

67

D46714

PLUG - speedometer driven gear hole

1шт.

68

D46711

GASKET - idler shaft cover, front

1шт.

69

D46748

GEAR - low, idler shaft (Before tractor S/N 5770)

1шт.

D48296

GEAR - low, idler shaft (Tractor S/N 5770 and after)

1шт.

70

D46747

SPACER - low and high gear

1шт.

71

D46746

GEAR - high, idler shaft

1шт.

72

D46712

IDLER SHAFT - transfer case

1шт.

73

D48115

CONE - bearing, tapered roller type

1шт.

D46709

COVER ASSEMBLY - idler shaft, rear, Includes: Ref. 74 and 75

1шт.

74

A7876

GASKET

CUP - bearing, tapered roller type

1шт.

75

NSS

NOT SOLD SEPARAT

COVER - idler shaft rear

1шт.

76

D46738

LOCK PLATE - idler shaft

1шт.

77

D46760

BOLT

- special, drilled head (When stock is exhausted, order 2 - 113-313 bolt and 1 - D52314 plate

2шт.

77a

113-313

BOLT - special, solid head

2шт.

78

391-613

WIRE

LOCK WIRE - bolt, #16 (4" long) Used with D46760 bolts

1шт.

78a

D52314

PLATE

LOCK PLATE - used with 113-313 bolts

1шт.

79

D46739

SHIM - idler shaft, .003" thick

1шт.

79

D46740

SHIM - idler shaft, .005" thick

1шт.

79

D46741

SHIM - idler shaft, .010" thick

1шт.

79

D46742

SHIM - idler shaft, .020" thick

1шт.

80

113-307

X

HHCS - 7/16" - 14 NC x 1-1/8"

6шт.

81

92-7

LOCK WASHER,7/16"

6шт.

83

D46765

LOCK NUT

NUT - hex., slotted (1-1/4" - 18 NF)

2шт.

84

129-530

NUT,7/16"-20, G8

6шт.

85

92-7

LOCK WASHER,7/16"

6шт.

86

D46766

STUD - axle drive shaft cover mounting, front

6шт.

D46708

COVER ASSEMBLY - axle drive shaft, front, Includes: Ref. 87 - 89

1шт.

87

D46757

SEAL - oil

1шт.

88

NSS

NOT SOLD SEPARAT

COVER - axle drive shaft, front

1шт.

89

A12946

BEARING CUP

CUP - bearing, tapered roller type

1шт.

90

D46749

COVER - bearing, tapered roller type

1шт.

91

D46711

GASKET - axle drive shaft cover, front

1шт.

92

D46743

SHAFT - axle drive

1шт.

93

D46745

GEAR - axle drive shaft, driven

1шт.

94

D48115

CONE - bearing, tapered roller type

1шт.

D46707

COVER ASSEMBLY - axle drive shaft, rear, Includes: Ref. 95 - 97

1шт.

95

A7876

GASKET

CUP - bearing, tapered roller type

1шт.

96

NSS

NOT SOLD SEPARAT

COVER - axle drive shaft, rear

1шт.

97

D46757

SEAL - oil

1шт.

98

D46739

SHIM - axle drive shaft, .003" thick

1шт.

98

D46740

SHIM - axle drive shaft, .005" thick

1шт.

98

D46741

SHIM - axle drive shaft, .010" thick

1шт.

98

D46742

SHIM - axle drive shaft, .020" thick

1шт.

99

129-530

NUT,7/16"-20, G8

6шт.

100

92-7

LOCK WASHER,7/16"

6шт.

101

D46766

STUD - axle drive shaft cover mounting, rear

6шт.

D46710

FLANGE ASSEMBLY - axle drive shaft, rear, Includes: Ref. 102 and 103

1шт.

102

D46759

DEFLECTOR - dirt

1шт.

103

NSS

NOT SOLD SEPARAT

FLANGE - axle drive shaft, rear

1шт.

104

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

4шт.

105

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

106

T30630

DOWEL

- 5/8" dia. x 1"

2шт.

107

221-694

TEE - pipe, service (3/4" NPT)

1шт.

108

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - drain, square socket head (3/4" NPT)

1шт.

109

221-219

PLUG

NIPPLE - pipe (3/4" NPT x 4")

1шт.

110

221-378

ELBOW,90 Degree, 3/4" NPT

- female, pipe (90 degrees) 3/4" NPT

1шт.

111

221-227

NIPPLE - pipe (3/4" NPT x 8")

1шт.

82

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

2шт.

112

221-526

CAP

- pipe (3/4" NPT)

1шт.
