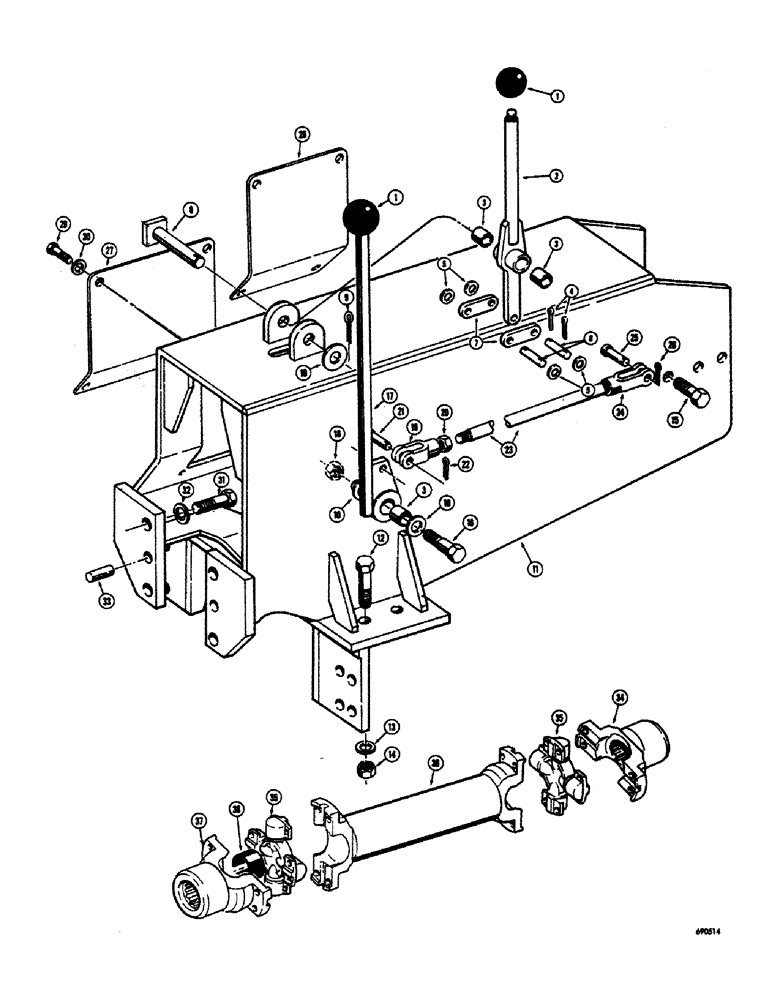

Запчасти Case 300 (064) - "U" JOINT HOUSING AND "U" JOINT, TRACTOR SERIAL NO. 5770 AND AFTER (03) - TRANSMISSION

1

A23885

KNOB

- control levers

2шт.

2

D48299

LEVER - shift, transfer case

1шт.

3

D45164

BUSHING - pin, nylon (3/4" I.D.)

3шт.

4

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

4шт.

5

95-8

WASHER,1/2"

- standard wrot 1/2"

4шт.

6

D45679

PIN - link

2шт.

7

D45678

LINK - lever to transfer case

2шт.

8

D45711

PIN - lever mounting

1шт.

9

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

1шт.

10

95-12

WASHER,3/4"

- standard wrot () 3/4"

3шт.

11

D48298

HOUSING - "U" joint

1шт.

12

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

4шт.

13

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

14

25-1012

NUT,3/4"-10, G5

4шт.

15

13-920

CAPSCREW,Hex, 9/16" - 12 x 1 1/4", Gr 5

HHCS - 9/16" - 12 NC x 1-1/4"

6шт.

16

D48311

BOLT - special, reverse lever

1шт.

17

D48310

LEVER - reverse

1шт.

18

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam (1/2"-13 NC)

1шт.

19

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - reverse lever, adjustable

1шт.

20

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

1шт.

21

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

22

132-48

COTTER PIN,1/8" x 1"

PIN - cotter, 3/16" dia. x 1-1/2"

1шт.

23

D48309

ROD - reverse control

1шт.

24

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - reverse control rod to reverse box

1шт.

25

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

1шт.

26

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

27

D48302

COVER - access, rear

1шт.

28

D48308

COVER - access, front

1шт.

29

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

8шт.

30

92-5

LOCK WASHER,5/16"

8шт.

31

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

4шт.

32

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

33

T30630

DOWEL

- "U" joint housing, 5/8" dia. x 1"

2шт.

D48303

LINE

"U" JOINT ASSEMBLY - transfer case drive, Includes: Ref. 34 - 38

1шт.

34

D48808

YOKE

- "U" joint, transmission end

1шт.

35

A12878

KIT

SPIDER AND BEARING ASSEMBLY - "U" joint

2шт.

36

D48809

SPACER

SHAFT - transmission to transfer case

1шт.

37

D45990

YOKE

- "U" joint, at transfer case end, Includes: Ref. 38

1шт.

38

A56229

DUST CAP - yoke

1шт.
