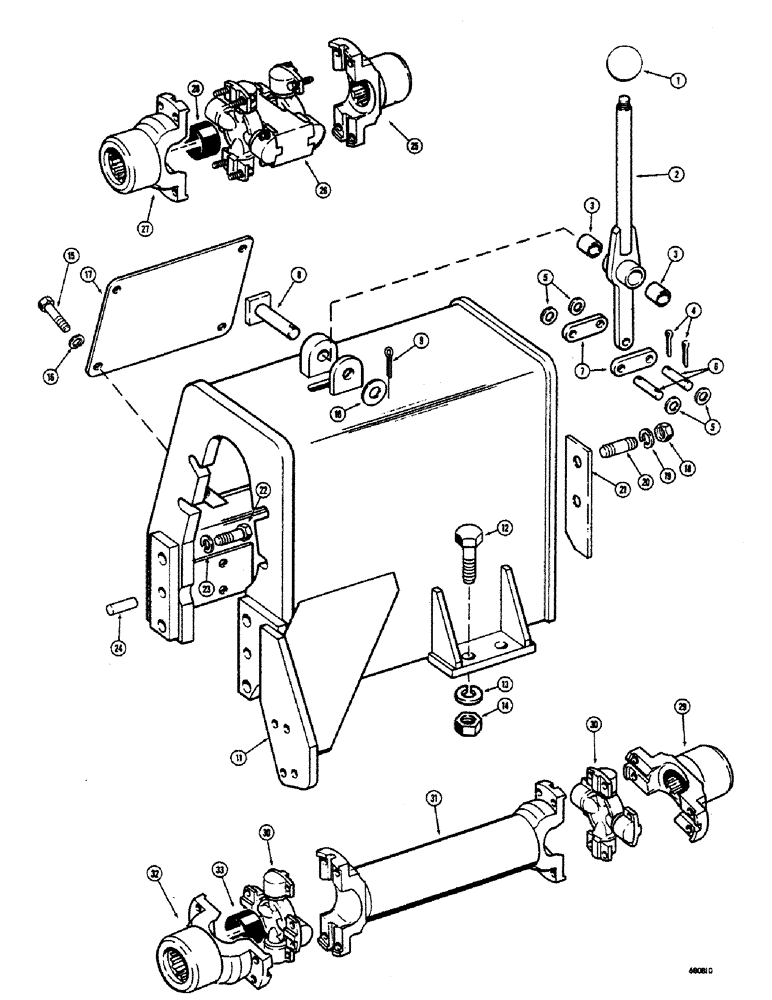

Запчасти Case 300 (060) - U-JOINT/ HSG,BEF TRACT SN 5770, FOR MOD W/ TORQU CONVRT,BEF TRAC SN 5248,W/ TORQ CNVRT SN 5248 & AFT (03) - TRANSMISSION

1

A23885

KNOB

- control lever

1шт.

2

D45677

LEVER - shift, transfer case

1шт.

3

D45164

BUSHING - pin, nylon (3/4" I.D.)

2шт.

4

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

4шт.

5

95-8

WASHER,1/2"

- standard wrot 1/2"

4шт.

6

D45679

PIN - link

2шт.

7

D45678

LINK - lever to transfer case

2шт.

8

D45711

PIN - lever mounting

1шт.

9

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

10

95-12

WASHER,3/4"

- standard wrot () 3/4"

1шт.

11

D45675

HOUSING - "U" joint (Used on models with torque converter before tractor serial no. 5248)

1шт.

D45676

HOUSING - "U" joint (Used on models with torque converter tractor serial no. 5248 and after)

1шт.

D45778

HOUSING - "U" joint (Used on models without torque converter)

1шт.

12

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

4шт.

13

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

14

25-1012

NUT,3/4"-10, G5

4шт.

15

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

16

92-8

LOCK WASHER,1/2"

4шт.

17

D45681

COVER - access, "U" joint housing

1шт.

18

129-560

NUT - hex. (5/8" - 18 NF)

4-6шт.

19

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4-6шт.

20

D47050

STUD - to transmission housing (Used before tractor serial no. 5255)

6шт.

20

D47132

STUD - to transmission housing (Used on tractor serial no. 5255 and after)

4шт.

21

D45682

SPACER - transmission at "U" joint housing (Used on tractor serial no. 5255 and after)

2шт.

22

13-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

4шт.

23

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

24

T30630

DOWEL

- "U" joint housing, 5/8" dia. x 1"

2шт.

D45627

"U" JOINT ASSEMBLY - transfer case to transmission, "U" joint (used on models with torque converter before tractor serial no. 5248), Includes: Ref. 25 - 28

1шт.

25

D45988

YOKE - "U" joint, transmission end, "U" joint (used on models with torque converter before tractor serial no. 5248)

1шт.

26

D45991

SPIDER AND BEARING ASSEMBLY - center, "U" joint (used on models with torque converter before tractor serial no. 5248)

1шт.

27

D45987

YOKE - "U" joint, transfer case end, "U" joint (used on models with torque converter before tractor serial no. 5248), Includes: Ref. 28

1шт.

28

A56229

DUST CAP - yoke, "U" joint (used on models with torque converter before tractor serial no. 5248)

1шт.

D45628

YOKE

"U" JOINT ASSEMBLY - transfer case to transmission, "U" joint (used on models with torque converter on trator serial no. 5248 and after), Includes: Ref. 25 - 28

1шт.

25

D45989

YOKE - "U" joint, transmission end, "U" joint (used on models with converter on tractor serial no. 5248 and afte)

1шт.

26

D45991

SPIDER AND BEARING ASSEMBLY - center, "U" joint (used on models with torque converter on tractor serial no. 5248 and after)

1шт.

27

D45990

YOKE

- "U" joint, transfer case end, "U" joint (used on models with torque converter on tractor serial no. 5248 and after), Includes: Ref. 28

1шт.

28

A56229

DUST CAP - yoke, "U" joint (used on models with torque converter on tractor serial no. 5248 and after)

1шт.

D45660

YOKE

"U" JOINT ASSEMBLY - transfer case, Includes: Ref. 29 - 33

1шт.

29

D45989

YOKE - "U" joint, transmission end

1шт.

30

A12878

KIT

SPIDER AND BEARING ASSEMBLY - "U" joint

2шт.

31

D46703

SHAFT - transmission to transfer case

1шт.

32

D45990

YOKE

- "U" joint, transfer case end, Includes: Ref. 33

1шт.

33

A56229

DUST CAP - yoke

1шт.
