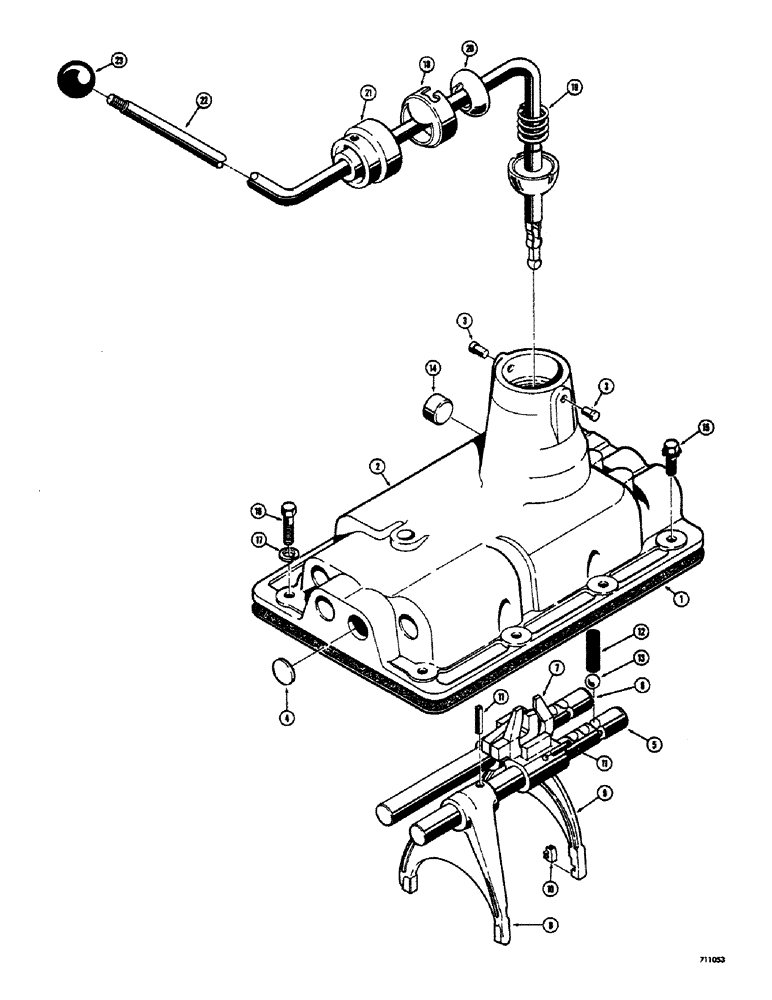

Запчасти Case 300 (058) - TRANSMISSION ASSEMBLY, TRACTOR SERIAL NO. 5770 AND AFTER, SHIFT LEVER, LINKAGE AND SHIFTING YOKES (03) - TRANSMISSION

D48300

TRANSMISSION ASSEMBLY - complete (Used on tractor serial no. 5770 and after), Includes: Ref. 1 - 22

1шт.

D52469

GEAR BOX ASSEMBLY - transmission (Includes Refs. 3 - 67 on Figure 54 ), Includes: Ref. 1 - 22

1шт.

1

D48778

GASKET -, Serial Range: cover-case

1шт.

D48365

COVER ASSEMBLY - transmission, Includes: Ref. 2 - 14

1шт.

D48366

COVER - transmission, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

COVER

1шт.

3

D48796

RIVET - trunnion

2шт.

4

41-100

PLUG - expansion, aluminum (7/8" dia.)

4шт.

5

D48789

RAIL - shift, first and second

1шт.

6

D48790

RAIL - shift, third and fourth

1шт.

7

D48791

LUG - first and second

1шт.

8

D48792

FORK - shift, first and second

1шт.

D48367

FORK ASSEMBLY - shift, third and fourth, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

FORK - shift

1шт.

10

D48797

INSERT - shift fork

2шт.

11

D48793

PIN - lock, lug and forks

3шт.

12

D48794

SPRING - poppet ball

2шт.

13

211-12

BALL,7/16 Dia

- poppet and interlock

4шт.

14

D48795

PLUG - interlock

1шт.

15

193-533

SCREW AND LOCKWASHER - cover (3/8" - 16 NC x 1")

6шт.

16

D48798

SCREW - cover rear, special

2шт.

17

92-7

LOCK WASHER,7/16"

2шт.

18

D48779

CAP

- cover

1шт.

19

D48780

SPRING - shift lever

1шт.

20

D48799

SEAT - spring

1шт.

21

D48800

BOOT - transmission cover

1шт.

22

D48306

LEVER - gearshift

1шт.

23

A23885

KNOB

- gearshift lever

1шт.
