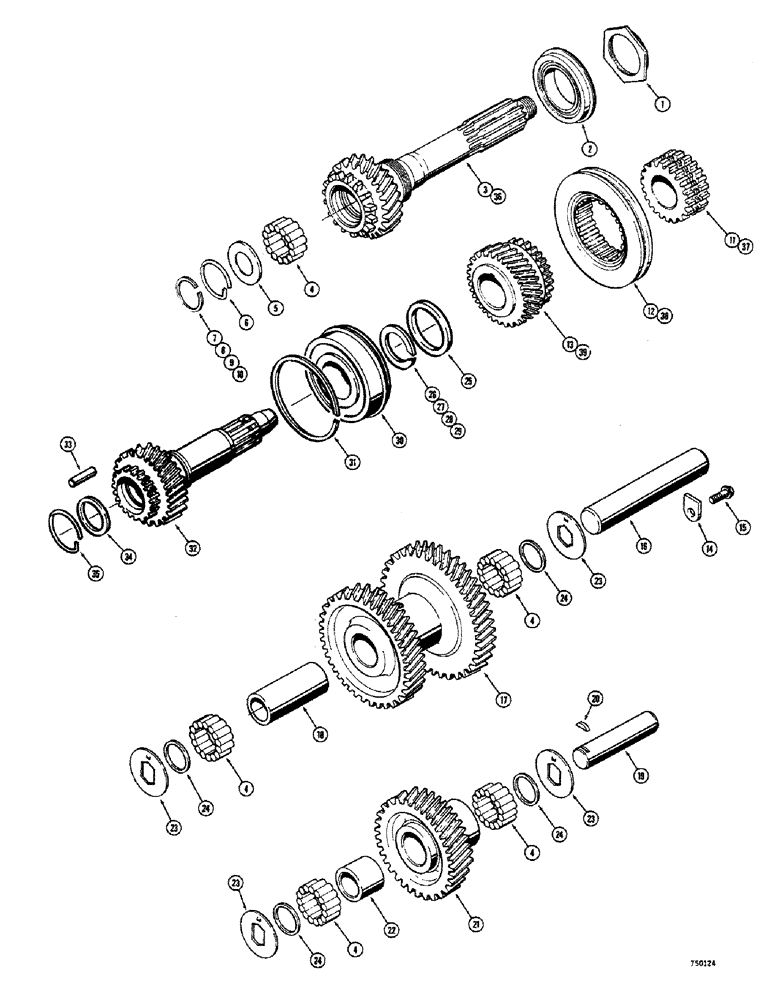

Запчасти Case 300 (052) - TRANSMISSION ASSEMBLY, TRACTOR SERIAL NO. 5770 AND AFTER, GEARS AND SHAFTS - REVERSE BOX (03) - TRANSMISSION

D48300

TRANSMISSION ASSEMBLY - complete (Used on tractor serial no. 5770 and after), Includes: Ref. 1 - 35

1шт.

D52468

REVERSE BOX ASSEMBLY - transmission (Includes Refs. 1 - 20 on Figure 50), Includes: Ref. 1 - 35

1шт.

1

D48387

NUT

- drive gear bearing retaining

1шт.

2

D48833

BEARING

- drive gear

1шт.

3

D48388

GEAR

- reverse box drive (When stock is exhausted, complete new D66317 service kit will be supplied consisting of four gears, not interchangeable with old)

1шт.

Old gears are stamped 97579 on stem portion of drive gear. New gears are stamped 11189. New D66317 service kit parts are not interchangeable with old gears. Ref. 3, 11, 12 and 13 will be supplied until exhausted, then a complete kit of all four new parts are required for service.

1шт.

4

D48828

NEEDLE - bearing, 14 req'd. per gear end

70шт.

5

D48389

WASHER - needle retaining

1шт.

6

D48390

SNAP RING - needle retaining washer

1шт.

7

D48391

SNAP RING - clutch gear (.086" - .088" thick)

1шт.

8

D48392

SNAP RING - clutch gear (.089" - .091" thick)

1шт.

9

D48393

SNAP RING - clutch gear (.092" - .094" thick)

1шт.

10

D48394

SNAP RING - clutch gear (.095" - .097" thick

1шт.

11

D48395

GEAR

- clutch (When stock is exhausted, complete D66317 kit is required) See Note

1шт.

Old gears are stamped 97579 on stem portion of drive gear. New gears are stamped 11189. New D66317 service kit parts are not interchangeable with old gears. Ref. 3, 11, 12 and 13 will be supplied until exhausted, then a complete kit of all four new parts are required for service.

1шт.

12

D48396

GEAR

- sliding clutch (When stock is exhausted, complete D66317 kit is required) See Note

1шт.

Old gears are stamped 97579 on stem portion of drive gear. New gears are stamped 11189. New D66317 service kit parts are not interchangeable with old gears. Ref. 3, 11, 12 and 13 will be supplied until exhausted, then a complete kit of all four new parts are required for service.

1шт.

13

D48397

GEAR

- reverse output (When stock is exhausted, complete D66317 kit is required) See Note

1шт.

Old gears are stamped 97579 on stem portion of drive gear. New gears are stamped 11189. New D66317 service kit parts are not interchangeable with old gears. Ref. 3, 11, 12 and 13 will be supplied until exhausted, then a complete kit of all four new parts are required for service.

1шт.

14

D48398

LOCK

- countershaft

1шт.

15

193-531

SCREW AND LOCKWASHER - lock (3/8" - 16 NC x 5/8"

1шт.

16

D48399

COUNTERSHAFT - reverse box

1шт.

17

D48400

GEAR - cluster

1шт.

18

D48401

SPACER - cluster

1шт.

19

D48402

SHAFT - reverse idler

1шт.

20

D48827

KEY - shaft

1шт.

21

D48403

GEAR - reverse idler

1шт.

22

D48404

SPACER - reverse idler gear

1шт.

23

D48405

WASHER - thrust

4шт.

24

D48406

WASHER - needle retaining

4шт.

25

D48410

SPACER - thrust

1шт.

26

D48756

SNAP RING - bearing retaining (.087" - .089" thick) also included with D52469 gear box assembly

1шт.

27

D48757

SNAP RING - bearing retaining (.090" - .092" thick) also included with D52469 gear box assembly

1шт.

28

D48758

SNAP RING - bearing retaining (.093" - .095" thick) also included with D52469 gear box assembly

1шт.

29

D48759

SNAP RING - bearing retaining (.096" - .098" thick) also included with D52469 gear box assembly

1шт.

30

D48834

BEARING ASSY,1.7717" ID x 3.937" OD x 0.9843"

BEARING - input drive gear, also included with D52469 gear box assembly

1шт.

31

D48760

SPACER - bearing, also included with D52469 gear box assembly

1шт.

32

D48761

GEAR - input drive, also included with D52469 gear box assembly, when stock is exhausted, order D51479 gear for service

1шт.

32

D51479

GEAR - input drive, also included with D52469 gear box assembly

1шт.

33

D48828

NEEDLE - bearing, drive gear, also included with D52469 gear box assembly

14шт.

34

D48389

WASHER - needle retaining, also included with D52469 gear box assembly

1шт.

35

D48390

SNAP RING - washer, also included with D52469 gear box assembly

1шт.

D66317

GEAR

KIT - service for gear and clutch, Includes: Ref. 36 - 39

1шт.

Old gears are stamped 97579 on stem portion of drive gear. New gears are stamped 11189. New D66317 service kit parts are not interchangeable with old gears. Ref. 3, 11, 12 and 13 will be supplied until exhausted, then a complete kit of all four new parts are required for service.

1шт.

36

D66322

GEAR WHEEL

GEAR - main drive

1шт.

37

D66323

GEAR WHEEL

GEAR - clutch

1шт.

38

D66320

CLUTCH ASSEMBLY

CLUTCH - sliding

1шт.

39

D66321

GEAR WHEEL

GEAR - reverse output

1шт.
