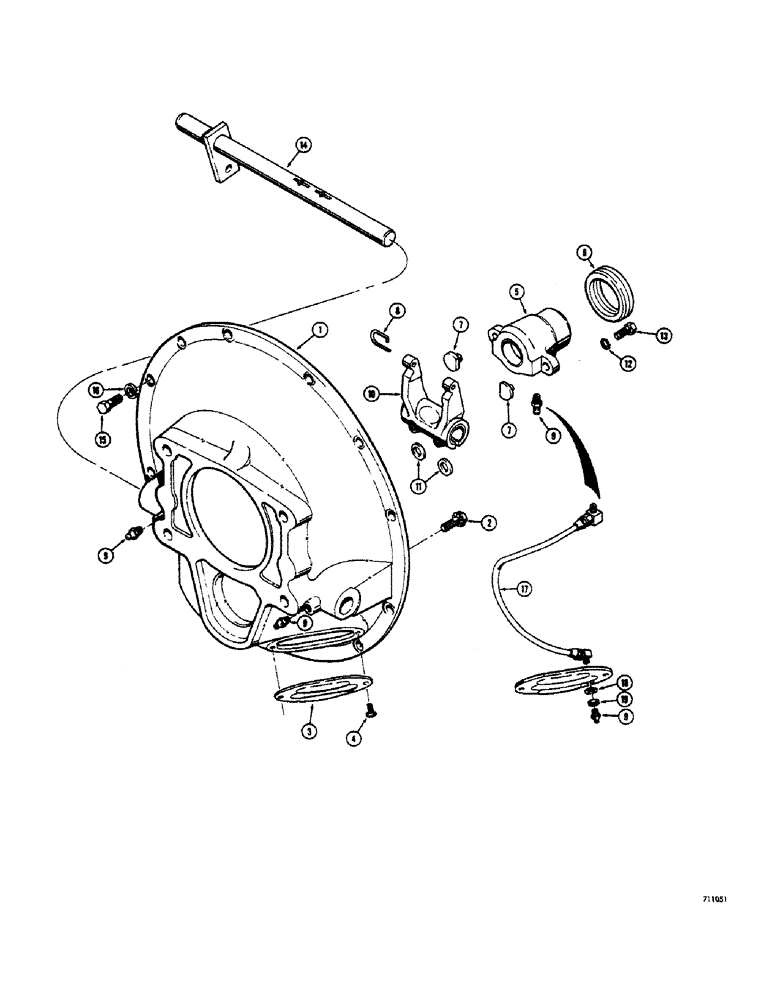

Запчасти Case 300 (048) - TRANSMISSION ASSEMBLY, TRACTOR SERIAL NO. 5770 AND AFTER, CLUTCH HOUSING & RELATED PARTS (03) - TRANSMISSION

D48300

TRANSMISSION ASSEMBLY - complete (Used on tractor serial no. 5770 and after), Includes: Ref. 1 - 14

1шт.

D52467

CLUTCH HOUSING ASSEMBLY - transmission, Includes: Ref. 1 - 13

1шт.

1

D48801

HOUSING - clutch

1шт.

2

113-502

HHCS - self-locking (9/16" - 12 NC x 1-1/2")

4шт.

3

D48368

FACING

COVER - access (Enlarge lube hole to 5/8" if required)

1шт.

4

193-534

SCREW AND LOCKWASHER - access cover (1/4" - 20 NC x 7/16")

2шт.

D48369

SLEEVE AND BEARING ASSEMBLY - clutch throw out, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

SLEEVE - clutch throw out

1шт.

6

D48830

BEARING - throw out

1шт.

7

D48371

PAD - clutch yoke

2шт.

8

D48372

SPRING - release linkage

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

3шт.

10

D48374

YOKE - clutch release

1шт.

11

D48375

WASHER - key

2шт.

12

193-11

LOCK WASHER,Ext Tooth, 7/16"

WASHER - lock, external Shakeproof (7/16")

2шт.

13

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

2шт.

14

D48373

SHAFT - clutch release

1шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

24шт.

16

92-6

LOCK WASHER,3/8"

24шт.

17

A40255

HOSE - lubrication line

1шт.

18

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

1шт.

19

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex., jam (5/8" - 18 NF)

1шт.
