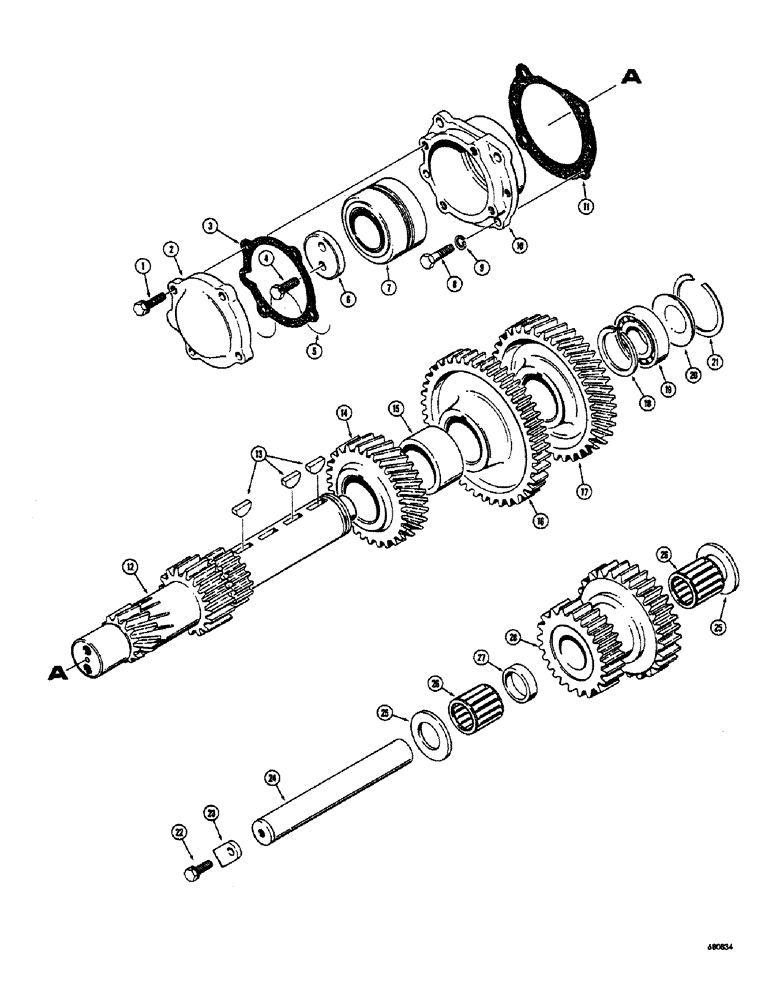

Запчасти Case 300 (046) - TRANSMSN ASSY,TRACTOR S/ N 5255 - 5769,CNTRSHFT & REVRS IDLER PARTS,CTRSHFT PARTS, REVRS IDLER PARTS (03) - TRANSMISSION

D45637

TRANSMISSION ASSEMBLY - complete (Used on tractor serial no. 5255 - 5769), Includes: Ref. 1 - 28

1шт.

1

D47030

BOLT AND LOCKWASHER ASSEMBLY - special

4шт.

2

D47109

CAP - countershaft, rear

1шт.

3

D47110

GASKET - cap

1шт.

4

D47339

BOLT - special, drilled head

2шт.

5

391-708

LOCK WIRE - BOLT, #18 (15" long) Cut as required

1шт.

6

D47100

RETAINING PLATE - countershaft, rear

1шт.

7

D47116

BEARING - tapered roller type, double (Countershaft)

1шт.

8

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

9

92-7

LOCK WASHER,7/16"

4шт.

10

D47107

BEARING ADAPTER - rear countershaft bearing

1шт.

11

D47108

GASKET - adapter

1шт.

12

D47176

PIPE

COUNTERSHAFT - transmission

1шт.

13

126-34

WOODRUFF KEY,#E, 3/8" x 1 1/4"

KEY - #1210 Woodruff

3шт.

14

D47175

GEAR - transmission, third

1шт.

15

D47178

SPACER - overdrive gear replacement

1шт.

16

D47174

GEAR - transmission, P.T.O.

1шт.

17

D47177

GEAR - transmission, countershaft drive

1шт.

18

D46799

SNAP RING - countershaft

1шт.

19

D47115

ROLLER ASSY.

BEARING - roller type, countershaft

1шт.

20

41-52

PLUG,Exp, 3 1/4"

- expansion, 3-1/4" dia.

1шт.

21

D47128

SNAP RING - plug retaining

1шт.

22

D47029

BOLT AND LOCKWASHER ASSEMBLY - special, reverse idler parts

1шт.

23

D46794

LOCK PLATE - reverse idler shaft, reverse idler parts

1шт.

24

D47101

SHAFT - reverse idler, reverse idler parts

1шт.

25

D47112

WASHER - thrust, reverse idler, reverse idler parts

2шт.

26

D47114

BEARING - roller type, reverse idler parts

2шт.

27

D47111

SPACER - reverse idler bearings, reverse idler parts

1шт.

28

D47121

GEAR - reverse idler, reverse idler parts

1шт.
