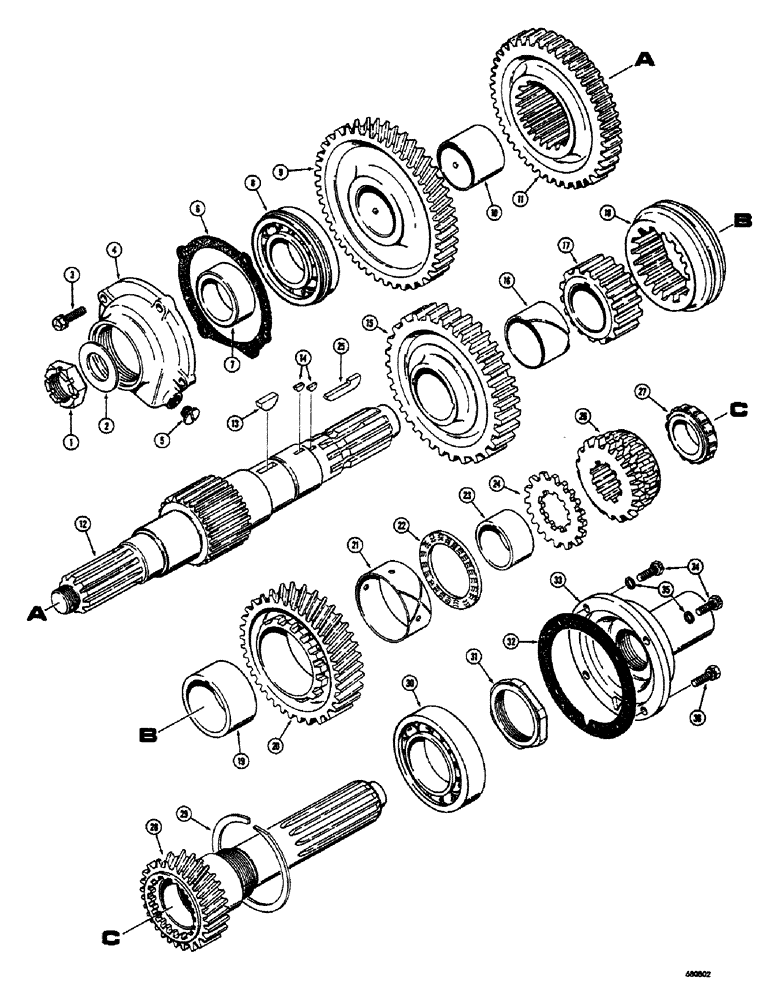

Запчасти Case 300 (044) - TRANSMISSION ASSEMBLY, TRACTOR SERIAL NO. 5255 TO 5769, MAINSHAFT AND RELATED PARTS (03) - TRANSMISSION

D45637

TRANSMISSION ASSEMBLY - complete (Used on tractor serial no. 5255 - 5769, Includes: Ref. 1 - 36

1шт.

1

D47098

NUT - hex., slotted (Special)

1шт.

2

D47099

WASHER - special

1шт.

3

D47031

BOLT AND LOCKWASHER ASSEMBLY - special

4шт.

4

D47103

BEARING COVER - mainshaft, rear

1шт.

5

D47041

PLUG - housing

1шт.

6

D47104

GASKET - cover

1шт.

7

D47119

SPACER - speedometer gear replacement

1шт.

8

D47118

BEARING - ball type

1шт.

D46791

GEAR ASSEMBLY - transmission, first gear, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

GEAR - transmission, first gear

1шт.

10

D47171

BUSHING - gear

1шт.

11

D47168

GEAR - transmission, first and reverse gear

1шт.

12

D47166

MAINSHAFT - transmission

1шт.

13

126-34

WOODRUFF KEY,#E, 3/8" x 1 1/4"

KEY - #1210 Woodruff

1шт.

14

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

(No. 404) #3, 1/8" x 1/2"

2шт.

D46792

GEAR ASSEMBLY - transmission, second gear, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

GEAR - transmission, second gear

1шт.

16

D47172

BUSHING - gear

1шт.

17

D47165

GEAR - transmission, second and third gear

1шт.

18

D47169

COLLAR - clutch, second and third gear

1шт.

19

D47162

SLEEVE - third gear

1шт.

D46793

GEAR ASSEMBLY - transmission, third gear, Includes: Ref. 20 and 21

1шт.

20

NSS

NOT SOLD SEPARAT

GEAR - transmission, third gear

1шт.

21

D47173

BUSHING - gear

1шт.

22

D47164

WASHER - sleeve, rear

1шт.

23

D47163

SLEEVE - overdrive gear replacement

1шт.

24

D47167

WASHER - sleeve, front (Splined)

1шт.

25

D47081

KEY - washer

1шт.

26

D47170

CLUTCH - sliding, mainshaft

1шт.

27

D47126

BEARING - pilot, roller type

1шт.

28

D47122

CLUTCH SHAFT AND DRIVE GEAR - transmission mainshaft

1шт.

29

D47106

SNAP RING - drive gear

1шт.

30

D47117

BEARING - ball type, drive gear

1шт.

31

D47102

NUT - hex., special (Drive gear bearing)

1шт.

32

D47120

GASKET - bearing cover

1шт.

33

D47123

BEARING COVER - mainshaft, front

1шт.

34

D47033

BOLT - special, drilled head

2шт.

35

92-6

LOCK WASHER,3/8"

2шт.

36

D47030

BOLT AND LOCKWASHER ASSEMBLY - special

2шт.
