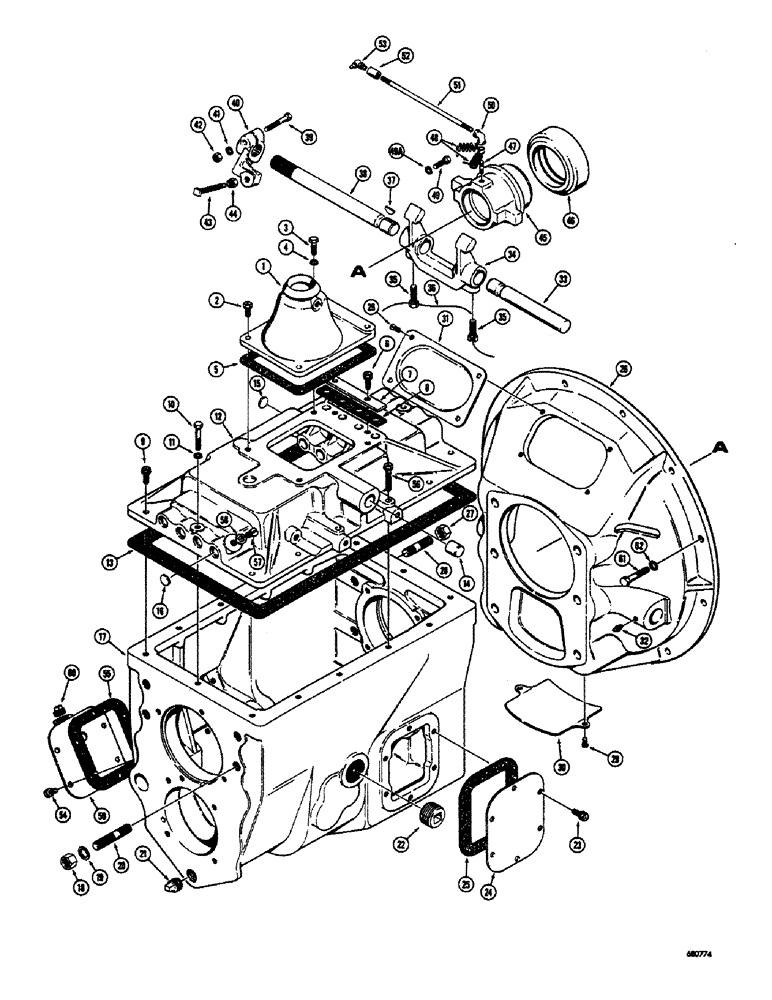

Запчасти Case 300 (040) - TRANSMISSION ASSEMBLY, TRACTORS SERIAL NO. 5255 TO 5769, TRANSMISSION & CLUTCH HOUSING & RELATD PART (03) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
D45637
TRANSMISSION ASSEMBLY - complete (Used on tractor serial no. 5255 through 5769), Includes: Ref. 1 - 58
1шт.
1
D47159
HOUSING - gear shift lever
1шт.
2
D47031
BOLT AND LOCKWASHER ASSEMBLY - special
2шт.
3
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
HHCS - 3/8" - 16 NC x 1-1/2"
2шт.
4
92-6
LOCK WASHER,3/8"
2шт.
5
D46795
GASKET
- lever housing to shifting bar housing
1шт.
6
D47031
BOLT AND LOCKWASHER ASSEMBLY - special
2шт.
7
D47066
COVER - positioning springs
1шт.
8
D47067
GASKET - cover
1шт.
9
D47031
BOLT AND LOCKWASHER ASSEMBLY - special
10шт.
10
13-636
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
2шт.
11
92-6
LOCK WASHER,3/8"
2шт.
12
D47149
HOUSING - shifting bars (When ordered for "Early Production" models, order with 1 - D47125 plug and 1 - D47124 gasket for service, reference nos. 57 and 58)
1шт.
13
D47105
GASKET - shifting bar housing
1шт.
14
D47055
PLUG - shifting bar housing
1шт.
15
D47135
PLUG - oil retainer
1шт.
16
41-14
PLUG
- expansion (7/8" dia.)
8шт.
17
D47131
HOUSING - transmission
1шт.
18
129-560
NUT - hex. (5/8" - 18 NF)
4шт.
20
D47132
STUD - transmission housing to "U" joint box
4шт.
21
221-676
PLUG
- drain, magnetic (3/4" NPT)
1шт.
22
221-27
DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF
PLUG - pipe, square socket head (1-1/4" NPT)
1шт.
23
D47032
SCREW AND LOCKWASHER ASSEMBLY - special
6шт.
24
D47028
COVER - P.T.O. opening
1шт.
25
D46796
GASKET - cover
1шт.
26
D47130
HOUSING - clutch
1шт.
27
131-13
LOCK NUT,5/8"-18, GB
NUT - hex., lock (5/8" - 18 NF)
6шт.
28
D47129
STUD - transmission housing to clutch housing
6шт.
29
75-58
BOLT (MACHINE),5/16" x 1/2"
SCREW - round head machine (5/16" - 18 NC x 1/2")
6шт.
30
D47127
COVER - access, lower clutch housing
1шт.
31
D47097
COVER - access, upper clutch housing
1шт.
32
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight (1/8" NPT)
2шт.
33
D46798
SHAFT - clutch pedal, short (R.H.)
1шт.
34
D47179
YOKE - clutch actuating
1шт.
35
46954
CYLINDER END CAP,Hex, 3/8" - 24 x 1", Gr 5, Drilled Hd
BOLT - special, drilled head
2шт.
36
391-708
LOCK WIRE - bolt, #18 (15" long) Cut as required
1шт.
37
126-19
WOODRUFF KEY,#11, 3/16" x 7/8"
KEY - #607 Woodruff
1шт.
38
D47040
SHAFT - clutch pedal, long (L.H.)
1шт.
39
14-628
BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5
HHCS - 3/8" - 24 NF x 1-3/4"
1шт.
40
D47094
ARM - clutch pedal adjustment
1шт.
41
92-6
LOCK WASHER,3/8"
1шт.
42
25-116
NUT,Hex, 3/8"-24, G5
- hex. (3/8" - 24 NF)
1шт.
43
181-279
SCREW - set, dog point (1/2" - 13 NC x 2")
1шт.
44
25-108
NUT,1/2"-13, G5
- hex. (1/2" - 13 NC)
1шт.
45
D47133
CARRIER - clutch throw out bearing
1шт.
46
D47052
BEARING - clutch release
1шт.
47
221-103
FITTING
NIPPLE - pipe (1/8" NPT x 1")
1шт.
48
D47051
SPRING - carrier return
2шт.
49
D47033
BOLT - special, drilled head
2шт.
49a
92-6
LOCK WASHER,3/8"
2шт.
50
221-374
ELBOW,90 Degree, 1/8" NPT
- female (1/8" NPT)
1шт.
51
221-119
PIPE - grease, throw out bearing
1шт.
52
221-326
COUPLING,Pipe, 1/8" NPT
- female (1/8" NPT)
1шт.
53
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg
1шт.
54
D47032
SCREW AND LOCKWASHER ASSEMBLY - special
6шт.
55
D46796
GASKET - transmission filler neck cover
1шт.
56
D47113
BOLT AND LOCKWASHER ASSEMBLY - special
2шт.
57
D47125
PLUG - reverse switch hole (If used)
1шт.
58
D47124
GASKET - plug
1шт.
D45639
COVER ASSEMBLY - filler neck, transmission oil (Used before tractor serial no. 5248), Includes: Ref. 59 and 60
1шт.
D45640
COVER ASSEMBLY - filler neck, transmission oil (Used on tractor serial no. 5248 and after), Includes: Ref. 59 and 60
1шт.
59
NSS
NOT SOLD SEPARAT
COVER - filler neck, transmission oil
1шт.
60
221-16
PLUG,Sq Hd, 1"-11 1/2 NPTF
- pipe, square head (1" NPT)
1шт.
61
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
12шт.
62
92-6
LOCK WASHER,3/8"
12шт.
Выбрано товаров: 66
