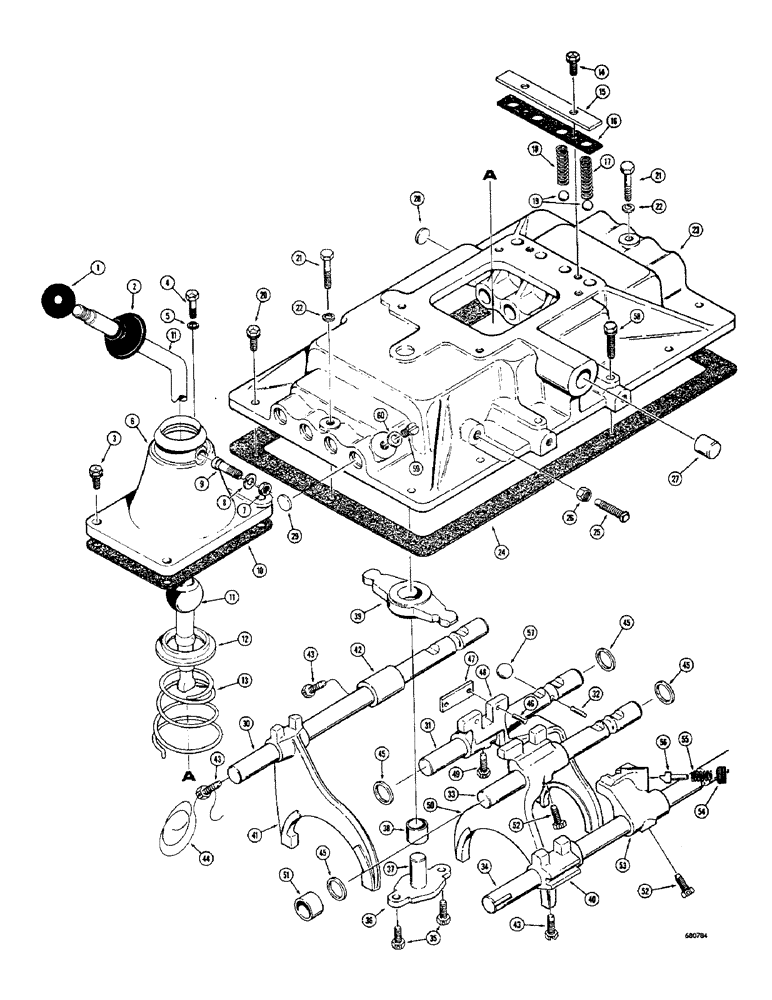

Запчасти Case 300 (036) - TRANSMISSION ASSEMBLY, TRACTOR SERIAL NO. 5255 TO 5769 (03) - TRANSMISSION

D45637

TRANSMISSION ASSEMBLY - complete (Used on tractor serial no. 5255 - 5769), Includes: Ref. 1 - 60

1шт.

1

D39118

KNOB

BALL - gear shift lever

1шт.

2

D47161

BOOT - gear shift lever

1шт.

3

D47031

BOLT AND LOCKWASHER ASSEMBLY - special

2шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

D47159

HOUSING - gear shift lever

1шт.

7

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

1шт.

8

192-110

LOCK WASHER,5/16"

WASHER - light sect. lock () 5/16"

1шт.

9

D47158

PIN - gear shift lever retaining

1шт.

10

D46795

GASKET

- lever housing to shifting bar housing

1шт.

11

D47160

LEVER - gear shift

1шт.

12

D47075

RETAINER - gear shift lever

1шт.

13

D47074

SPRING - gear shift lever

1шт.

14

D47031

BOLT AND LOCK WASHER ASSEMBLY - special

2шт.

15

D47066

COVER - positioning springs

1шт.

16

D47067

GASKET - cover

1шт.

17

D47138

SPRING - position finder, outer rails

2шт.

18

D47136

SPRING - position finder, inner rails

2шт.

19

211-13

BALL,1/2" Dia

- detent 1/2" Dia

4шт.

20

D47031

BOLT AND LOCK WASHER ASSEMBLY - special

10шт.

21

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

D47149

HOUSING - shifting bars (When ordered for "Early Production" models, order with 1 - D47125 plug and 1 - D47124 gasket for service, reference nos. 59 and 60)

1шт.

24

D47105

GASKET - shift bar housing

1шт.

25

181-279

SCREW - set, dog point (1/2" - 13 NC x 2")

1шт.

26

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

1шт.

27

D47055

PLUG - shift bar housing

1шт.

28

D47135

PLUG - oil retainer

1шт.

29

41-14

PLUG

- expansion (7/8" dia.)

8шт.

30

D47145

BAR - shifting, first and reverse (L.H.)

1шт.

31

D47147

BAR - shifting, fourth and fifth (L.H. center)

1шт.

32

D47134

PIN - interlock, bar

1шт.

33

D47146

BAR - shifting, second and third (R.H. center)

1шт.

34

D47150

BAR - shifting, first and reverse (R.H.)

1шт.

35

D47151

BOLT - special, drilled head

2шт.

D46788

POINT AND PLATE - cross lever, Includes: Ref. 36 and 37

1шт.

36

NSS

NOT SOLD SEPARAT

PLATE - cross lever pivot pin

1шт.

37

NSS

NOT SOLD SEPARAT

PIN - cross lever pivot

1шт.

38

D47143

BEARING - cross lever

1шт.

39

D47141

LEVER - cross, first and reverse gear

1шт.

40

D47140

BLOCK - shifting, first and reverse gear

1шт.

41

D47139

YOKE - shifting, first and reverse gear

1шт.

42

D47142

BLOCK - stop, first and reverse gear

1шт.

43

D47056

BOLT - special, yoke positioning

3шт.

44

391-708

LOCK WIRE - bolt, #18 (15" long) Cut as required

1шт.

45

D47148

SPACER - yoke bar

4шт.

46

46-312

RIVET - countersunk head (3/16" dia. x 3/4") Csk, 3/16" x 3/4"

2шт.

47

D47069

RETAINING PLATE - shift lever

1шт.

48

D47157

YOKE

- shifting, fourth and fifth gear

1шт.

49

D47056

BOLT - special, yoke positioning

1шт.

50

D47144

YOKE - shifting, second and third gear

1шт.

51

D47137

SPACER - yoke, third gear

1шт.

52

D47056

BOLT - special, yoke and block positioning

2шт.

53

D47154

BLOCK - shifting, first and reverse gear

1шт.

54

D47155

PLUG - spring and plunger retaining

1шт.

55

D47072

SPRING - plunger

1шт.

56

D47156

PLUNGER - reverse stop

1шт.

57

211-17

BALL,3/4" Dia

- steel, . 3/4" Dia

2шт.

58

D47113

BOLT AND LOCKWASHER ASSEMBLY - special

2шт.

59

D47125

PLUG - reverse switch hole (If used)

1шт.

60

D47124

GASKET - plug

1шт.

61

D45958

LEVER - shift lever extension (Used on models without torque converter only) Not illustrated

1шт.

62

D45959

COUPLING - shift lever extension (Used on models without torque converter only) Not illustrated

1шт.
