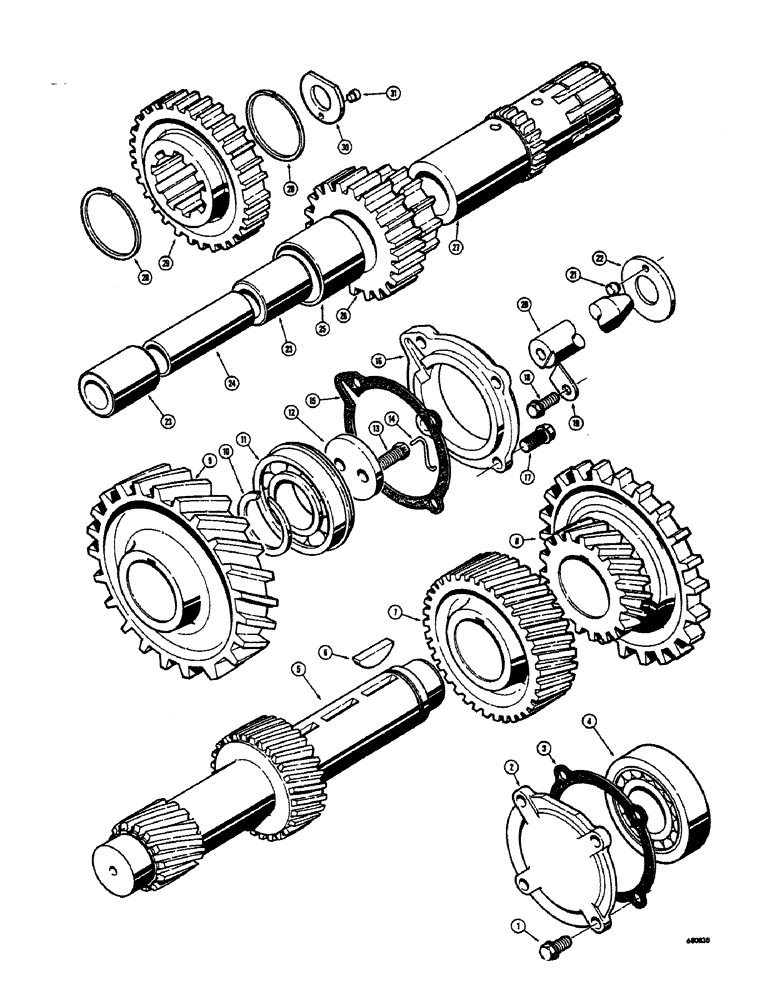

Запчасти Case 300 (034) - TRANSMISSION ASSEMBLY, BEFORE TRACTOR SERIAL NO. 5255, COUNTERSHAFT AND REVERSE IDLER PARTS (03) - TRANSMISSION

D45636

TRANSMISSION ASSEMBLY - complete (Used before tractor serial no 5255), Includes: Ref. 1 - 31

1шт.

1

D47029

BOLT AND LOCKWASHER ASSEMBLY - special

4шт.

2

D46806

CAP - countershaft, rear

1шт.

3

D46797

GASKET - cap

1шт.

4

D47036

BEARING - roller type, countershaft rear

1шт.

5

D47093

COUNTERSHAFT - transmission

1шт.

6

126-48

WOODRUFF KEY,#29, 3/8" x 2 1/8"

KEY - #29 Woodruff

3шт.

7

D47092

GEAR - transmission, third

1шт.

8

D47091

GEAR - transmission, reverse drive

1шт.

9

D47090

GEAR - transmission, countershaft drive

1шт.

10

D46799

SNAP RING - countershaft, front

1шт.

11

D47037

BEARING - ball type

1шт.

12

D46807

RETAINING PLATE - countershaft, front

1шт.

13

D47339

BOLT - special, drilled head

2шт.

14

391-708

LOCK WIRE - bolt, #18 (15" long) Cut as required

1шт.

15

D47022

GASKET - cap

1шт.

16

D46816

CAP - countershaft, front

1шт.

17

D47031

BOLT AND LOCKWASHER ASSEMBLY - special

4шт.

18

D47029

BOLT AND LOCKWASHER ASSEMBLY - special

1шт.

19

D46794

LOCK PLATE - reverse idler shaft

1шт.

20

D47025

SHAFT - reverse idler

1шт.

21

D46813

PIN - thrust washer

1шт.

22

D46814

THRUST WASHER - reverse idler sleeve, rear

1шт.

23

D47034

BEARING - roller type, reverse idler shaft

2шт.

24

D47026

SPACER - bearing

1шт.

D46775

GEAR ASSEMBLY - reverse, sliding, Includes: Ref. 25 and 26

1шт.

25

D47096

BUSHING - gear

1шт.

26

NSS

NOT SOLD SEPARAT

GEAR - reverse, sliding

1шт.

27

D46803

SLEEVE - reverse idler shaft

1шт.

28

D47023

SNAP RING - reverse idler gear

2шт.

29

D47043

GEAR - reverse idler

1шт.

30

D46815

THRUST WASHER - reverse idler shaft, front

1шт.

31

D46813

PIN - thrust washer

1шт.
