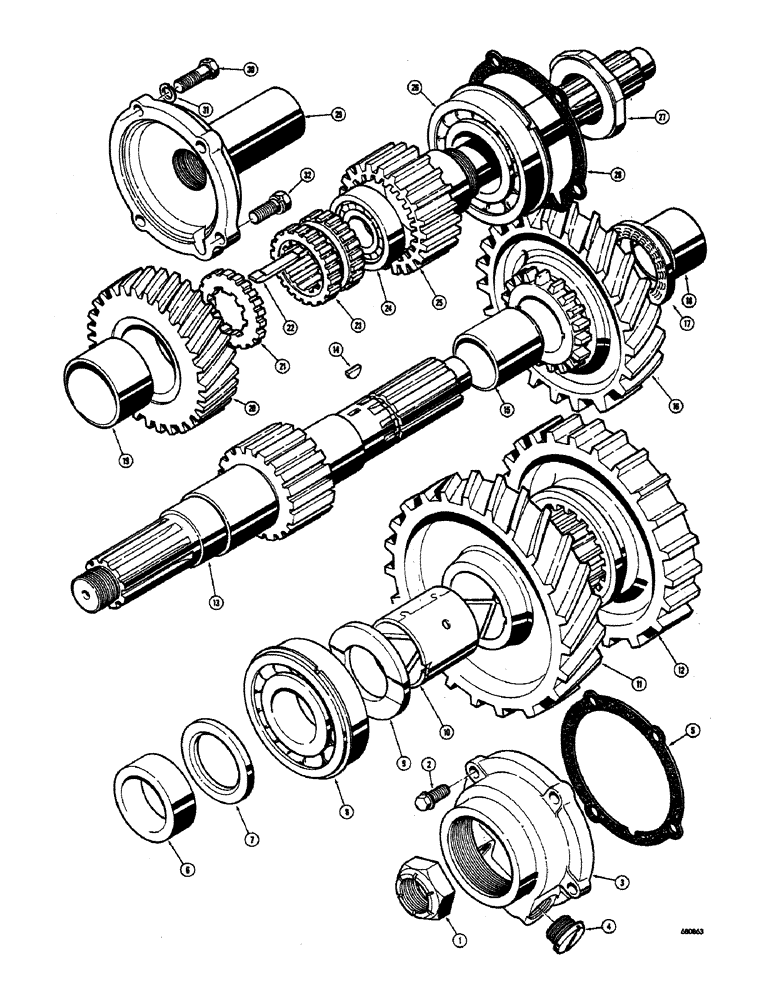

Запчасти Case 300 (032) - TRANSMISSION ASSEMBLY, BEFORE TRACTOR SERIAL NO. 5255, MAINSHAFT AND RELATED PARTS (03) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
D45636
TRANSMISSION ASSEMBLY - complete (Used before tractor serial no. 5255), Includes: Ref. 1 - 32
1шт.
1
131-84
NUT - hex., lock (1-1/2" - 18 NF)
1шт.
2
D47031
BOLT AND LOCKWASHER ASSEMBLY - special
4шт.
3
D46801
BEARING COVER - mainshaft, rear
1шт.
4
D47041
PLUG - housing
1шт.
5
D46802
GASKET - cover
1шт.
6
D47042
SPACER - speedometer gear replacement
1шт.
7
D46800
WASHER - spacer backup
1шт.
8
D47038
GLASS,CAB
BEARING - ball type
1шт.
9
D46812
SPACER - bearing
1шт.
D46780
GEAR ASSEMBLY - transmission, first gear, Includes: Ref. 10 and 11
1шт.
10
D47089
BUSHING - gear
1шт.
11
NSS
NOT SOLD SEPARAT
GEAR - transmission, first gear
1шт.
12
D47082
GEAR - transmission, first and second gear
1шт.
13
D47086
MAINSHAFT - transmission
1шт.
14
126-9
WOODRUFF KEY,#3, 1/8" x 1/2"
(No. 404) #3, 1/8" x 1/2"
1шт.
D46779
GEAR ASSEMBLY - transmission, second gear, Includes: Ref. 15 and 16
1шт.
15
D47088
BUSHING - gear
1шт.
16
NSS
NOT SOLD SEPARAT
GEAR - transmission, second gear
1шт.
17
D47084
WASHER - third gear, rear
1шт.
18
D47083
SLEEVE - third gear
1шт.
D46778
GEAR ASSEMBLY - transmission, third gear, Includes: Ref. 19 and 20
1шт.
19
D47087
BUSHING - gear
1шт.
20
NSS
NOT SOLD SEPARAT
GEAR - transmission, third gear
1шт.
21
D47080
WASHER - third gear, front (Splined)
1шт.
22
D47081
KEY - washer
1шт.
23
D47085
CLUTCH - sliding, mainshaft
1шт.
24
D47035
BEARING - roller type, pilot
1шт.
25
D46805
CLUTCH SHAFT AND DRIVE GEAR - transmission mainshaft
1шт.
26
D47039
BEARING - ball type, drive gear
1шт.
27
D46810
NUT - hex., special (Drive gear bearing)
1шт.
28
D46808
GASKET - bearing cover
1шт.
29
D46804
BEARING COVER - mainshaft, front
1шт.
30
D47033
BOLT - special, drilled head
2шт.
31
92-6
LOCK WASHER,3/8"
2шт.
32
D47030
BOLT AND LOCKWASHER ASSEMBLY - special
2шт.
Выбрано товаров: 36
