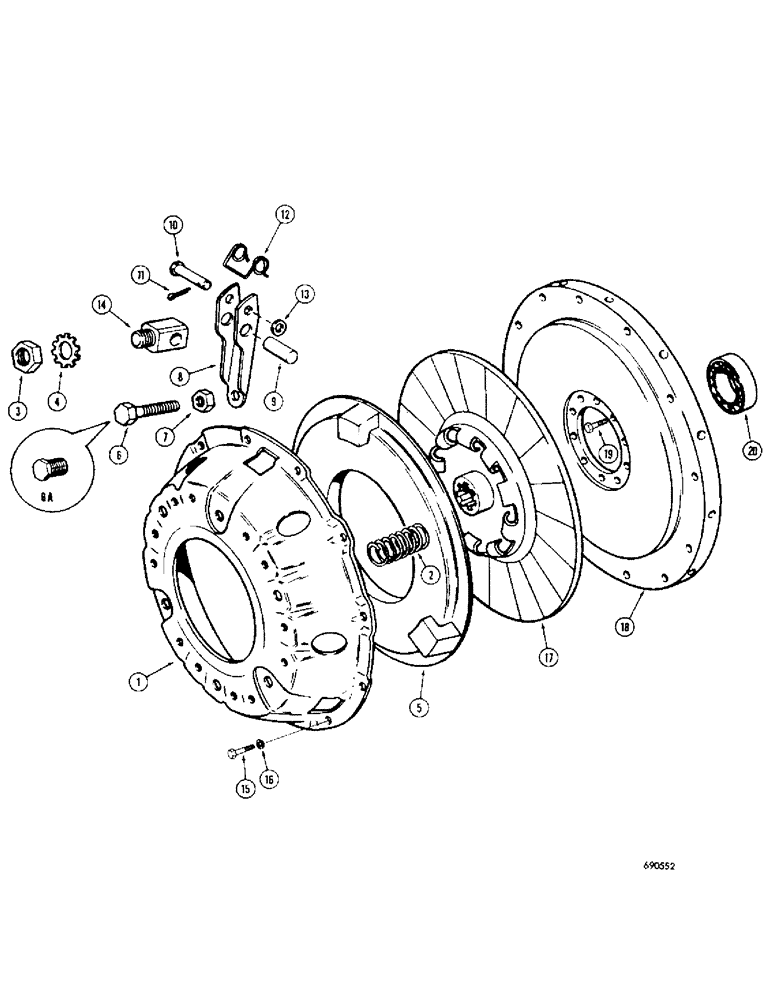

Запчасти Case 300 (024) - CLUTCH ASSEMBLY, USED ON MODELS WITH TORQUE CONVERTER, USED ON MODELS WITHOUT TORQUE CONVERTER (03) - TRANSMISSION

D45638

SPARE PART ASSEMBLY - transmission (Used before tractor S/N 5770), Includes Ref. 1 - 14

1шт.

D48846

SPARE PART ASSEMBLY - transmission (Used on tractor S/N 5770 and after), Includes Ref. 1 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - clutch

1шт.

2

D46302

SPARE PART Clutch

15шт.

3

86637932

JAM NUT,Jam, 5/8"-18, G5

3шт.

4

193-14

LOCK WASHER,Ext Tooth, 5/8"

3шт.

D46300

SPARE PART ASSEMBLY - clutch pressure (Used before tractor S/N 5770), Includes Ref. 5 - 14

1шт.

D48853

PLATE ASSEMBLY - clutch pressure (Used on tractor S/N 5770 and after), Includes Ref. 5 - 14

1шт.

5

D46303

PLATE - clutch pressure

1шт.

D46304

LEVER ASSEMBLY - clutch (Used before tractor S/N 5770), Includes Ref. 6 - 8

3шт.

A42210

KIT

LEVER ASSEMBLY - clutch (Used on tractor S/N 5770 and after), Includes Ref. 6 - 8

3шт.

6

D46309

SPARE PART Lever, special (Used before tractor S/N 5770)

1шт.

6a

A42209

SCREW - lever, special (Used on tractor S/N 5770 and after)

1шт.

7

O4311AB

NUT

Hex, (Special) Used with D46309 screw only

1шт.

8

NSS

NOT SOLD SEPARAT

LEVER - clutch

1шт.

9

D46306

SPARE PART Lever pivot

3шт.

10

D46307

SPARE PART Clevis

3шт.

11

132-26

COTTER PIN

3/32" x 3/4"

3шт.

12

A25120

SPRING

Lever

3шт.

13

195-25

WASHER,3/8"

3шт.

14

D46305

SPARE PART Lever

3шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

12шт.

16

92-6

LOCK WASHER,3/8"

12шт.

17

D45155

SPARE PART DISC - clutch (Used before tractor S/N 5770)

1шт.

D48305

SPARE PART Clutch (Used on tractor S/N 5770 and after)

1шт.

18

D45674

FLYWHEEL - torque converter, used on models with torque converter

1шт.

19

114-426

HHCS - 1/2" - 20 NF x 1-1/2", used on models with torque converter

6шт.

20

A9275

BEARING

Ball type, flywheel, used on models with torque converter

1шт.

18

REF

INSTRUCTION

FLYWHEEL - engine, used on models without torque converter

1шт.

Part number can be located in Detroit Diesel parts book.

1шт.

19

REF

INSTRUCTION

HHCS - flywheel, used on models without torque converter

6шт.

Part number can be located in Detroit Diesel parts book.

1шт.

20

D45957

BEARING

Ball type, flywheel (Used before tractor S/N 5770), used on models without torque converter

1шт.

D48304

SPARE PART Ball type, flywheel (Used on tractor S/N 5770 and after), used on models without torque converter

1шт.
