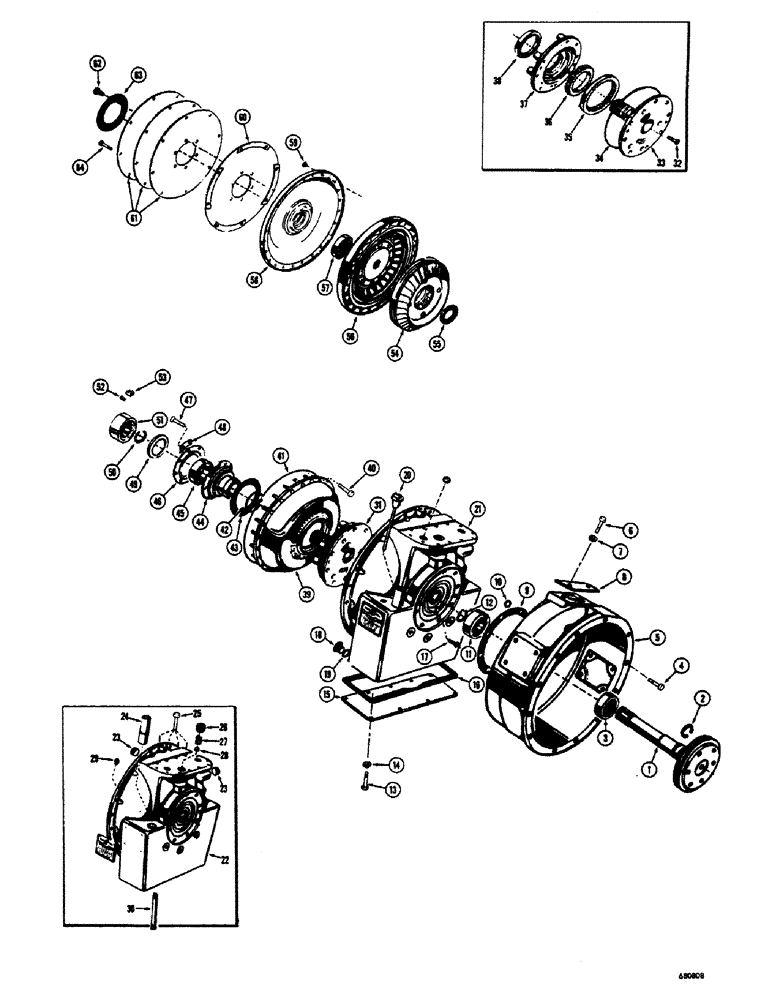

Запчасти Case 300 (020) - D45635 TORQUE CONVERTER (03) - TRANSMISSION

D45635

WASHER

TORQUE CONVERTER - engine, Includes: Ref. 1 - 63

1шт.

1

D46359

SHAFT - turbine

1шт.

2

D46360

RING - hook type seal

1шт.

3

D46358

SEAL - oil

1шт.

4

121-403

HHCS - 1/2" - 13 NC x 2-3/4"

8шт.

5

D46357

HOUSING - clutch

1шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

D46356

SHIELD - dust

1шт.

9

D46355

GASKET

- clutch housing

1шт.

10

D46354

SEAL - ring

8шт.

11

D46353

BEARING

- ball type

1шт.

12

D46352

RING, SNAP

SNAP RING - external type

1шт.

13

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

9шт.

14

92-5

LOCK WASHER,5/16"

9шт.

15

D46348

PLATE - sump

1шт.

16

D46349

GASKET - sump plate

1шт.

17

73-414

SCREW,Slotted Fil Hd, 1/4"-20 x 7/8"

- flat head machine (5/16" - 18 NC x 7/8")

2шт.

18

D46350

PLUG

- drain

1шт.

19

A12649

GASKET

- plug

1шт.

20

D46347

DIPSTICK - oil level indicator

1шт.

21

D46351

HOUSING ASSEMBLY - torque converter, Includes: Ref. 22 - 30

1шт.

22

NSS

NOT SOLD SEPARAT

HOUSING - torque converter

1шт.

23

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- pipe, square socket head (3/4" NPT)

2шт.

24

D46366

SLEEVE - oil filter

1шт.

25

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

4шт.

26

221-36

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - pipe, square socket head (1" NPT)

1шт.

27

D46367

SPRING - compression

1шт.

28

211-17

BALL,3/4" Dia

- steel, . 3/4" Dia

1шт.

29

221-662

PLUG,Hex Hd, 1/4"-18

- pipe, hex. head (1/4" NPT)

1шт.

30

D46365

TUBE - oil cooler return

1шт.

31

D46346

PUMP ASSEMBLY - torque converter charging, Includes: Ref. 32 - 38

1шт.

32

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

- flat head machine (1/4" - 20 NC x 5/8")

3шт.

33

D46363

SLEEVE - pump

1шт.

34

D46362

SEAL - ring

1шт.

D46361

GEAR AND BODY ASSEMBLY - pump, Includes: Ref. 35 - 38

1шт.

35

NSS

NOT SOLD SEPARAT

GEAR - oil pump, driven

1шт.

36

NSS

NOT SOLD SEPARAT

GEAR - oil pump, drive

1шт.

37

NSS

NOT SOLD SEPARAT

BODY - oil pump

1шт.

38

D46364

SEAL - oil

1шт.

39

D46345

PUMP

- converter oil (When stock is exhausted, order L35213 pump for service)

1шт.

39

L35213

PUMP

- converter oil, Includes: Ref. 40

1шт.

40

A12695

BOLT

- special

24шт.

41

A12674

RING

SEAL - ring

1шт.

42

D46344

RING - hook type seal

1шт.

43

D46343

GASKET - converter

1шт.

44

D46342

HUB - converter pump

1шт.

45

A31065

BEARING, BALL,2.1654" ID x 3.937" OD x 1.3125"

BEARING - ball type

1шт.

46

D46341

RETAINER - bearing

1шт.

47

D46368

SCREW - special

8шт.

48

D46340

TAB - locking

4шт.

49

D46339

SPACER - freewheel roller race

1шт.

50

A12694

RING, SNAP

SNAP RING - external type

1шт.

51

L30292

RACE

- freewheel

1шт.

52

L30291

SPRING

- freewheel roller

10шт.

53

L30290

ROLLER

- stator freewheel

10шт.

L30288

STATOR

ASSEMBLY - converter, Includes: Ref. 54 and 55

1шт.

54

NSS

NOT SOLD SEPARAT

STATOR - converter

1шт.

55

L30289

BALL BEARING

- stator

1шт.

56

L30287

TURBINE

- converter

1шт.

57

L30286

BEARING

- ball type

1шт.

58

D46337

COVER

- torque converter

1шт.

59

131-308

LOCK

NUT - hex., lock (5/16" - 24 NF)

24шт.

60

D46336

DISC

- converter

1шт.

61

D46335

DISC

- converter

3шт.

62

121-402

LOCK BOLT,Lock Place, Hex, 1/2" - 13 x 7/8", Gr 8

HHCS - 1/2" - 13 NC x 7/8"

6шт.

63

D46334

PLATE

- disc retaining

1шт.

64

114-238

X

HHCS - 3/8" - 24 NF x 2-1/2" (Self-locking)

8шт.
