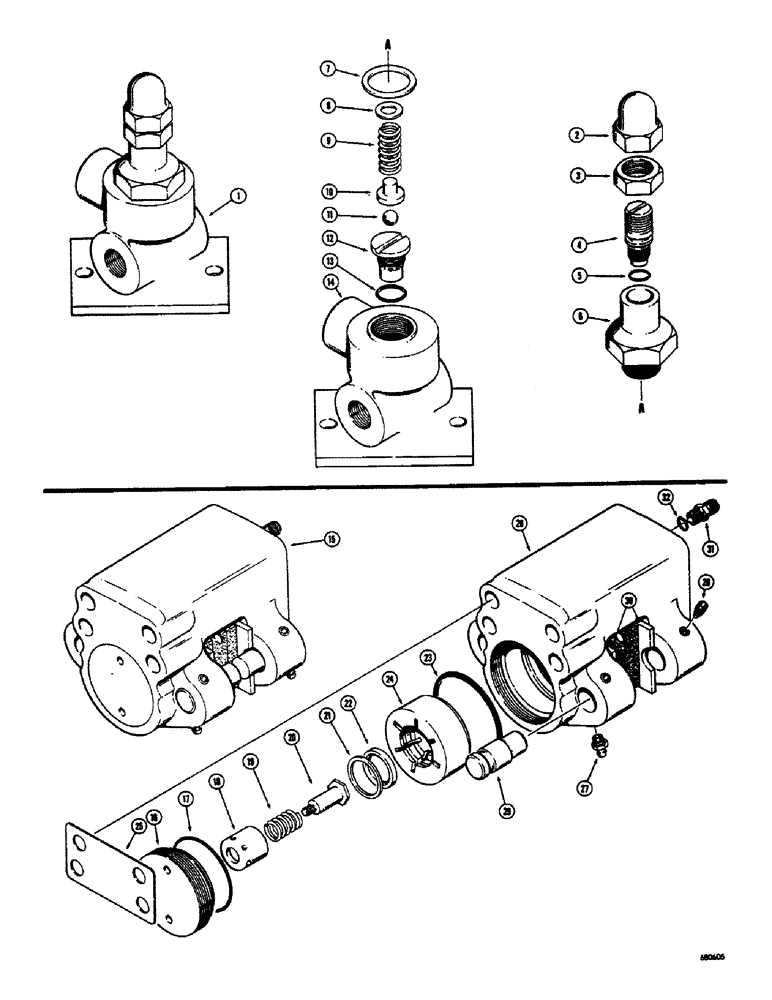

Запчасти Case 300 (074) - D45165 BRAKE SYSTEM RELIEF VALVE, D45169 BRAKE HEAD (5.1) - BRAKES
№
Артикул
Название
Примечание
Количество
1
D45165
RELIEF VALVE - brake system (1500 P.S.I.), Includes: Ref. 2 - 14
1шт.
2
129-877
NUT,Crown, 3/4"-10
- acorn
1шт.
3
129-167
JAM NUT,Jam, 5/8"-18, G5
- hex., jam
1шт.
4
34110
ADJUSTMENT SCREW
- adjusting, relief valve
1шт.
5
A29197
O-RING,0.424" ID x 0.63" OD x 0.103"
SEAL - "O" ring, adjusting screw
1шт.
6
34113
BODY
CAP - hex., housing
1шт.
7
34115
GASKET
- cap
1шт.
9
36660
WASHER
- spring retaining
1шт.
9
D24049
VALVE SPRING
SPRING - relief valve
1шт.
10
CAS34120
BUSHING
GUIDE - spring, poppet
1шт.
11
211-12
BALL,7/16 Dia
- relief valve
1шт.
12
D28913
SEAT
- relief valve
1шт.
14
NSS
NOT SOLD SEPARAT
HOUSING - relief valve
1шт.
15
D45169
BRAKE HEAD - drive shaft, skidder (Disc type), D45169 brake head, Includes: Ref. 16 - 32
1шт.
16
D46247
PLUG - piston, D45169 brake head
2шт.
17
D46246
O-RING
SEAL - "O" ring, small, D45169 brake head
2шт.
18
D46245
GUIDE - spring, D45169 brake head
2шт.
19
D46244
SPRING - compression, D45169 brake head
2шт.
20
D46243
SCREW - shoulder, D45169 brake head
2шт.
21
T28550
SNAP RING,1.50", Int, #150
Ring, Snap, , D45169 brake head 1.50", Int, #150
2шт.
22
D46248
WASHER - flat, D45169 brake head
2шт.
23
D46250
O-RING
SEAL - "O" ring, large, D45169 brake head
2шт.
24
D46249
PISTON - brake, D45169 brake head
2шт.
25
D46256
SHIM - brake head, D45169
1шт.
26
NSS
NOT SOLD SEPARAT
HOUSING - brake head,D45169
1шт.
27
A41491
BLEEDER,1/4" - 28 x 23.37mm
BLEEDER SCREW - brake head, D45169
4шт.
28
D46251
SCREW - set, hex. socket head, D45169 brake head
4шт.
29
D46252
PIN - lining and carrier retaining, D4569 brake head
4шт.
30
D46253
LINING
AND CARRIER ASSEMBLY - brake head D45169
2шт.
31
218-5053
HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB
CONNECTOR - male, straight, D45169 brake head, Incl. Ref. 32
1шт.
32
218-5003
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
SEAL - "O" ring, D45169 brake head
1шт.
13
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
SEAL - "O" ring, valve seat
1шт.
Выбрано товаров: 32
