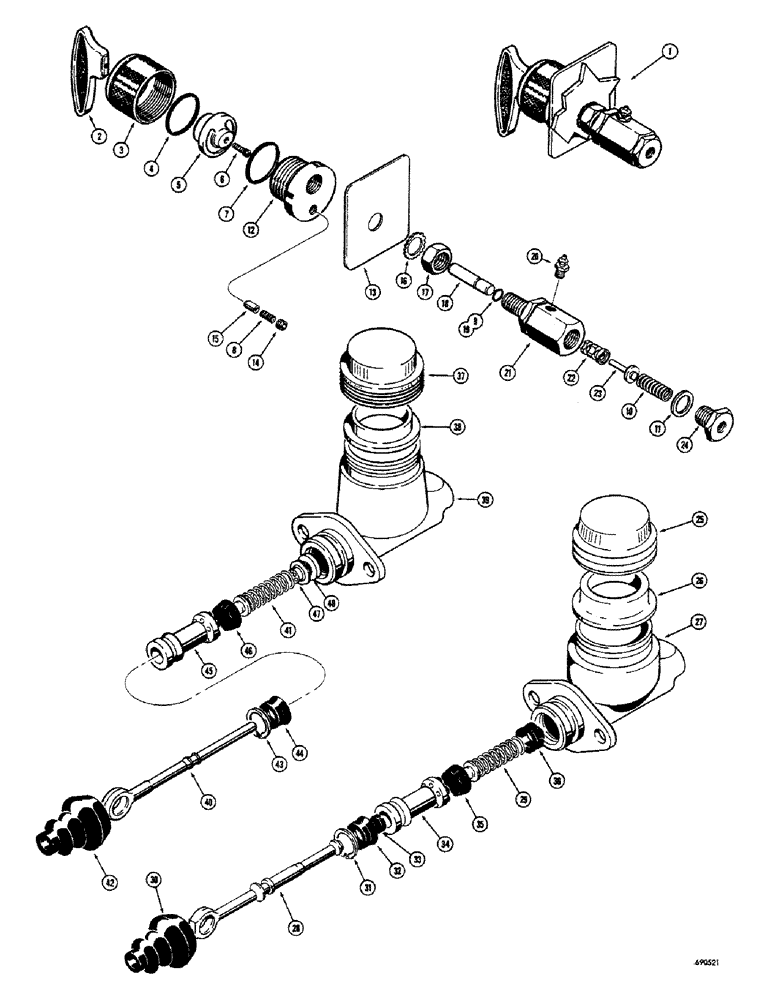

Запчасти Case 300 (070) - D45182 MICO BRAKE LOCK, BRAKE MASTER CYLINDER (5.1) - BRAKES

1

D45182

MICO LOCK - brake locking, Includes: Ref. 2 - 24

1шт.

2

D46263

HANDLE - lock

1шт.

3

D46260

COVER - cam

1шт.

D46270

REPAIR KIT - switch, Includes: Ref. 4 - 11

1шт.

4

D46272

SEAL - "O" ring, cam

1шт.

5

D46271

CAM - switch

1шт.

6

165-159

HEX SOC SCREW,#6 - 32 x 3/4"

- hex., socket head (#6 - 32 NC x 3/4")

1шт.

7

D46273

SEAL - "O" ring, cam block

1шт.

8

D46274

SPRING - detent

1шт.

9

A16679

O-RING

SEAL - "O" ring, push rod

1шт.

10

A16674

SPRING

- return

1шт.

11

D46277

GASKET

- end plug

1шт.

12

D46261

BLOCK - cam

1шт.

13

D46265

PLATE - operation information

1шт.

14

D46264

SCREW - set

1шт.

15

D46259

DETENT - switch

1шт.

16

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

1шт.

17

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex., jam (5/8" - 18 NF)

1шт.

18

D46262

ROD - push, Includes: Ref. 19

1шт.

19

A16679

O-RING

SEAL - "O" ring, push rod

1шт.

20

D46258

PLUG

FITTING - special, bleeder

1шт.

21

D46268

BODY - switch

1шт.

22

D46266

VALVE

- switch

1шт.

23

D46267

STEM

- valve

1шт.

24

D46257

PLUG

- end

1шт.

D45180

MASTER CYLINDER - brake (Used before tractor serial no. 5770) Use D50280 for service (See Figure 70), brake master cylinder, Includes: Ref. 25 - 36

1шт.

25

D46238

CAP - filler, brake master cylinder

1шт.

26

D46239

GASKET - cap, brake master cylinder

1шт.

27

NSS

NOT SOLD SEPARAT

BODY - master cylinder, brake master cylinder

1шт.

28

D46240

ROD - push, brake, brake master cylinder

1шт.

29

D46233

SPRING AND RETAINER - piston return, brake master cylinder

1шт.

D45181

REPAIR KIT - brake master cylinder, brake master cylinder, Includes: Ref. 30 - 36

1шт.

30

D46235

BOOT - master cylinder brake

1шт.

31

D46237

SNAP RING - piston retaining, brake master cylinder

1шт.

D46232

PISTON ASEMBLY - master cylinder brake, Includes: Ref. 32 - 34

1шт.

32

D46241

CUP - secondary, brake master cylinder

1шт.

33

D46242

BUMPER - push rod, brake master cylinder

1шт.

34

NSS

NOT SOLD SEPARAT

PISTON - master cylinder, brake

1шт.

35

D46236

CUP - primary, brake master cylinder

1шт.

36

D46234

CHECK VALVE - master cylinder brake

1шт.

D48315

MASTER CYLINDER - brake (Used on tractor serial no. 5770 and after), Includes: Ref. 37 - 48

1шт.

D50280

MASTER CYLINDER - brake (Used for service of D45180 on tractors before serial no. 5770), Includes: Ref. 37 - 48

1шт.

37

D46238

CAP - filler

1шт.

38

D46239

GASKET - cap

1шт.

39

NSS

NOT SOLD SEPARAT

BODY - master cylinder

1шт.

40

D48318

ROD - push, brake (D48315 cylinder)

1шт.

D50281

ROD - push, brake (D50280 cylinder)

1шт.

T32652

KIT

REPAIR KIT - brake master cylinder, Includes: Ref. 41 - 48

1шт.

41

NSS

NOT SOLD SEPARAT

SPRING AND RETAINER - piston return

1шт.

42

D46235

BOOT - master cylinder

1шт.

43

A36277

SNAP RING,1.125", Int, #112

piston 1.125", Int, #112

1шт.

NSS

NOT SOLD SEPARAT

PISTON ASSEMBLY - master cylinder, Includes: Ref. 44 and 45

1шт.

44

NSS

NOT SOLD SEPARAT

CUP - secondary

1шт.

45

NSS

NOT SOLD SEPARAT

PISTON - master cylinder

1шт.

46

NSS

NOT SOLD SEPARAT

CUP - primary

1шт.

47

NSS

NOT SOLD SEPARAT

CHECK VALVE - master cylinder

1шт.

48

NSS

NOT SOLD SEPARAT

SEAT - check valve

1шт.
