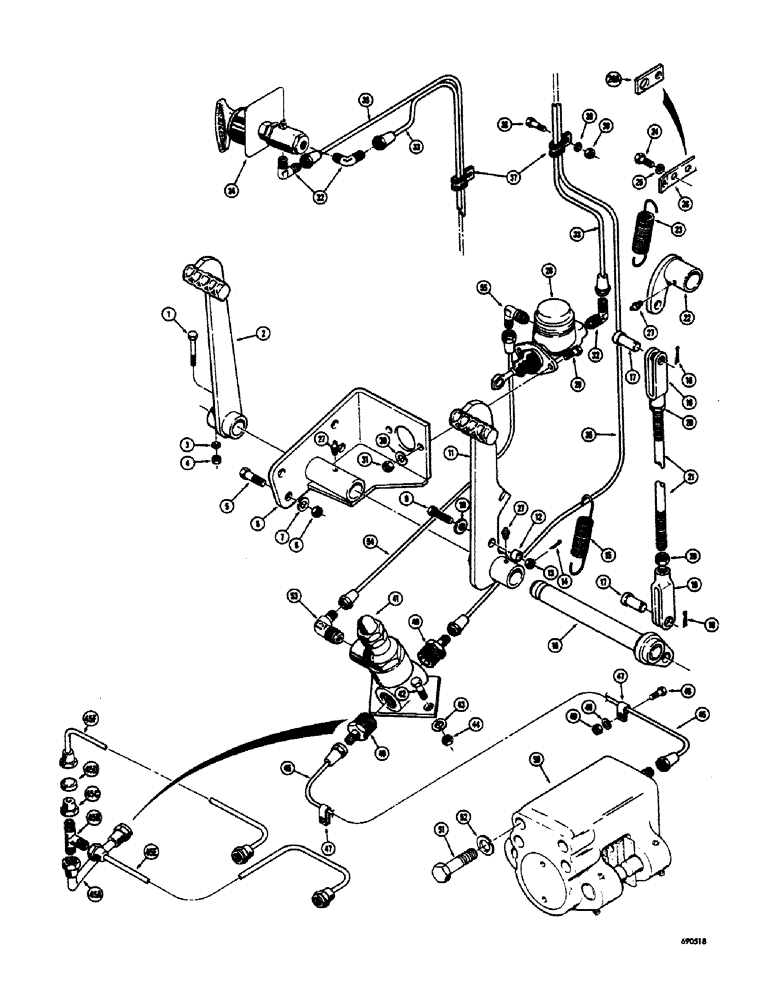

Запчасти Case 300 (066) - HYDRAULIC BRAKES, BRAKE PEDAL AND CLUTCH PEDAL (5.1) - BRAKES

1

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

2

D45780

PEDAL - clutch actuating

1шт.

3

92-6

LOCK WASHER,3/8"

1шт.

4

25-106

NUT,3/8"-16, G5

Hex

1шт.

5

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

6

D45782

BRACKET - clutch and brake pedal mounting

1шт.

7

92-8

LOCK WASHER,1/2"

4шт.

8

25-108

NUT,1/2"-13, G5

Hex

4шт.

9

14-724

SCREW,Hex, 7/16" - 20 x 1 1/2", Gr 5

1шт.

10

95-7

WASHER,7/16"

Standard wrot

1шт.

11

D45781

PEDAL - brake actuating

1шт.

12

D45998

SPACER

Screw, brake master cylinder push rod

1шт.

13

25-137

SLOTTED NUT,7/16"-20, G5

Hex

1шт.

14

132-48

COTTER PIN,1/8" x 1"

1шт.

15

D45789

SPARE PART Brake pedal return

1шт.

16

D45783

SHAFT - brake pedal pivot and clutch actuating

1шт.

17

141-7

CLEVIS PIN,5/8" x 1.610"

Rod end

2шт.

18

132-46

COTTER PIN,1/8" x 3/4"

2шт.

19

213-7

SPARE PART Rod end

2шт.

20

25-1010

NUT,5/8"-11, G5

NUT, Hex. (5/8"-18 NF)

2шт.

21

D45785

ROD - clutch actuating (Used on models with torque converter)

1шт.

D45786

ROD - clutch actuating (Used on models without torque converter before tractor S/N 5770)

1шт.

D48313

ROD - clutch actuating (Used on models without torque converter on tractor S/N 5770 and after)

1шт.

22

D45784

LEVER - clutch actuating (Used before tractor S/N 5770)

1шт.

23

D45787

SPARE PART Clutch pedal return

1шт.

24

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Used with D45788 bracket only

2шт.

24

92-8

LOCK WASHER,1/2"

Used with D45788 bracket only

2шт.

26

D45788

BRACKET - clutch spring (Used on some models before tractor S/N 5770)

1шт.

26a

D48314

BRACKET - clutch spring (Used on tractor S/N 5770 and after)

1шт.

27

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Straight (1/8" NPT)

3шт.

28

REF

INSTRUCTION

CYLINDER - brake, master (Parts list Figure 70)

1шт.

29

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

30

92-6

LOCK WASHER,3/8"

2шт.

31

25-106

NUT,3/8"-16, G5

Hex

2шт.

32

222-851

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT, Fem

Male

3шт.

33

D45796

TUBE - brake master cylinder to brake lock

1шт.

34

D45182

SPARE PART MICO LOCK - brake locking (Parts list Figure 70)

1шт.

35

D45798

TUBE - brake lock to relief valve

1шт.

36

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

37

D45797

CLAMP - tube

2шт.

38

92-6

LOCK WASHER,3/8"

2шт.

39

25-106

NUT,3/8"-16, G5

Hex

2шт.

40

222-904

CONNECTOR - male, straight

2шт.

41

D45165

SPARE PART RELIEF, brake system (1500 P.S.I.) Parts list Figure 74

1шт.

42

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

43

92-6

LOCK WASHER,3/8"

2шт.

44

25-106

NUT,3/8"-16, G5

Hex

2шт.

45

D45800

SPARE PART Relief valve to brake (Used befor tractor S/N 5770)

1шт.

45a

D48317

SPARE PART Relief valve to tee (Used on tractor S/N 5770 and after)

1шт.

45b

222-735

TEE - 1/4" JIC (Used on tractor S/N 5770 and after)

1шт.

45c

222-1000

NUT

Inverted flare (Used on tractor S/N 5770 and after)

1шт.

45d

221-523

CAP

Pipe, 1/4" NPT (Used on tractor S/N 5770 and after with single brake head)

1шт.

45e

D48316

SPARE PART To RH brake head (Used on tractor S/N 5770 and after)

1шт.

45f

D48327

TUBE - to LH brake head (Used on tractor S/N 5770 and after with dual brake heads)

1шт.

46

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

47

D45802

CLAMP - tube

2шт.

48

92-6

LOCK WASHER,3/8"

2шт.

49

25-106

NUT,3/8"-16, G5

Hex

2шт.

50

D45169

SPARE PART HEAD - drive shaft, skidder (Disc type) Parts list Figure 74

1-2шт.

51

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS - 1/2"-28 NF x 1-3/4"

4-8шт.

52

92-8

LOCK WASHER,1/2"

4-8шт.

53

222-979

ELBOW - male, 90 degrees

1шт.

54

D45801

TUBE - relief valve to master cylinder

1шт.

55

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

Male

1шт.
