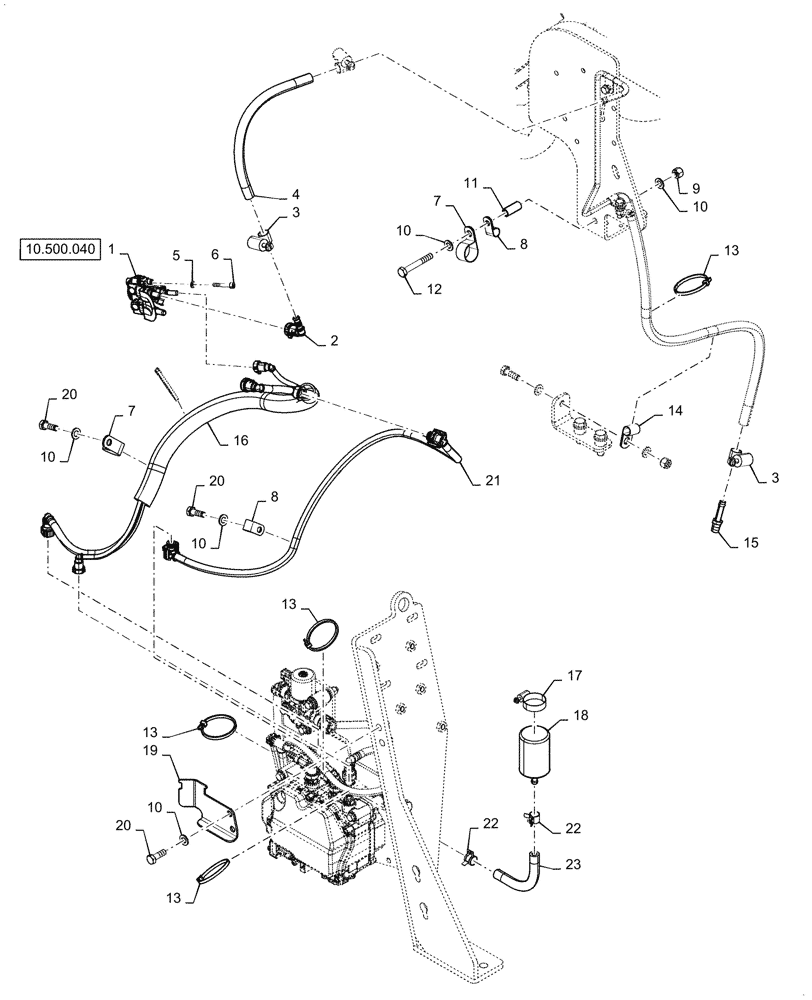

Запчасти Case 921G (10.500.010[02]) - DEF TANK AND LINES INSTALLATION (10) - ENGINE

1

47506932

INJECTOR, EMISSIONS

Emissions

1шт.

2

47405903

FITTING

1шт.

3

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

4шт.

4

47601712

HOSE

Coolant

1шт.

5

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

6

120162

HEX SOC SCREW,M6 x 35mm, Cl 8.8

3шт.

7

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

2шт.

8

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

2шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

11

L126936

SPACER

1шт.

12

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

1шт.

13

L11541

CABLE TIE,203.2mm L, Nylon

5шт.

14

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

15

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

1шт.

16

47581990

HOSE

Def, SM to DM

1шт.

17

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

1шт.

18

47437399

FUEL FILTER

Fuel Tank Vent

1шт.

19

47647833

BRACKET

Filter Mount

1шт.

20

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

21

84606228

HOSE

Coolant

1шт.

22

87584302

CLAMP,16mm - 19mm, Spring

2шт.

23

84323524

HOSE

Heater

1шт.
