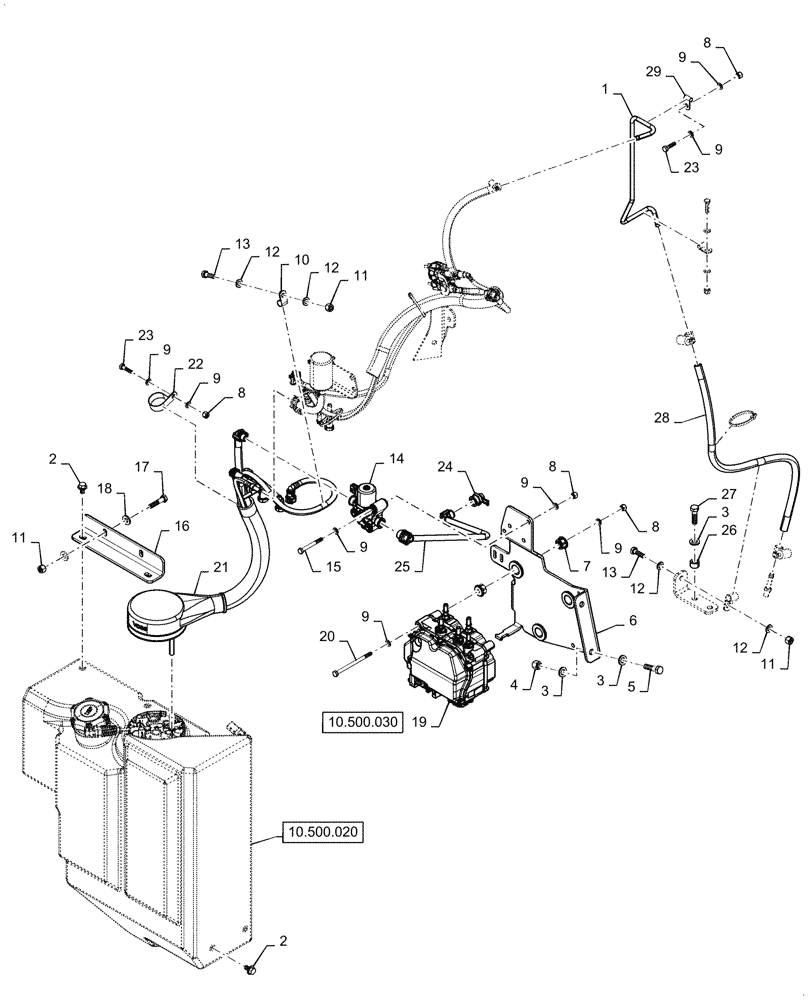

Запчасти Case 921G (10.500.010[01]) - DEF TANK AND LINES INSTALLATION (10) - ENGINE

1

47404908

TUBE

Coolant Return

1шт.

2

86531147

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

4шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

4

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

5

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

6

47491588

BRACKET

Supply Module

1шт.

7

2855150

INSULATOR BLOCK

6шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

9шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

18шт.

10

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

13

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

14

84466547

HEATER VALVE

24V

1шт.

15

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

3шт.

16

84299672

BRACKET

Tank Hold

1шт.

17

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

18

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

19

47565936

MODULE

Electronic Control Unit, Denox Supply

1шт.

20

827-8120

BOLT,Hex, M8 x 1.25 x 120mm, Cl 10.9

3шт.

21

47646628

HOSE

Tank to Sm

1шт.

22

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

1шт.

23

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

3шт.

24

84345040

ADAPTER

246 NG 12 to M16 x 1.5

1шт.

25

47603472

HOSE

Coolant, Engine to Valve

1шт.

26

D44696

BUSHING

2шт.

27

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

3шт.

28

47601711

HOSE

Coolant

1шт.

29

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

2шт.
